HANDLE SWITCH (MODEL L/M/N/P/R)

VS1400GLP INTRUDER 1990 (L) USA (E03)

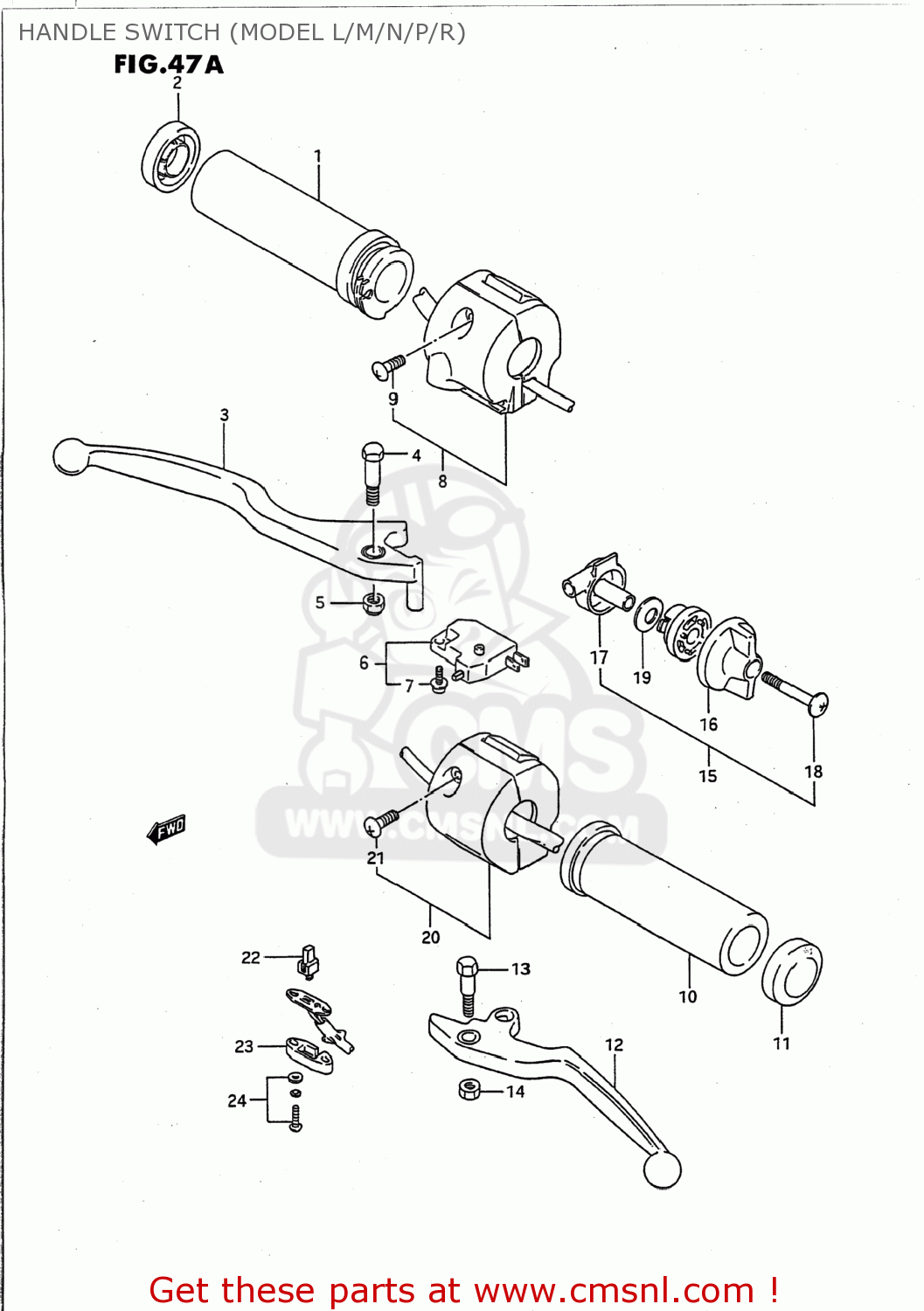

Handle switch (model l/m/n/p/r) diagram VS1400GLP INTRUDER 1990 (L) USA (E03)

HANDLE SWITCH (MODEL L/M/N/P/R) VS1400GLP INTRUDER 1990 (L) USA (E03)
HANDLE SWITCH (MODEL L/M/N/P/R) VS1400GLP INTRUDER 1990 (L) USA (E03)
HANDLE SWITCH (MODEL L/M/N/P/R) VS1400GLP INTRUDER 1990 (L) USA (E03)
prices are in EUR
ref
part #
description
quantity
1
5711038A02
ref: 1
GRIP,THROTTLE
5711038A02
€ 32.00
2
5721638A00
ref: 2
CAP,GRIP END
5721638A00
€ 6.50
3
5742038B10
ref: 3
LEVER,BRAKE
5742038B10
€ 43.50
4-1
5743138A00
ref: 4-1
57431-38A10
BOLT,LEVER
€ 14.50
4-2
5743138A10
ref: 4-2
BOLT,LEVER SET
5743138A10
€ 14.50
5
0831921068
ref: 5
08319-2106A
NUT 6MM
0831921068
€ 2.00
6
5746017C00
ref: 6
57460-17C01
SWITCH ASSEMBLY,STOP
5746017C00
€ 32.50
7
5746517C00
ref: 7
SCREW
5746517C00
€ 1.50
8
3720038B80
ref: 8
SWITCH ASSY,HANDLE,R
3720038B80
€ 172.50
9
3739138A00
ref: 9
02112-05167
SCREW
€ 2.50
10
5721038A02
ref: 10
GRIP,L
5721038A02
€ 44.00
11
5721638A00
ref: 11
CAP,GRIP END
5721638A00
€ 6.50
12-1
5762038B00
ref: 12-1
57621-38B01
LEVER,CLUTCH
5762038B00
€ 50.00
12-2
5762138B01
ref: 12-2
LEVER,CLUTCH
5762138B01
€ 50.00
13-1
5743138A00
ref: 13-1
57431-38A10
BOLT,LEVER
€ 14.50
13-2
5743138A10
ref: 13-2
BOLT,LEVER SET
5743138A10
€ 14.50
14
0831921068
ref: 14
08319-2106A
NUT 6MM
0831921068
€ 2.00
15
5870038B00
ref: 15
58700-38B02
LEVER ASSEMBLY,STARTER
5870038B00
€ 59.50
16
5872138B00
ref: 16
58700-38B02
CLAMP,REAR BRAKE CABLE
€ 59.50
17
5872338B00
ref: 17
BODY,STARTER
€ 12.50
18
5872538B00
ref: 18
SCREW,STARTER LEVER(6X45)
5872538B00
€ 6.50
19
5872202310
ref: 19
WASHER
5872202310
€ 2.50
20
3740038B80
ref: 20
SWITCH ASSY,HANDLE,L
3740038B80
€ 240.00
21
3739138A00
ref: 21
02112-05167
SCREW
€ 2.50
22
5746518601
ref: 22
CONTACT,SWITCH
5746518601
€ 4.50
23
5748138A10
ref: 23
COVER,CLUTCH SWITCH
5748138A10
€ 14.00
24
5748438A00
ref: 24
SCREW
5748438A00
€ 5.50
