CLUTCH
VS1400GLP INTRUDER 1994 (R) USA (E03)

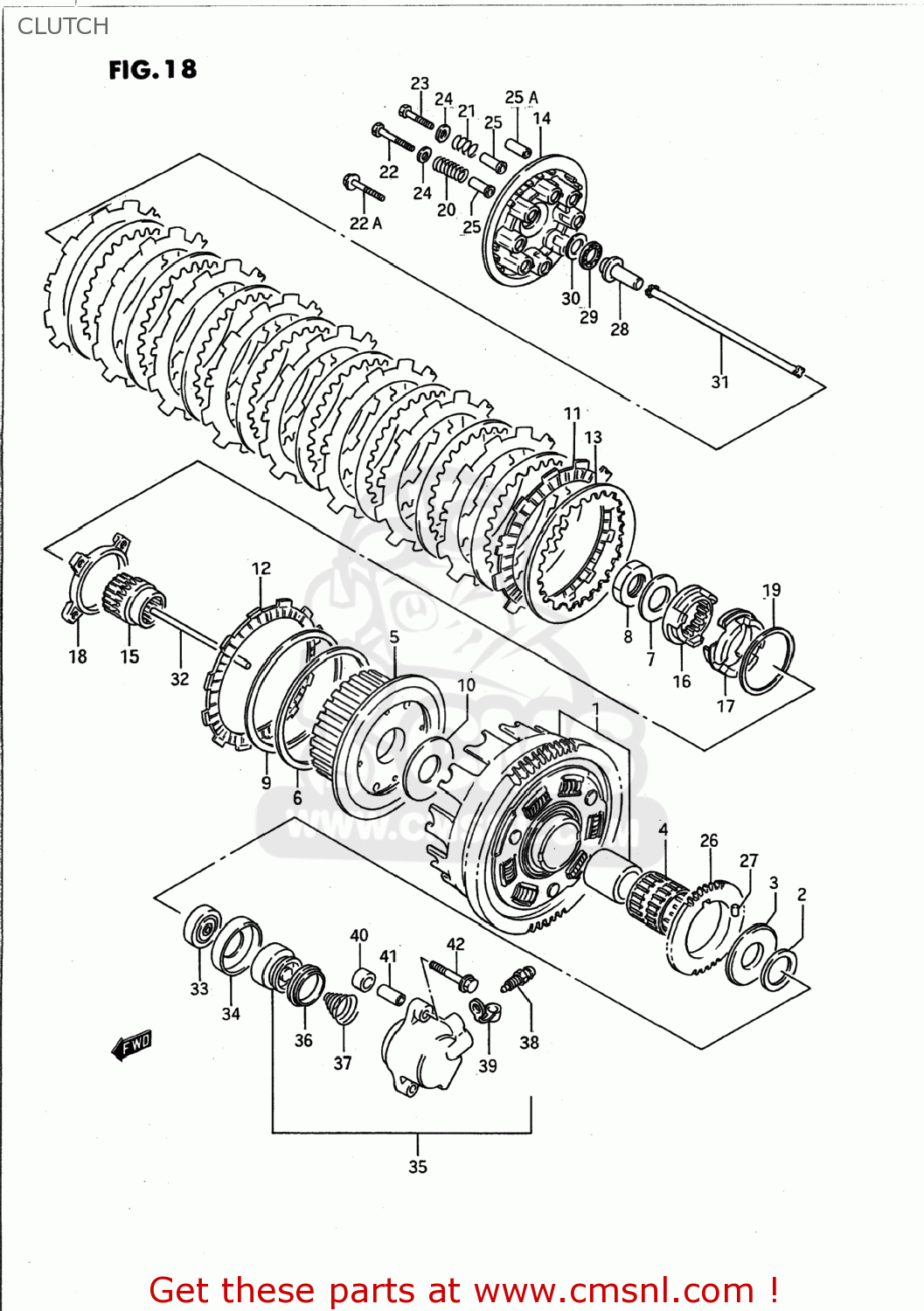

Clutch diagram VS1400GLP INTRUDER 1994 (R) USA (E03)
CLUTCH VS1400GLP INTRUDER 1994 (R) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
2120038820
ref: 1-1
21200-38823
GEAR ASSEMBLY,PRIMARY DRIVE
€ 468.00
1-2
2120038821
ref: 1-2
21200-38823
GEAR ASSEMBLY,PRIMARY DRIVE
€ 468.00
2
0916025066
ref: 2
WASHER(25X38X2.5)
€ 6.00
3
0916025067
ref: 3
WASHER(25X54X2.5)
€ 9.00
4
0926335017
ref: 4
BEARING(35X40X35.8)
€ 36.50
5
2141038B00
ref: 5
HUB,CLUTCH SLEEVE
€ 136.00
6
2147137400
ref: 6
SEAT,WAVE WASHER(T:1.4)
€ 8.00
7
0916422008
ref: 7
WASHER
€ 8.00
8
0914022011
ref: 8
NUT
€ 9.00
9
0916400004
ref: 9
WASHER
€ 9.00
10
0916025065
ref: 10
WASHER(25X60X2.5)
€ 15.50
11
2144107A02
ref: 11
21441-12D01
PLATE,CLUTCH DRIVE (NAS)
€ 16.50
12
2144237401
ref: 12
PLATE,CLUTCH DRIVE(T:3.5) (NAS)
€ 11.50
13
2145105A00
ref: 13
PLATE,CLUTCH DRIVEN (NAS)
€ 9.00
14
2146238B00
ref: 14
DISC,CLUTCH PRESSURE
€ 51.50
15
2162138B00
ref: 15
SPACER,CLUTCH SLEEVE HUB
€ 70.00
16
2611138B02
ref: 16
26111-38B03
CAM,CLUTCH NO.1
€ 54.50
17
2611238B01
ref: 17
26112-38B02
CAM,CLUTCH NO.2
€ 70.50
18
2161338B00
ref: 18
21613-38B01
SLIDER,CLUTCH SPRING
€ 65.50
19
0916054002
ref: 19
WASHER(54X62X1)
€ 9.50
20
0944014021
ref: 20
SPRING
€ 5.00
21
0944014022
ref: 21
SPRING
€ 5.00
22
0110706405
ref: 22
01500-0640B
BOLT
€ 2.00
22A
0911606135
ref: 22A
BOLT(6X40)
€ 3.00
23-1
0110706355
ref: 23-1
01500-0635A
BOLT 6X35
€ 2.50
23-2
0150006353
ref: 23-2
01500-0635A
BOLT
€ 2.50
24-1
0916006092
ref: 24-1
09160-06128
WASHER
€ 2.50
24-2
0916006092
ref: 24-2
09160-06128
WASHER
€ 2.50
25A
0918006192
ref: 25A
09180-06276
SPACER (6,1X9X24.1)
€ 6.50
25-1
0918006177
ref: 25-1
SPACER(6.4X10X22)
€ 7.50
25-2
0918006177
ref: 25-2
SPACER(6.4X10X22)
€ 7.50
26
1632138B00
ref: 26
GEAR,OIL PUMP DRIVE
€ 62.50
27
0926106002
ref: 27
PIN(6X6)
€ 1.50
28
2312138B00
ref: 28
PIECE,CLUTCH PUSH
€ 25.00
29
0926315003
ref: 29
BEARING(15X28X2)
€ 7.00
30
0916015045
ref: 30
WASHER(15.5X28X1)
€ 4.00
31
2311038B00
ref: 31
ROD,CLUTCH PUSH,R
€ 19.00
32
2311124A01
ref: 32
ROD,CLUTCH PUSH,L
€ 15.00
33
0928506017
ref: 33
SEAL,OIL(6X34X11)
€ 11.00
34
2311738A00
ref: 34
RETAINER,CL PUSH ROD OIL SEAL
€ 6.00
35
2316038B00
ref: 35
CYLINDER,CLUTCH RELEASE
€ 122.50
36
2316306B00
ref: 36
CUP
€ 5.50
37
2316405A00
ref: 37
SPRING,CLUTCH CYLINDER
€ 3.50
38
5912101A00
ref: 38
BLEEDER
€ 8.50
39
5912201A00
ref: 39
CAP,BLEEDER
€ 4.50
40
0918009019
ref: 40
09180-08208
SPACER(9X16X11)
€ 7.50
41
0920609011
ref: 41
PIN(6.4X9X23)
€ 7.50
42-1
0151706406
ref: 42-1
01550-0640A
BOLT
€ 2.00
42-2
0155006403
ref: 42-2
01550-0640A
BOLT
€ 2.00
