CYLINDER

VS1400GLP INTRUDER 1994 (R) USA (E03)

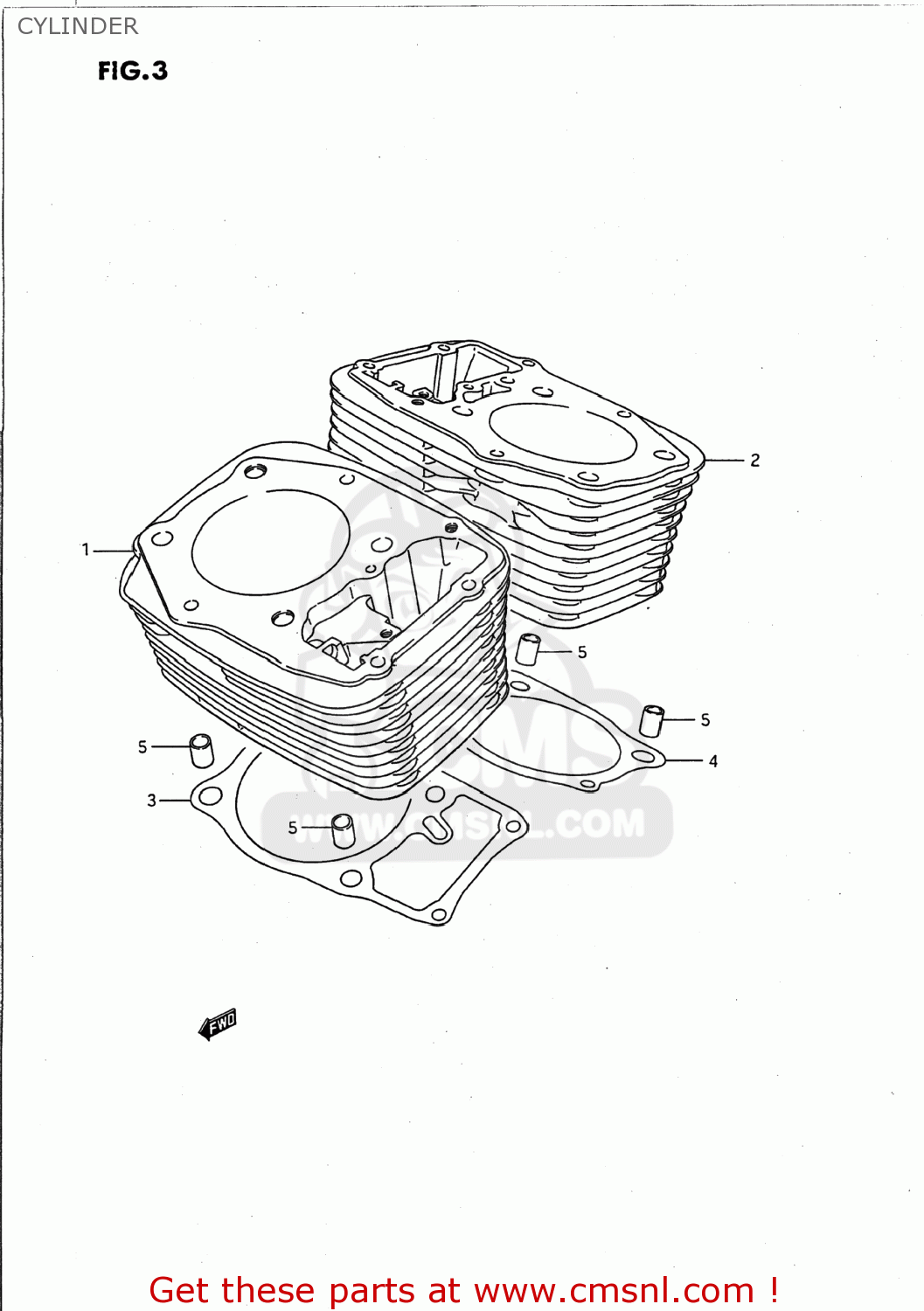

Cylinder diagram VS1400GLP INTRUDER 1994 (R) USA (E03)

prices are in EUR

ref

part #

description

quantity

1-1

1121038B01
ref: 1-1
11210-38B02

CYLINDER

€ 666.50

1-2

1121038B02
ref: 1-2

CYLINDER,FRONT

€ 666.50

2-1

1122038B01
ref: 2-1
11220-38B50-0F0

CYLINDER

€ 563.50

2-2

1122038B02
ref: 2-2
11220-38B50-0F0

CYLINDER,REAR

€ 563.50

3-1

1124138B00
ref: 3-1
11241-38B00-H17

GASKET,CYLINDER (NAS)

€ 26.00

3-2

1124138B00H17
ref: 3-2

GASKET,CYLINDER FR (NAS)

€ 26.00

4-1

1124238B00
ref: 4-1
11242-38B00-H17

GASKET,CYLINDER (NAS)

€ 23.50

4-2

1124238B00H17
ref: 4-2

GASKET,CYLINDER RR (NAS)

€ 23.50

5-1

0920613001
ref: 5-1
04211-13189

PIN

€ 2.50

5-2

0421113189
ref: 5-2

PIN

€ 2.50
