STARTER CLUTCH

VS1400GLP INTRUDER 1997 (V) USA (E03)

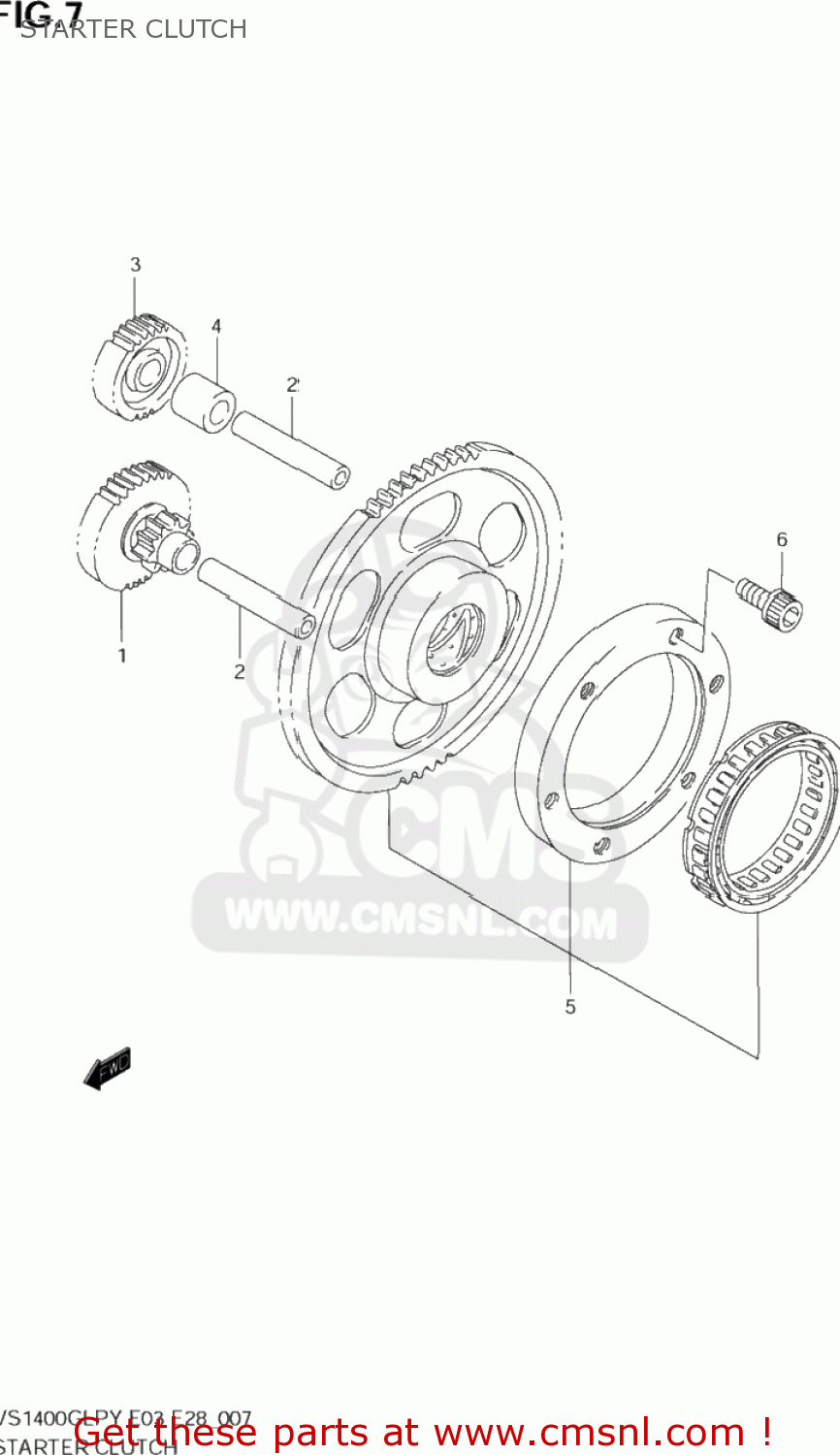

Starter clutch diagram VS1400GLP INTRUDER 1997 (V) USA (E03)

STARTER CLUTCH VS1400GLP INTRUDER 1997 (V) USA (E03)

STARTER CLUTCH VS1400GLP INTRUDER 1997 (V) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

1261138B01
ref: 1

GEAR,STARTER IDLE NO.1

€ 84.00

2

0920611015
ref: 2

PIN(7X11X55)

€ 9.00

3

1261238B02
ref: 3

GEAR,STARTER IDLE NO.2

€ 57.50

4

0918011005
ref: 4

SPACER(11.2X17.5X22)

€ 7.50

5

1260038840
ref: 5

CLUTCH SET,STARTER

€ 363.00

6

0713008163
ref: 6
07130-0816A

BOLT

€ 3.00
