CARBURETOR (REAR:E18)
VS600GLF 1996 (T) FRANCE (E04)

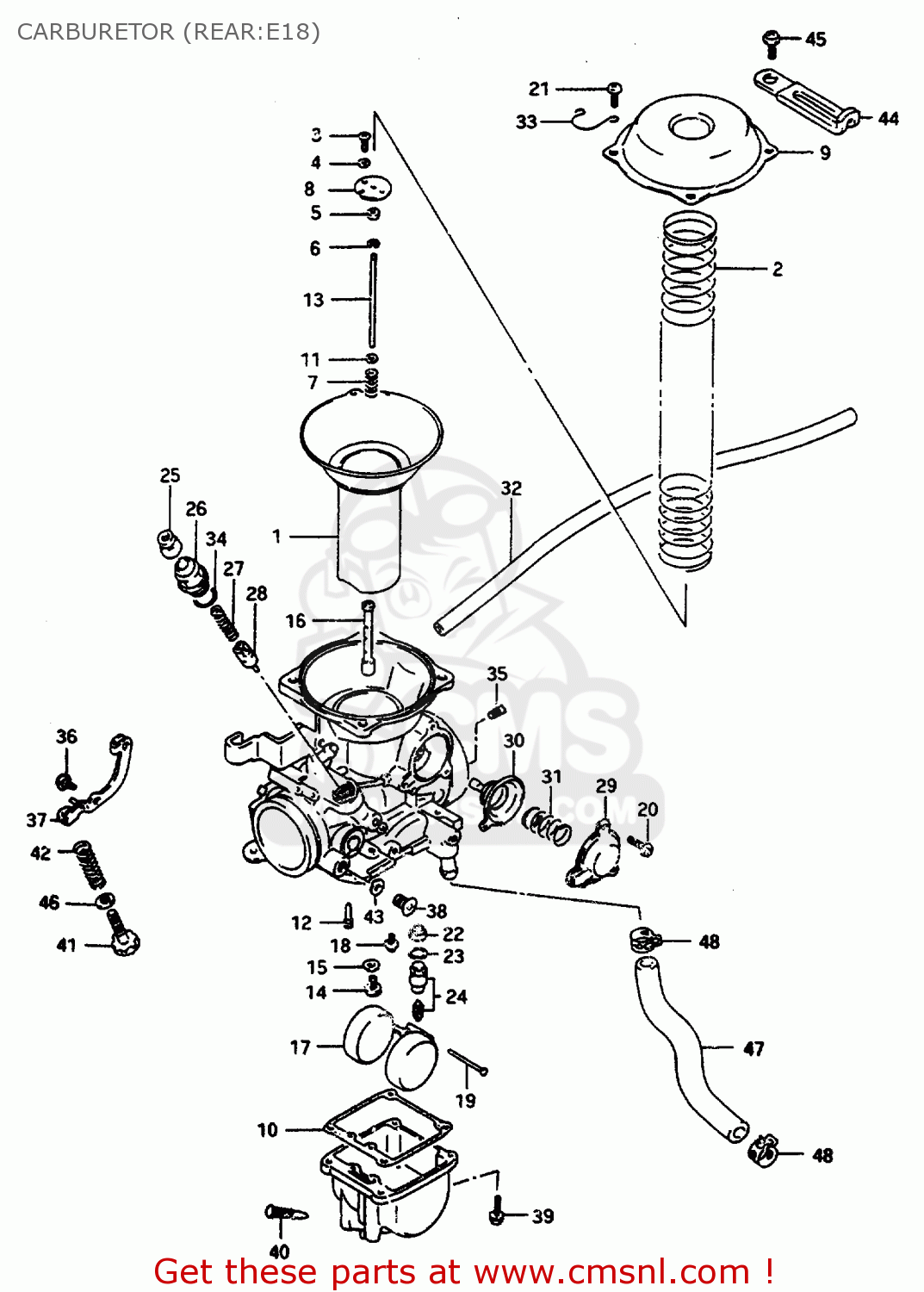

Carburetor (rear:e18) diagram VS600GLF 1996 (T) FRANCE (E04)
CARBURETOR (REAR:E18) VS600GLF 1996 (T) FRANCE (E04)
×
prices are in EUR
ref
part #
description
quantity
0
1322039E60
ref: 0
CARBURETOR ASSY, REAR
€ 0.00
1
1350039E10
ref: 1
DIAPHRAGM ASSY
€ 0.00
2
1350338B00
ref: 2
SPRING,DIAPHRAGM
€ 12.00
3
0211203063
ref: 3
SCREW
€ 2.00
4
0832121033
ref: 4
WASHER,LOCK
€ 1.50
5
1338747010
ref: 5
RING
€ 7.50
6
1339410010
ref: 6
CLIP
€ 4.50
7
1338844030
ref: 7
SPRING
€ 6.00
8
1338937400
ref: 8
PLATE
€ 5.50
9
1350238A10
ref: 9
COVER,DIAPHRAGM
€ 37.50
10
1325138A10
ref: 10
GASKET,FLOAT CHAMBER (NAS)
€ 8.00
11
1338244030
ref: 11
WASHER
€ 3.50
12
0949230010
ref: 12
JET,PILOT(30)
€ 13.00
13
1338345C60
ref: 13
NEEDLE,JET
€ 13.00
14
0949121016
ref: 14
JET,MAIN(105)
€ 9.50
15
1333244080
ref: 15
WASHER,NEEDLE NOZZLE
€ 2.50
16
0949400502
ref: 16
JET,NEEDLE
€ 18.00
17
1325223010
ref: 17
FLOAT
€ 19.00
18
1360205A10
ref: 18
SCREW
€ 4.00
19
1325492311
ref: 19
PIN,FLOAT
€ 2.00
20
0211204107
ref: 20
SCREW
€ 2.00
21
0211204083
ref: 21
SCREW
€ 2.00
22
1337684110
ref: 22
FILTER
€ 6.50
23
1337444080
ref: 23
O-RING,NEEDLE VALVE
€ 6.00
24
1337039A00
ref: 24
VALVE ASSY,NEEDLE
€ 67.50
25
1368104010
ref: 25
CAP
€ 3.00
26
1341843410
ref: 26
HOLDER,GUIDE
€ 6.50
27
1341722010
ref: 27
SPRING
€ 3.00
28
1341101400
ref: 28
PLUNGER,STARTER
€ 11.50
29
1348438A10
ref: 29
COVER
€ 16.00
30
1348005A10
ref: 30
DIAPHRAGM ASSY
€ 54.50
31
1348145C10
ref: 31
SPRING
€ 5.50
32
0935250823600
ref: 32
L:600 185
HOSE(5X8.2X600)
€ 13.00
33
1369202500
ref: 33
CLIP
€ 7.00
34
1327847090
ref: 34
O RING
€ 2.00
35
0949260012
ref: 35
JET,AIR(60)
€ 7.50
36
1360205A30
ref: 36
SCREW
€ 4.50
37
1355438A10
ref: 37
LEVER,ASSY
€ 25.00
38
0211205063
ref: 38
SCREW
€ 2.00
39
1360104148
ref: 39
SCREW
€ 2.50
40
1324713A00
ref: 40
SCREW,DRAIN
€ 5.50
41
1326739E50
ref: 41
ADJUSTER
€ 13.00
42
1327193011
ref: 42
SPRING
€ 4.50
43
1352346110
ref: 43
GASKET,DRAIN PLUG (NAS)
€ 3.00
44
0940406431
ref: 44
CLAMP(L:65)
€ 2.50
45
0214204083
ref: 45
SCREW
€ 1.50
46
1327737100
ref: 46
WASHER
€ 2.00
47
1368338E00
ref: 47
HOSE,FUEL PUMP & CARBURETOR
€ 21.50
48
0940111408
ref: 48
CLIP
€ 2.50
43
1360104148
ref: 43
SCREW
€ 2.50
44
1324713A00
ref: 44
SCREW,DRAIN
€ 5.50
45
1326739E50
ref: 45
ADJUSTER
€ 13.00
46
1327193011
ref: 46
SPRING
€ 4.50
47
1352346110
ref: 47
GASKET,DRAIN PLUG (NAS)
€ 3.00
48
0940406433
ref: 48
CLAMP(L:80)
€ 3.00
49
0214204083
ref: 49
SCREW
€ 1.50
50
1327737100
ref: 50
WASHER
€ 2.00
51
1368338E00
ref: 51
HOSE,FUEL PUMP & CARBURETOR
€ 21.50
52
0940111408
ref: 52
CLIP
€ 2.50
