CYLINDER
VS600GLF 1996 (T) FRANCE (E04)

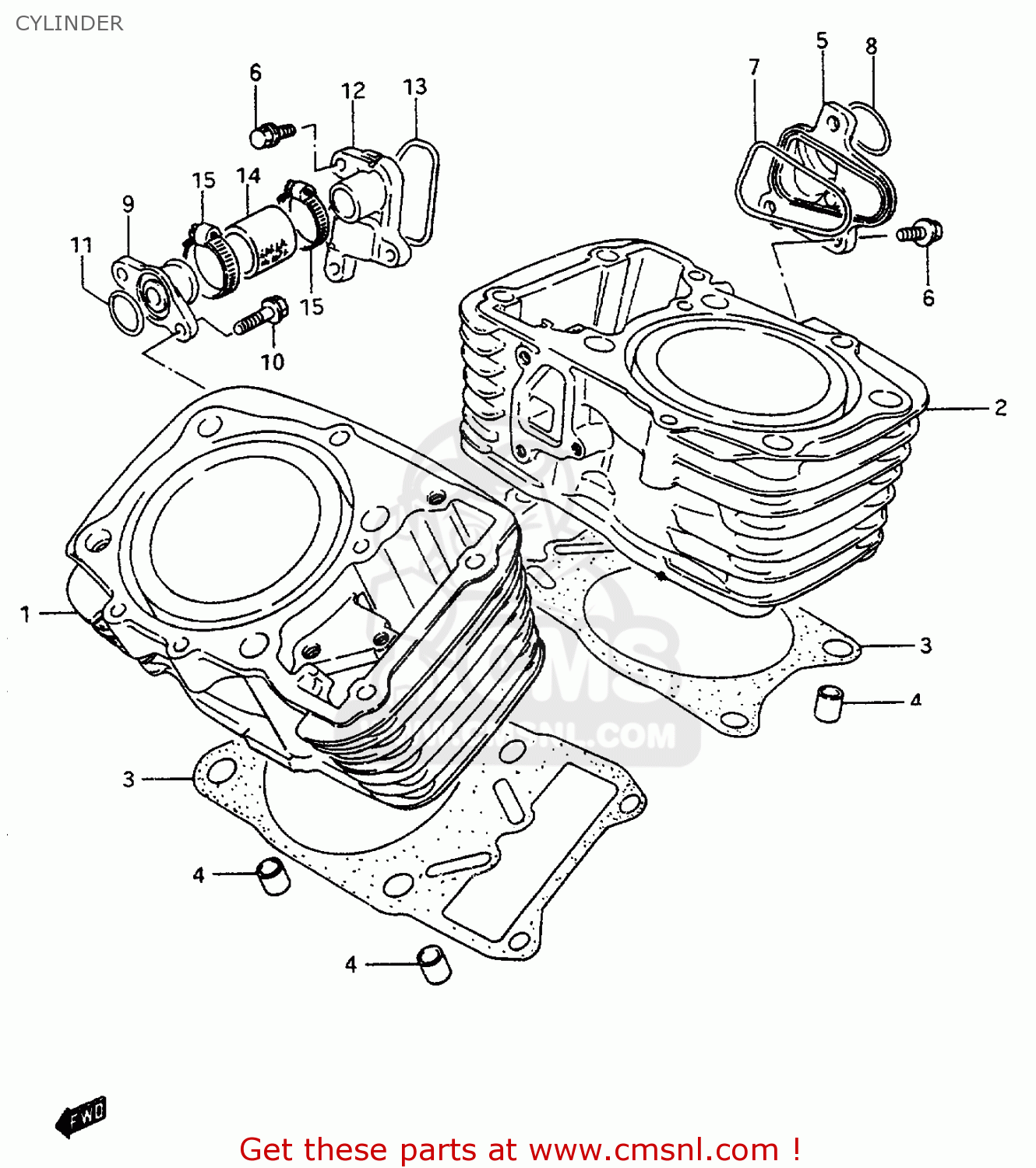

Cylinder diagram VS600GLF 1996 (T) FRANCE (E04)
CYLINDER VS600GLF 1996 (T) FRANCE (E04)
×
prices are in EUR
ref
part #
description
quantity
1
1121039E50
ref: 1
CYLINDER,FR
€ 392.50
2
1122039E50
ref: 2
CYLINDER, REAR
€ 387.00
3-1
1124145C20
ref: 3-1
GASKET,CYLINDER (NAS)
€ 16.50
3-2
1124145C10
ref: 3-2
E18
GASKET,CYLINDER
€ 21.50
4
0421113189
ref: 4
PIN
€ 2.50
5
1123745C10
ref: 5
CHAMBER,WATER,INLET
€ 28.00
6
0154706207
ref: 6
BOLT
€ 2.50
7
1124738A00
ref: 7
O RING,INLET WATER CHAMBER
€ 3.00
8
0928024007
ref: 8
O RING(D:2.3,ID:24.4)
€ 2.00
9
1123545C10
ref: 9
UNION,WATER INLET
€ 16.00
10
0154706167
ref: 10
BOLT
€ 2.00
11
0928016005
ref: 11
O RING(D:2.4,ID:15.8)
€ 1.50
12
1123645C10
ref: 12
CHAMBER,WATER OUTLET
€ 26.50
13
1124638A00
ref: 13
O RING,OUTLET WATER CHAMBER
€ 4.50
14
1785328C20
ref: 14
HOSE,RADIATOR JOINT NO.1
€ 17.50
15
0940228511
ref: 15
CLAMP
€ 8.50
