AIR CLEANER (REAR)

VS750GLF 1987 (H) (E02 E04 E15 E17 E18 E21 E22 E25)

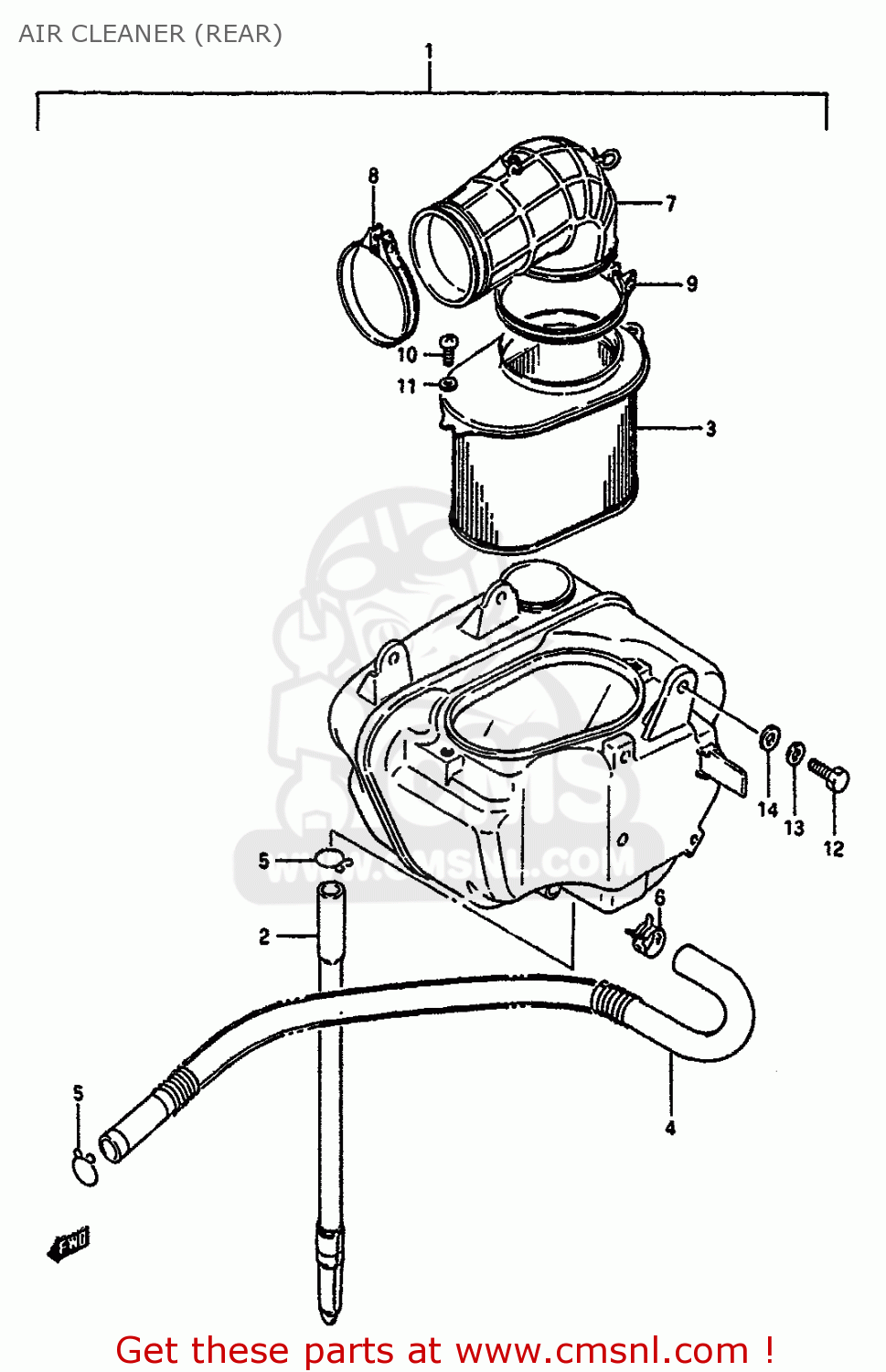

Air cleaner (rear) diagram VS750GLF 1987 (H) (E02 E04 E15 E17 E18 E21 E22 E25)

AIR CLEANER (REAR) VS750GLF 1987 (H) (E02 E04 E15 E17 E18 E21 E22 E25)
AIR CLEANER (REAR) VS750GLF 1987 (H) (E02 E04 E15 E17 E18 E21 E22 E25)
AIR CLEANER (REAR) VS750GLF 1987 (H) (E02 E04 E15 E17 E18 E21 E22 E25)
prices are in EUR
ref
part #
description
quantity
1-1
1370038A50
ref: 1-1
MODEL F
CLEANER ASSEMBLY,AIR
€ 160.50
1-2
1370038A60
ref: 1-2
MODEL G/H/J/K/L/M
CLEANER,AIR,RR
€ 188.50
2
1387011293
ref: 2
DRAIN TUBE
€ 13.50
3
1378038A50
ref: 3
FILTER,AIR CLEANER
1378038A50
€ 33.00
4
1385038A50
ref: 4
TUBE SET,BREATHER
1385038A50
€ 62.00
5
0940114301
ref: 5
CLIP
0940114301
€ 2.00
6
1382443400
ref: 6
CLIP
€ 2.00
7
1388138A50
ref: 7
TUBE,AIR CLEANER OUTLET
1388138A50
€ 32.00
8
0940258208
ref: 8
CLAMP
0940258208
€ 5.50
9
0940278207
ref: 9
CLAMP
0940278207
€ 7.50
10
0211205085
ref: 10
SCREW
€ 2.00
11
0832121055
ref: 11
WASHER,LOCK
0832121055
€ 3.00
12
0110706207
ref: 12
BOLT
0110706207
€ 2.00
13
0832121067
ref: 13
WASHER,LOCK
0832121067
€ 2.50
14
0916006019
ref: 14
WASHER(6.5X16X1.2)
0916006019
€ 1.50
