PROPELLER SHAFT-FINAL DRIVE GEAR

VS750GLF 1987 (H) (E02 E04 E15 E17 E18 E21 E22 E25)

Propeller shaft-final drive gear diagram VS750GLF 1987 (H) (E02 E04 E15 E17 E18 E21 E22 E25)

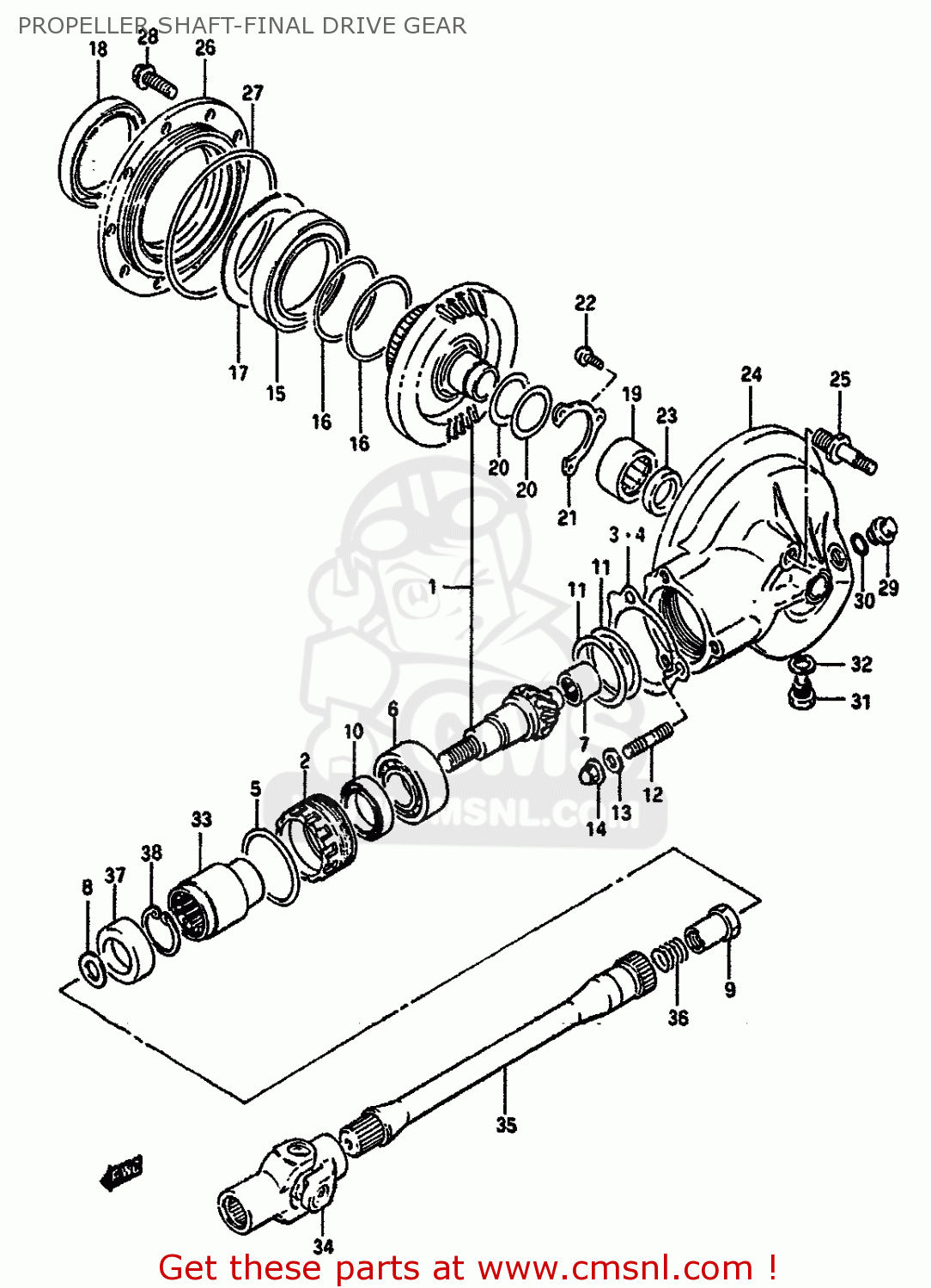

PROPELLER SHAFT-FINAL DRIVE GEAR VS750GLF 1987 (H) (E02 E04 E15 E17 E18 E21 E22 E25)

PROPELLER SHAFT-FINAL DRIVE GEAR VS750GLF 1987 (H) (E02 E04 E15 E17 E18 E21 E22 E25)

prices are in EUR

ref

part #

description

quantity

0

2730038831
ref: 0
MODEL F/G/H/J/K

2730038831

0

2730038834
ref: 0
MODEL L/M

2730038834

1

2730038812
ref: 1

2730038812

2

2731238A00
ref: 2

2731238A00

3

2731338A00
ref: 3

2731338A00

4

2731338A10
ref: 4

2731338A10

5

0928062002
ref: 5

0928062002

6

0926730005
ref: 6

0926730005

7

0926317028
ref: 7

0926317028

8

0916016029
ref: 8

0916016029

9

0915916010
ref: 9

0915916010

10

0928338009
ref: 10

0928338009

11-1

2744538A00030
ref: 11-1

2744538A00030

11-2

2744538A00035
ref: 11-2

2744538A00035

11-3

2744538A00040
ref: 11-3

2744538A00040

11-4

2744538A00050
ref: 11-4

2744538A00050

11-5

2744538A00060
ref: 11-5

2744538A00060

12

0910810095
ref: 12

0910810095

13

0916410008
ref: 13

0916410008

14

0915910026
ref: 14

0915910026

15

0926270001
ref: 15

0926270001

16-1

2732734200
ref: 16-1

2732734200

16-2

2732734210
ref: 16-2

2732734210

16-3

2732734220
ref: 16-3

2732734220

16-4

2732734230
ref: 16-4

2732734230

17

2732834200
ref: 17

2732834200

18

0928970001
ref: 18

0928970001

19

0926332007
ref: 19

0926332007

20-1

2732634201
ref: 20-1

2732634201

20-2

2732634211
ref: 20-2

2732634211

20-3

2732634221
ref: 20-3

2732634221

20-4

2732634231
ref: 20-4

2732634231

20-5

2732634241
ref: 20-5

2732634241

20-6

2732634201140
ref: 20-6

2732634201140

20-7

2732634201145
ref: 20-7

2732634201145

20-8

2732634201150
ref: 20-8

2732634201150

21

2732934200
ref: 21

2732934200

22

0211206128
ref: 22

0211206128

23

0928330028
ref: 23

0928330028

24-1

2745038A00
ref: 24-1
MODEL F/G,-27450-38A

2745038A00

24-2

2745038A12
ref: 24-2
MODEL H/J/K/L/M

2745038A12

25

2748138A01
ref: 25

2748138A01

26

2746007A01
ref: 26

2746007A01

27

0928000015
ref: 27

0928000015

28

0151708258
ref: 28

0151708258

29

0924718001
ref: 29

0924718001

30

0928018004
ref: 30

0928018004

31

0924714019
ref: 31

0924714019

32

0916814004
ref: 32

0916814004

33

2717238A00
ref: 33

2717238A00

34-1

2710038A00
ref: 34-1
MODEL F

2710038A00

34-2

2710038A50
ref: 34-2
MODEL G/H/J/K/L/M

2710038A50

35

2715138A01
ref: 35

2715138A01

36

0944018019
ref: 36

0944018019

37

0928330051
ref: 37

0928330051

38

0938140003
ref: 38

0938140003
