HEADLAMP

VS750GLP 1986 (G) (E02 E04 E15 E16 E17 E18 E21 E22 E25 E34 E39)

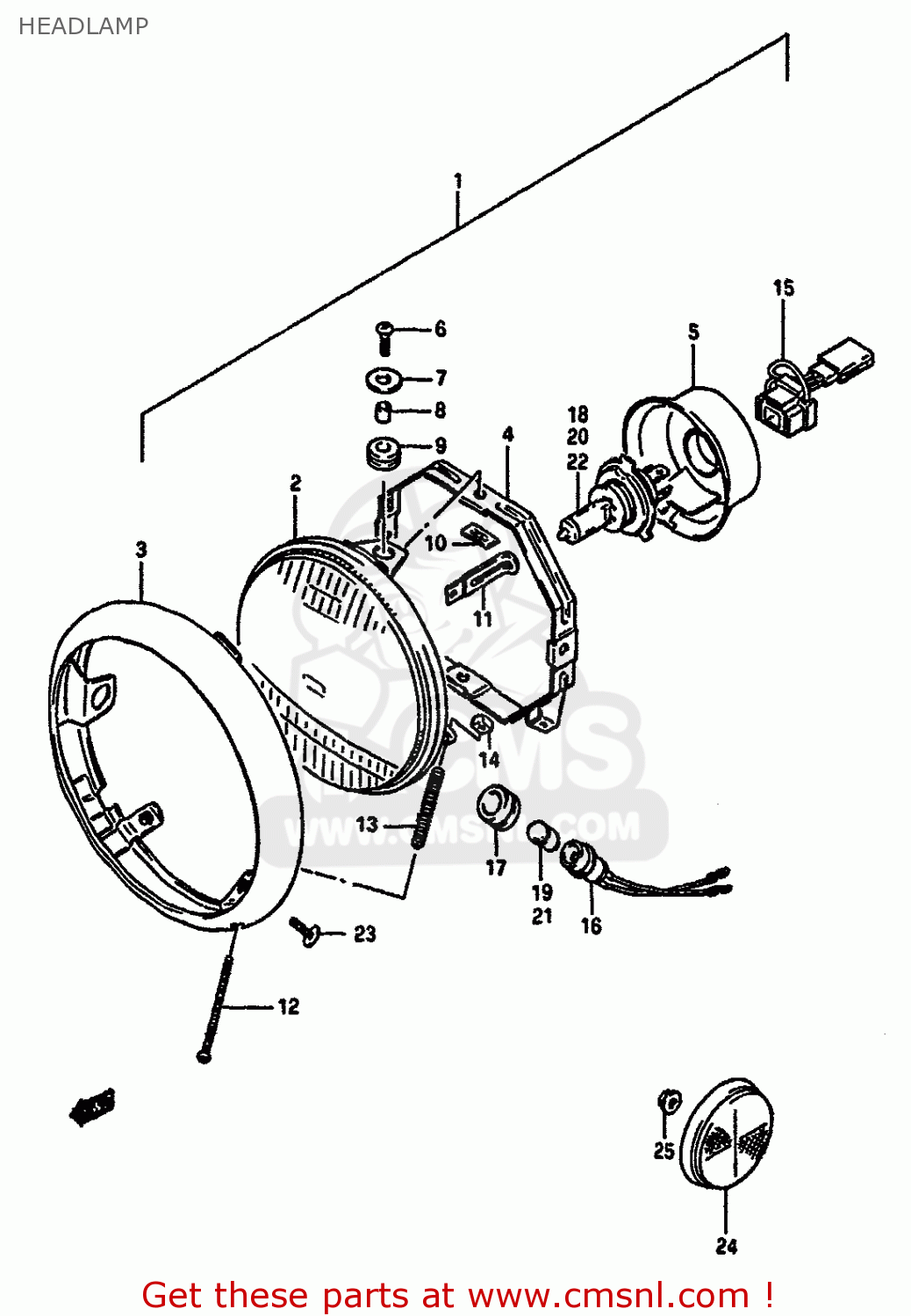

Headlamp diagram VS750GLP 1986 (G) (E02 E04 E15 E16 E17 E18 E21 E22 E25 E34 E39)

HEADLAMP VS750GLP 1986 (G) (E02 E04 E15 E16 E17 E18 E21 E22 E25 E34 E39)

HEADLAMP VS750GLP 1986 (G) (E02 E04 E15 E16 E17 E18 E21 E22 E25 E34 E39)

prices are in EUR

ref

part #

description

quantity

1-1

3510038A00
ref: 1-1
E1,E2,E24,E75

HEADLAMP ASSY

€ 215.50

1-2

3510038A50999
ref: 1-2
E4,E15,E16,E17,E18,E

HEADLAMP ASSY

€ 216.50

2-1

3512138A00
ref: 2-1
E1,E2,E24,E75

LAMP UNIT

€ 126.50

2-2

3512138A40
ref: 2-2
E4,E15,E16,E17,E18,E

UNIT LAMP

€ 126.50

3

3511138A00
ref: 3

RIM

€ 27.00

4

3513038A00
ref: 4

RING,MOUNTING

€ 15.00

5

3517338A00
ref: 5

COVER,SOCKET

€ 12.50

6-1

0912505102
ref: 6-1
FOR 35100-38A00

SCREW(5X14)

€ 2.50

6-2

0211205166
ref: 6-2
FOR 35100-38A50-999

SCREW

€ 2.00

7

3513845230
ref: 7

WASHER

€ 2.00

8

3513345230
ref: 8

SPACER

€ 2.00

9

3513945230
ref: 9

CUSHION

€ 1.50

10

3515548510
ref: 10

NUT

€ 2.00

11

0940405401
ref: 11

CLAMP

€ 2.50

12

3515149430
ref: 12

SCREW,HEADLAMP ADJUST

€ 3.00

13

3515449430
ref: 13

SPRING,HEADLAMP ADJUST

€ 2.00

14

3513545600
ref: 14

NUT

€ 3.00

15

3685338A00
ref: 15

SOCKET

€ 10.00

16

3611849320
ref: 16

SOCKET

€ 12.00

17

3611622630
ref: 17

JOINT,RUBBER

€ 5.00

18

0947112060
ref: 18
E1,E2,E24,E75

BULB(12V60/55W,H4)

€ 8.00

19

0947112001
ref: 19
E1,E2,E24,E75

BULB(12V3.4W,STANLEY,A72A)

€ 1.50

20

0947112061
ref: 20
E4 EXECUTED LOCALLY

BULB (12V, 60/55W, H4)

€ 0.00

21

0947112063
ref: 21
E4,E15,E16,E17,E18,E

BULB(12V4W)

€ 6.00

22

0947112060
ref: 22
E4,E15,E16,E17,E18,E

BULB(12V60/55W,H4)

€ 8.00

23

0912505068
ref: 23

SCREW(5X12)

€ 2.00

24

3595014A00
ref: 24
E39,E77

REFLECTOR,REFLEX FR

€ 15.00

25

0831616056
ref: 25
E39,E77

NUT

€ 2.50
