SEAT

VS750GLP 1986 (G) (E02 E04 E15 E16 E17 E18 E21 E22 E25 E34 E39)

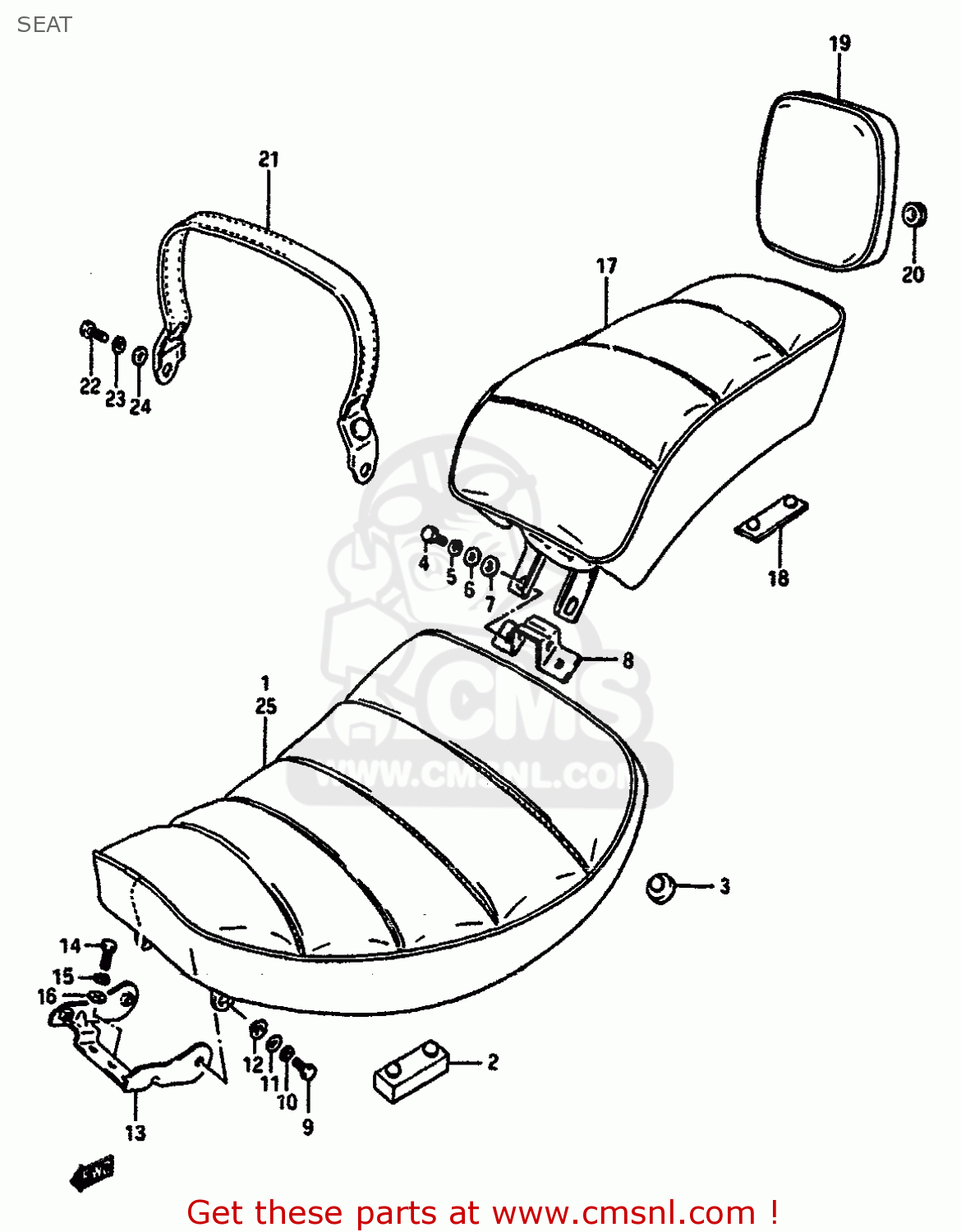

Seat diagram VS750GLP 1986 (G) (E02 E04 E15 E16 E17 E18 E21 E22 E25 E34 E39)

SEAT VS750GLP 1986 (G) (E02 E04 E15 E16 E17 E18 E21 E22 E25 E34 E39)
SEAT VS750GLP 1986 (G) (E02 E04 E15 E16 E17 E18 E21 E22 E25 E34 E39)
SEAT VS750GLP 1986 (G) (E02 E04 E15 E16 E17 E18 E21 E22 E25 E34 E39)
prices are in EUR
ref
part #
description
quantity
1-1
4510038A004HS
ref: 1-1
MODEL F/G
SEAT ASSEMBLY
€ 1,009.50
1-2
4510038A204HS
ref: 1-2
MODEL H
SEAT ASSEMBLY
€ 1,009.50
1-3
4510038A405KR
ref: 1-3
MODEL J/K/L/M
SEAT ASSEMBLY
€ 588.00
1-4
4510038A104HS
ref: 1-4
MODEL F/G/H E22
SEAT SET (BLACK)
€ 1,009.50
1-5
4510038A114HS
ref: 1-5
MODEL J/K E22
SEAT SET (BLACK)
€ 1,009.50
1-6
4510038A115KR
ref: 1-6
MODEL L/M E22
SEAT SET (BLACK)
€ 1,009.50
2
4514943500
ref: 2
CUSHION,SEAT
4514943500
€ 3.00
3
0932110012
ref: 3
CUSHION
0932110012
€ 3.00
4-1
0110706166
ref: 4-1
MODEL F/G/H/J
BOLT
€ 2.00
4-2
0117406166
ref: 4-2
MODEL K/L/M
BOLT
€ 2.00
5
0832121066
ref: 5
MODEL F/G/H/J
WASHER,LOCK
0832121066
€ 2.00
6
0832221066
ref: 6
MODEL F/G/H/J
WASHER, LOWER
0832221066
€ 2.00
7
0916906037
ref: 7
WASHER
0916906037
€ 6.50
8
4511938A00
ref: 8
PLATE,FR SEAT HOOK & RR
4511938A00
€ 7.50
9-1
0110706166
ref: 9-1
MODEL F/G/H/J
BOLT
€ 2.00
9-2
0117406166
ref: 9-2
MODEL K/L/M
BOLT
€ 2.00
10
0832121066
ref: 10
MODEL F/G/H/J
WASHER,LOCK
0832121066
€ 2.00
11
0832221066
ref: 11
MODEL F/G/H/J
WASHER, LOWER
0832221066
€ 2.00
12
0916906037
ref: 12
WASHER
0916906037
€ 6.50
13-1
4521038A01019
ref: 13-1
MODEL G/H
BRACKET,SEAT,FRONT
€ 18.50
13-2
4521038A02019
ref: 13-2
MODEL J/K/L
BRACKET,SEAT,FRONT
4521038A02019
€ 18.50
13-3
4521038A0124D
ref: 13-3
MODEL F/G
BRACKET,SEAT,FRONT
€ 18.50
13-4
4521038A0124V
ref: 13-4
MODEL G/H
BRACKET,SEAT,FRONT
€ 18.50
13-5
4521038A0133D
ref: 13-5
MODEL H
BRACKET,SEAT,FRONT
€ 18.50
13-6
4521038A0220U
ref: 13-6
MODEL J/K/L
BRACKET,SEAT,FRONT
€ 18.50
13-7
4521038A0214W
ref: 13-7
MODEL M
BRACKET,SEAT,FRONT
€ 18.50
13-8
4521038A0219A
ref: 13-8
MODEL M
BRACKET,SEAT,FRONT
€ 18.50
14-1
0110706165
ref: 14-1
MODEL F/G/H/J
BOLT 6X16
0110706165
€ 2.00
14-2
0117406166
ref: 14-2
MODEL K/L/M
BOLT
€ 2.00
15
0832121064
ref: 15
MODEL F/G/H/J
WASHER,LOCK
0832121064
€ 2.00
16
0832221064
ref: 16
MODEL F/G/H/J
WASHER
0832221064
€ 2.00
17-1
4530038A004HS
ref: 17-1
MODEL F/G
SEAT ASSEMBLY,PILLION
€ 233.50
17-2
4530038A014HS
ref: 17-2
MODEL H
SEAT SET,PILLION
€ 233.50
17-3
4530038A405KR
ref: 17-3
MODEL J/K/L/M
SEAT ASSEMBLY,PILLION
€ 233.50
17-4
4530038A014HS
ref: 17-4
MODEL J/K E22
SEAT SET,PILLION
€ 233.50
17-5
4530038A015KR
ref: 17-5
MODEL L/M E22
SEAT SET,PILLION (BLACK)
€ 233.50
18
4514914500
ref: 18
CUSHION
4514914500
€ 6.50
19-1
4535038A014HS
ref: 19-1
MODEL F/G
PAD ASSEMBLY,SEAT
€ 83.50
19-2
4535038A024HS
ref: 19-2
MODEL H
PAD ASSY,SEAT
4535038A024HS
€ 83.50
19-3
4535038A405KR
ref: 19-3
MODEL J/K/L/M
PAD ASSEMBLY,SEAT
€ 233.00
19-4
4535038A024HS
ref: 19-4
MODEL J/K E22
PAD ASSY,SEAT
4535038A024HS
€ 83.50
19-5
4535038A025KR
ref: 19-5
MODEL L/M E22
PAD ASSY,SEAT (BLACK)
€ 83.50
20
0932009026
ref: 20
MODEL F/G/H,MODEL J/
CUSHION
0932009026
€ 4.00
21-1
4518038A004HS
ref: 21-1
MODEL F/G/H E16,E39
BAND,SEAT GRIP (BLACK)
€ 18.00
21-2
4518038A005KR
ref: 21-2
MODEL J E77 MODEL K
BAND,SEAT
€ 18.00
22
0110706166
ref: 22
E16,E21,E39,E77
BOLT
€ 2.00
23
0832121067
ref: 23
E16,E21,E39,E77
WASHER,LOCK
0832121067
€ 2.50
24
0832221067
ref: 24
E16,E21,E39,E77
WASHER
0832221067
€ 2.00
25-1
45100388109HZ
ref: 25-1
OPT,MODEL H/J
SEAT/PILLION/PAD SET
€ 225.00
25-2
45100388109KG
ref: 25-2
OPT,MODEL H/J
SEAT ASSEMBLY
€ 225.00
