FRONT WHEEL (VS750GLFH/GLPH)

VS750GLP 1987 (H) (E02 E04 E15 E17 E18 E21 E22 E25)

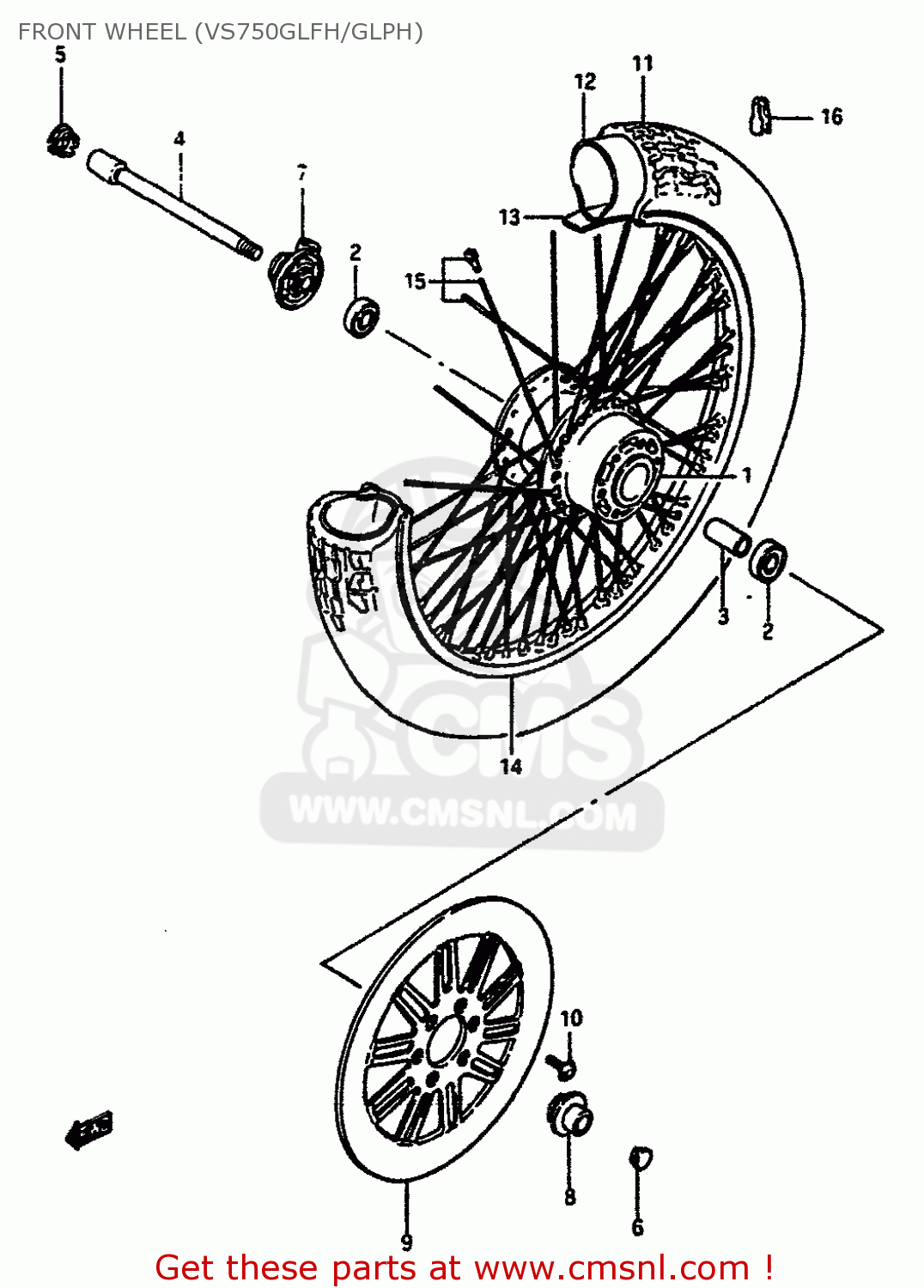

Front wheel (vs750glfh/glph) diagram VS750GLP 1987 (H) (E02 E04 E15 E17 E18 E21 E22 E25)

FRONT WHEEL (VS750GLFH/GLPH) VS750GLP 1987 (H) (E02 E04 E15 E17 E18 E21 E22 E25)
FRONT WHEEL (VS750GLFH/GLPH) VS750GLP 1987 (H) (E02 E04 E15 E17 E18 E21 E22 E25)
FRONT WHEEL (VS750GLFH/GLPH) VS750GLP 1987 (H) (E02 E04 E15 E17 E18 E21 E22 E25)
prices are in EUR
ref
part #
description
quantity
1
5411038B00
ref: 1
HUB ASSY,FR
5411038B00
€ 323.50
2
0812363027
ref: 2
BEARING
0812363027
€ 19.00
3
0918015004
ref: 3
SPACER(15.3X21.7X65)
0918015004
€ 9.00
4
5471138A10
ref: 4
AXLE,FRONT
€ 37.50
5
5479238B00
ref: 5
CAP,FR AXLE
5479238B00
€ 97.00
6
5479138B01
ref: 6
CAP,FR AXLE
5479138B01
€ 4.50
7
5460049260
ref: 7
BOX ASSY,SPEEDOMETER GEAR
5460049260
€ 219.00
8
5475038A20
ref: 8
SPACER COMP,FRONT AXLE
€ 12.50
9
5921138B00
ref: 9
DISC,FR BRAKE
5921138B00
€ 232.50
10
0910608049
ref: 10
BOLT(8X25.5)
0910608049
€ 4.00
11
5510038A40
ref: 11
BRIDGESTONE
TIRE,FRONT
€ 0.00
12
5520015030
ref: 12
TUBE,INNER
€ 41.00
13
5526115010
ref: 13
PROTECTOR,WHL INR TUBE
5526115010
€ 2.50
14
5531138A00
ref: 14
RIM,FRONT WHEEL (MT2.15)
€ 369.00
15
5532038B00
ref: 15
SPOKE SET,FR WHEEL
5532038B00
€ 176.50
16-1
5541238A00
ref: 16-1
BALANCER,WHEEL
5541238A00
€ 6.50
16-2
5541338A00
ref: 16-2
BALANCER,WHEEL (30G)
€ 8.00
