REAR SWINGING ARM (MODEL F)

VS750GLP 1987 (H) (E02 E04 E15 E17 E18 E21 E22 E25)

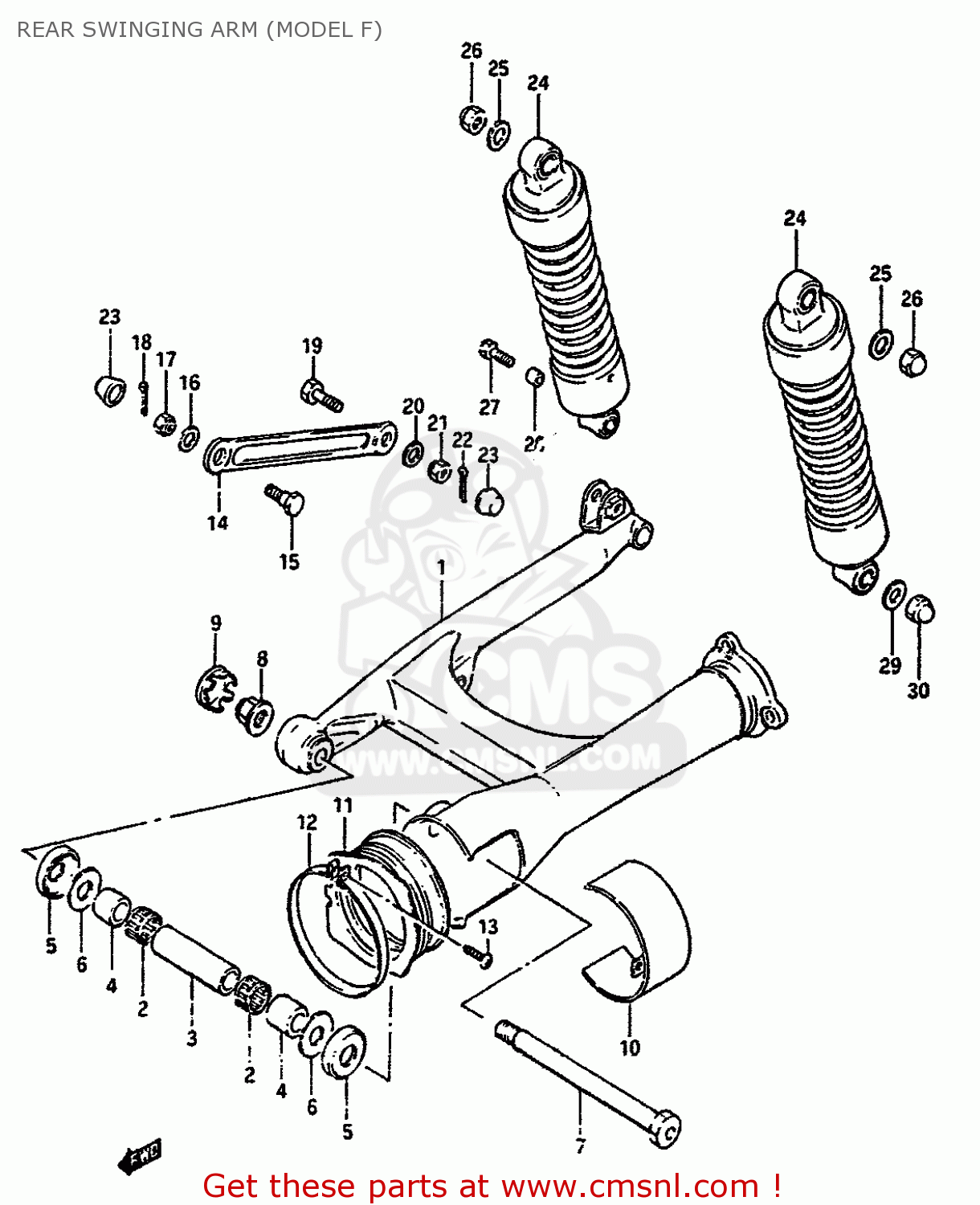

Rear swinging arm (model f) diagram VS750GLP 1987 (H) (E02 E04 E15 E17 E18 E21 E22 E25)

REAR SWINGING ARM (MODEL F) VS750GLP 1987 (H) (E02 E04 E15 E17 E18 E21 E22 E25)

REAR SWINGING ARM (MODEL F) VS750GLP 1987 (H) (E02 E04 E15 E17 E18 E21 E22 E25)

prices are in EUR

ref

part #

description

quantity

1

6110038A0224D
ref: 1

SWING ARM ASSEMBLY,REAR

€ 136.00

2

0926322022
ref: 2

BEARING(22X29X20)

€ 27.00

3

6128238A00
ref: 3

SPACER,REAR SWING ARM PIVOT

€ 11.50

4

6125132400
ref: 4

SPACER,RR SWGARM PIVOT

€ 12.50

5

6126245002
ref: 5

CVR,RR SWGARM DUST SEAL(OD:40)

€ 4.50

6

0821114341
ref: 6

WASHER

€ 3.00

7

6121138A00
ref: 7

SHAFT,RR SWINGINGARM PIVOT

€ 31.50

8

0831931148
ref: 8

NUT

€ 9.00

9

6122238A01
ref: 9

CAP,RR SWINGING ARM PIVOT,R

€ 6.50

10

6123238A0024D
ref: 10

COVER,REAR SWING ARM PIVOT

€ 25.50

11

6137238A00
ref: 11

BOOT,PROPELLER SHAFT

€ 16.50

12

0940292306
ref: 12

CLAMP

€ 8.50

13

0321104253
ref: 13

SCREW

€ 2.00

14

6431038A02019
ref: 14
L:240

TORQUE LINK,REAR

€ 5.00

15

0911110010
ref: 15

BOLT(10X24.5)

€ 5.50

16

0916010026
ref: 16

WASHER (10.5X18X1)

€ 2.00

17

0915910059
ref: 17

NUT

€ 2.50

18

0411116158
ref: 18

COTTER PIN

€ 2.00

19

0910110019
ref: 19

BOLT 10X35

€ 4.00

20

0916010026
ref: 20

WASHER (10.5X18X1)

€ 2.00

21

0915910059
ref: 21

NUT

€ 2.50

22

0411116158
ref: 22

COTTER PIN

€ 2.00

23

0925113002
ref: 23

CAP

€ 6.50

24

6210038A03
ref: 24

ABSORBER ASSEMBLY,REAR SHOCK

€ 367.00

25

0916010095
ref: 25

WASHER

€ 2.00

26

0831311107
ref: 26

NUT

€ 2.50

27

0910410002
ref: 27

BOLT(10X36)

€ 4.50

28

0918010104
ref: 28

SPACER (10.2X14X20.7)

€ 6.00

29

0916010095
ref: 29

WASHER

€ 2.00

30

0831311107
ref: 30

NUT

€ 2.50
