MAGNETO

VX800 1991 (M) (E01 E02 E04 E15 E16 E17 E18 E21 E22 24 25 34 39)

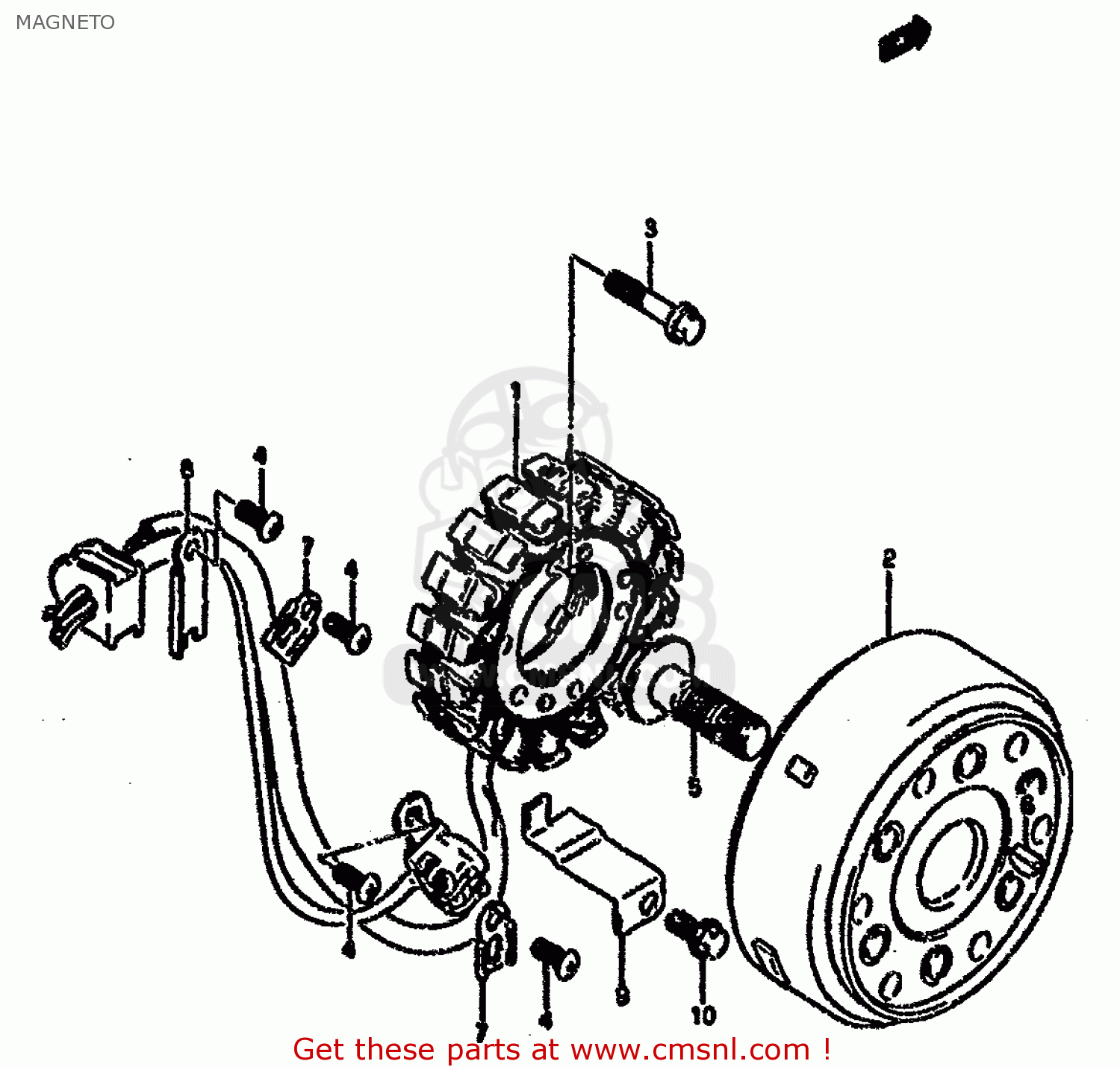

Magneto diagram VX800 1991 (M) (E01 E02 E04 E15 E16 E17 E18 E21 E22 24 25 34 39)

MAGNETO VX800 1991 (M) (E01 E02 E04 E15 E16 E17 E18 E21 E22 24 25 34 39)

MAGNETO VX800 1991 (M) (E01 E02 E04 E15 E16 E17 E18 E21 E22 24 25 34 39)

prices are in EUR

ref

part #

description

quantity

1

3210145C00
ref: 1

STARTER ASSY

€ 591.00

2

3210245C00
ref: 2

ROTOR ASSY

€ 319.00

3

0154706303
ref: 3

BOLT,G/S SWITC

€ 3.00

4

0211205103
ref: 4

SCREW

€ 2.00

5

0910314001
ref: 5

BOLT(14X43)

€ 7.00

6

0942004008
ref: 6

KEY

€ 3.50

7

3149745000
ref: 7

CLAMP,GENERATOR LEAD WIRE

€ 1.50

8

3237138A10
ref: 8

CLAMP NO.1,MAGNETO READ WIRE

€ 1.50

9

3237145C00
ref: 9
-32371-38A20

CLAMP,MAGNETO LEAD WIRE

€ 3.00

10-1

0151706108
ref: 10-1
MODEL L/M/N/P

BOLT

€ 2.50

10-2

0154706103
ref: 10-2
MODEL R/T

BOLT

€ 3.00
