TURN SIGNAL LAMP (MODEL T)

VX800 1991 (M) (E01 E02 E04 E15 E16 E17 E18 E21 E22 24 25 34 39)

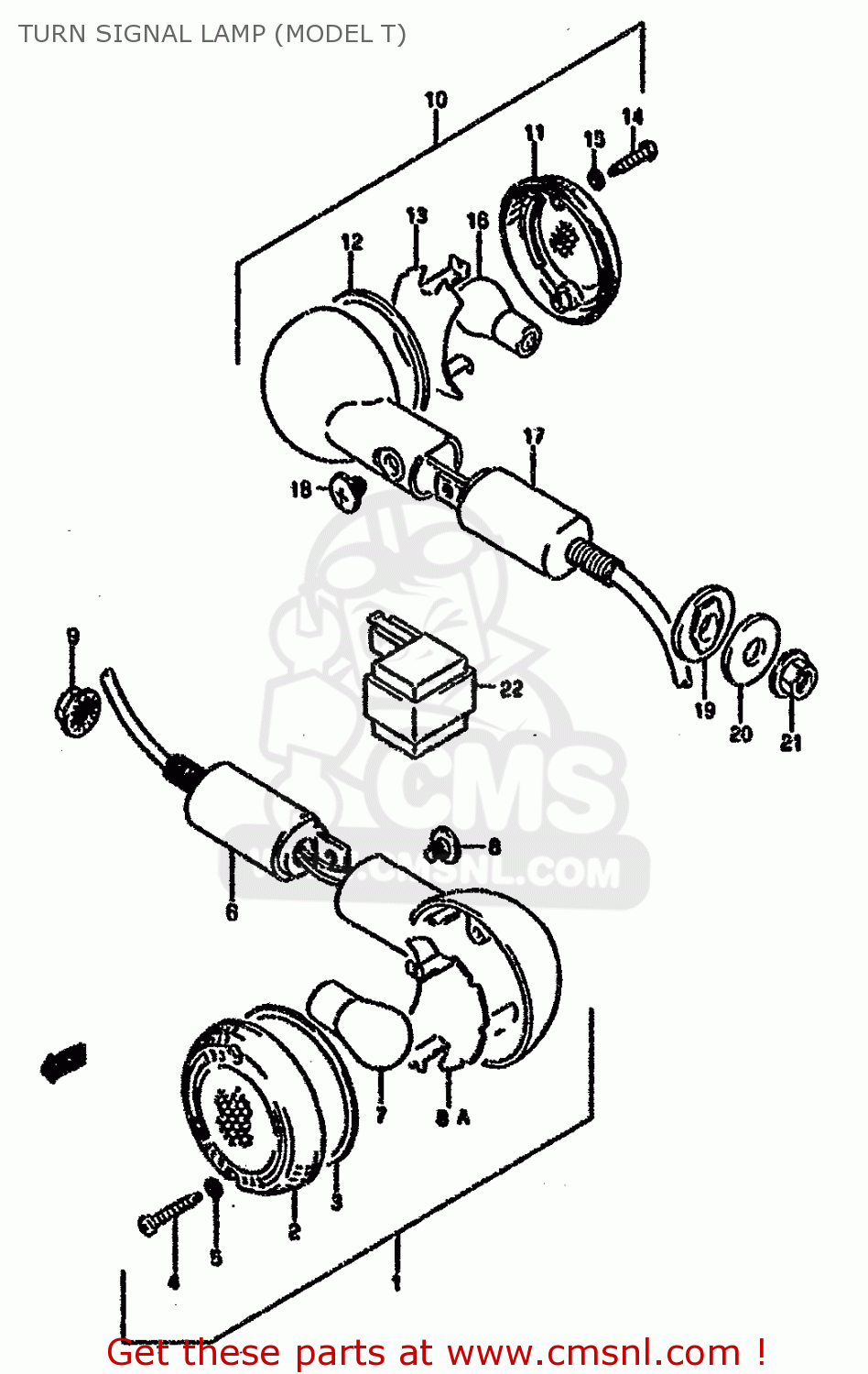

Turn signal lamp (model t) diagram VX800 1991 (M) (E01 E02 E04 E15 E16 E17 E18 E21 E22 24 25 34 39)

TURN SIGNAL LAMP (MODEL T) VX800 1991 (M) (E01 E02 E04 E15 E16 E17 E18 E21 E22 24 25 34 39)
TURN SIGNAL LAMP (MODEL T) VX800 1991 (M) (E01 E02 E04 E15 E16 E17 E18 E21 E22 24 25 34 39)
TURN SIGNAL LAMP (MODEL T) VX800 1991 (M) (E01 E02 E04 E15 E16 E17 E18 E21 E22 24 25 34 39)
prices are in EUR
ref
part #
description
quantity
1-1
3560133D30
ref: 1-1
LAMP ASSY,FR TURN SIGNAL
3560133D30
€ 94.50
1-2
3560133DC0
ref: 1-2
E22
LAMP ASSY,FR TURN SIGNAL,R
€ 0.00
2
3561238A01
ref: 2
LENS
3561238A01
€ 10.50
3
3561338A00
ref: 3
GASKET (NAS)
3561338A00
€ 11.50
4
0321104253
ref: 4
SCREW
0321104253
€ 2.00
5
3562743010
ref: 5
GASKET (NAS)
3562743010
€ 2.00
6-1
3561945C10
ref: 6-1
STAY,TURNSIGNAL FR
3561945C10
€ 97.50
6-2
3561945C00
ref: 6-2
E22
STAY,TURN SIGNAL,FRONT
3561945C00
€ 97.50
7
0947112045
ref: 7
BULB(12V21W)
0947112045
€ 5.00
8
3562338A01
ref: 8
SCREW
3562338A01
€ 5.50
8A
3562438A20
ref: 8A
REFLECTOR
3562438A20
€ 71.00
9
0831610103
ref: 9
NUT
0831610103
€ 2.00
10
3560333D30
ref: 10
LAMP ASSY,RR TURNSIGNAL,R
3560333D30
€ 102.00
11
3565238A21
ref: 11
LENS
3565238A21
€ 16.50
12
3561338A00
ref: 12
GASKET (NAS)
3561338A00
€ 11.50
13
3565438A20
ref: 13
REFLECTOR
3565438A20
€ 83.50
14
0321104253
ref: 14
SCREW
0321104253
€ 2.00
15
3562743010
ref: 15
GASKET (NAS)
3562743010
€ 2.00
16
0947112045
ref: 16
BULB(12V21W)
0947112045
€ 5.00
17
3565945C10
ref: 17
STAY,TURNSIGNAL RR
3565945C10
€ 36.00
18
3562338A01
ref: 18
SCREW
3562338A01
€ 5.50
19
3569517C00
ref: 19
SPACER,RR TURNSIGNAL
3569517C00
€ 3.00
20
0916010501
ref: 20
WASHER(10.5X30X2.3)
0916010501
€ 2.50
21
0831000103
ref: 21
NUT
0831000103
€ 2.00
22
3861045D01
ref: 22
RELAY ASSY,TURNSIGNAL LAMP
3861045D01
€ 68.50
18-1
3565945C10
ref: 18-1
STAY,TURNSIGNAL RR
3565945C10
€ 36.00
18-2
3565945C00
ref: 18-2
E15,E16
STAY,TURN SIGNAL,REAR
3565945C00
€ 27.50
19
3569517C00
ref: 19
SPACER,RR TURNSIGNAL
3569517C00
€ 3.00
20
0916010094
ref: 20
WASHER(10.5X30X3.2)
0916010094
€ 3.50
21-1
0831620103
ref: 21-1
MODEL L/M/N
NUT
0831620103
€ 3.50
21-2
0831000107
ref: 21-2
MODEL P/R
NUT
0831000107
€ 2.50
22
3861031X50
ref: 22
MODEL L/M/N-38610-31
RELAY ASSY,TURNSIGNAL
3861031X50
€ 54.50
23-1
3861045091
ref: 23-1
MODEL L/M/N E22
RELAY ASSY,TUR
€ 67.50
23-2
3861045D01
ref: 23-2
MODEL P/R
RELAY ASSY,TURNSIGNAL LAMP
3861045D01
€ 68.50
