BATTERY

VX800 1994 (R) (E02 E04 E18 E21 E22 E24 E25 E34)

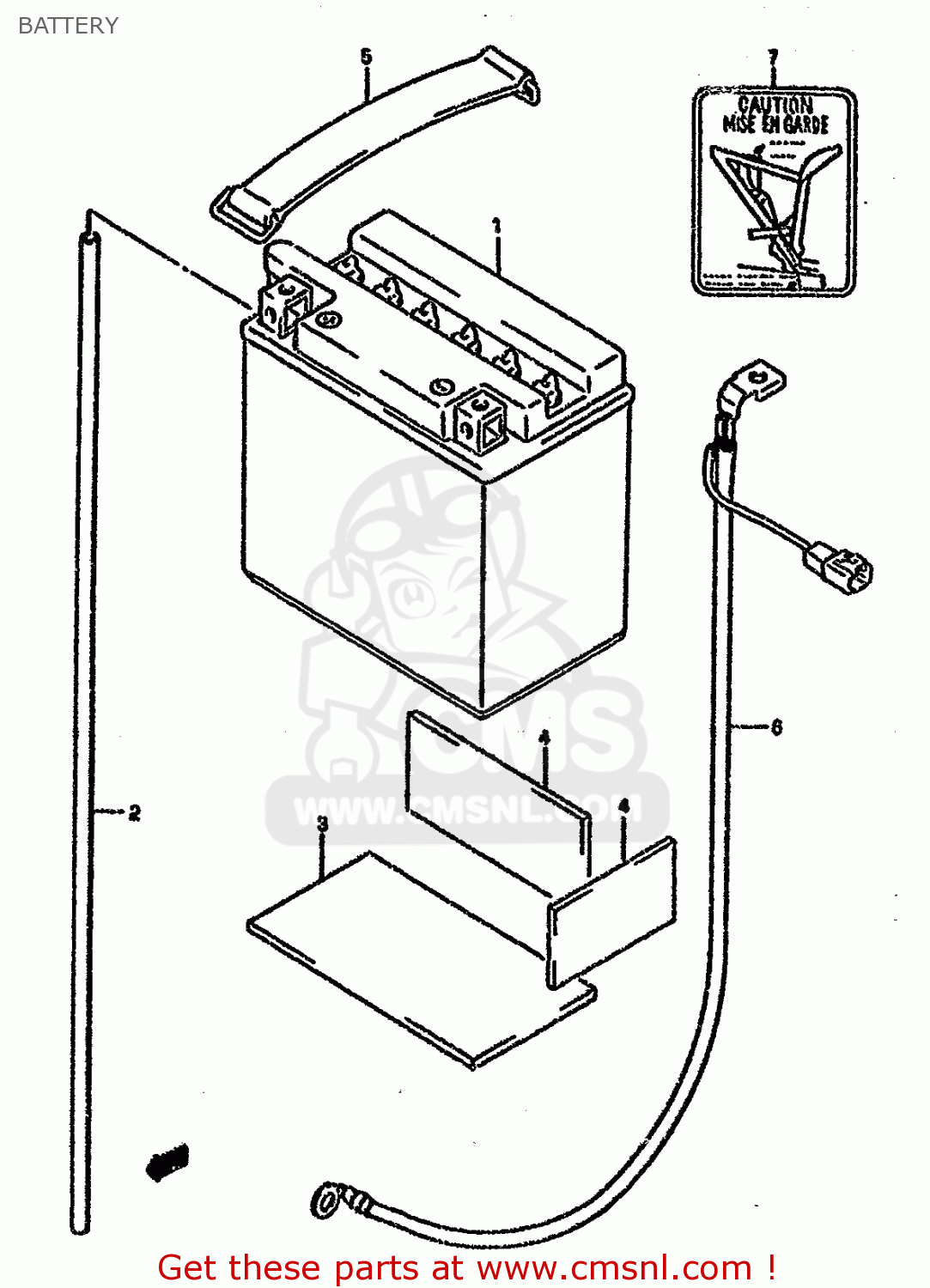

Battery diagram VX800 1994 (R) (E02 E04 E18 E21 E22 E24 E25 E34)

prices are in EUR

ref

part #

description

quantity

3361045C30
ref: 1

BATTERY ASSEMBLY (12V)

€ 119.50

3368016A10
ref: 2
-33680-31003

HOSE,BATTERY EXHAUST(L:780)

€ 4.50

3365137000
ref: 3
CUT AS REQUIRED PROF

PROTECTOR(170X95X3.0)

€ 5.00

3365137000
ref: 4
CUT AS REQUIRED PROF

PROTECTOR(170X95X3.0)

€ 5.00

0946200007
ref: 5

BAND

€ 5.00

3386045C00
ref: 6

WIRE,BATTERY MINUS LEAD

€ 13.50

3369045C00
ref: 7

PLATE,BATTERY CAUTION

€ 3.00
