STAND GRIP-CARRIER

VX800 1994 (R) (E02 E04 E18 E21 E22 E24 E25 E34)

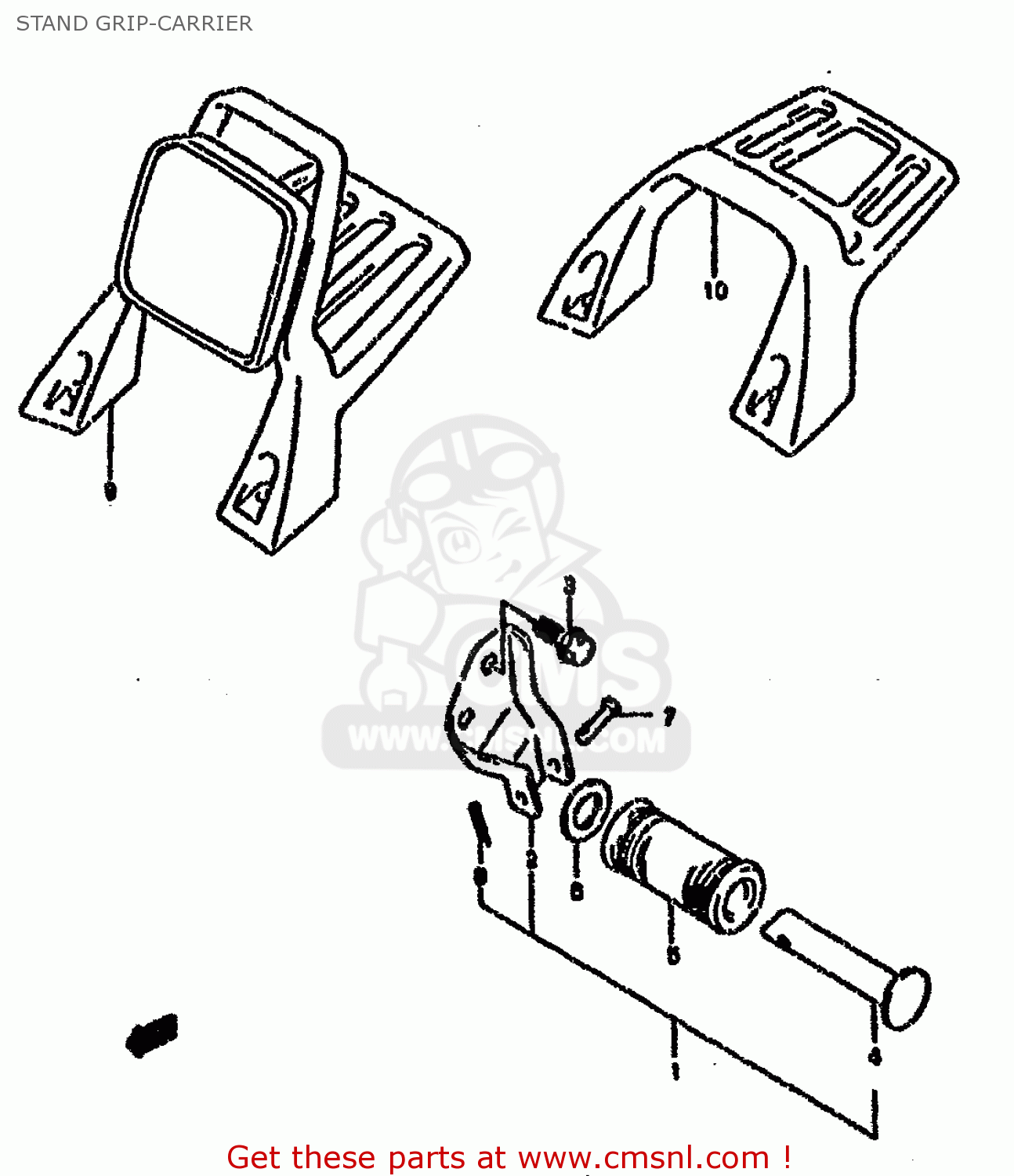

Stand grip-carrier diagram VX800 1994 (R) (E02 E04 E18 E21 E22 E24 E25 E34)

prices are in EUR

ref

part #

description

quantity

4390045810
ref: 1
OPT

GRIP SET,CTR STAND

€ 76.50

4399045C00
ref: 2
OPT

HOLDER COMP,CENTER STAND

€ 46.50

3-1

0151708165
ref: 3-1
OPT,MODEL L/M/N/P

BOLT, LOWER

€ 3.00

3-2

0155008163
ref: 3-2
OPT,MODEL R/T

BOLT

€ 3.00

4361044000
ref: 4
OPT

BAR,PILLION FOOTREST

€ 14.50

4399545C00
ref: 5
OPT

RUBBER,STAND GRIOP (OPT)

€ 21.00

0916019006
ref: 6
OPT

WASHER (19.5X32X2)

€ 2.00

7-1

0920006010
ref: 7-1
OPT,MODEL L/M/N/P

PIN

€ 2.50

7-2

0920006033
ref: 7-2
OPT,MODEL R/T

PIN

€ 2.00

0411120158
ref: 8
OPT

PIN

€ 1.50

9-1

463004581223S
ref: 9-1
OPT,MODEL L/M/N/P

CARRIER SET,SUPPORT

€ 411.50

9-2

463004581221R
ref: 9-2
OPT,MODEL R/T

CARRIER SET,SPORT (SILVER)

€ 468.50

10-1

463004582223S
ref: 10-1
OPT,MODEL L/M/N/P

CARRIER SET,SUPPORT

€ 87.00

10-2

463004582221R
ref: 10-2
OPT,MODEL R/T

CARRIER SET,SP

€ 214.50
