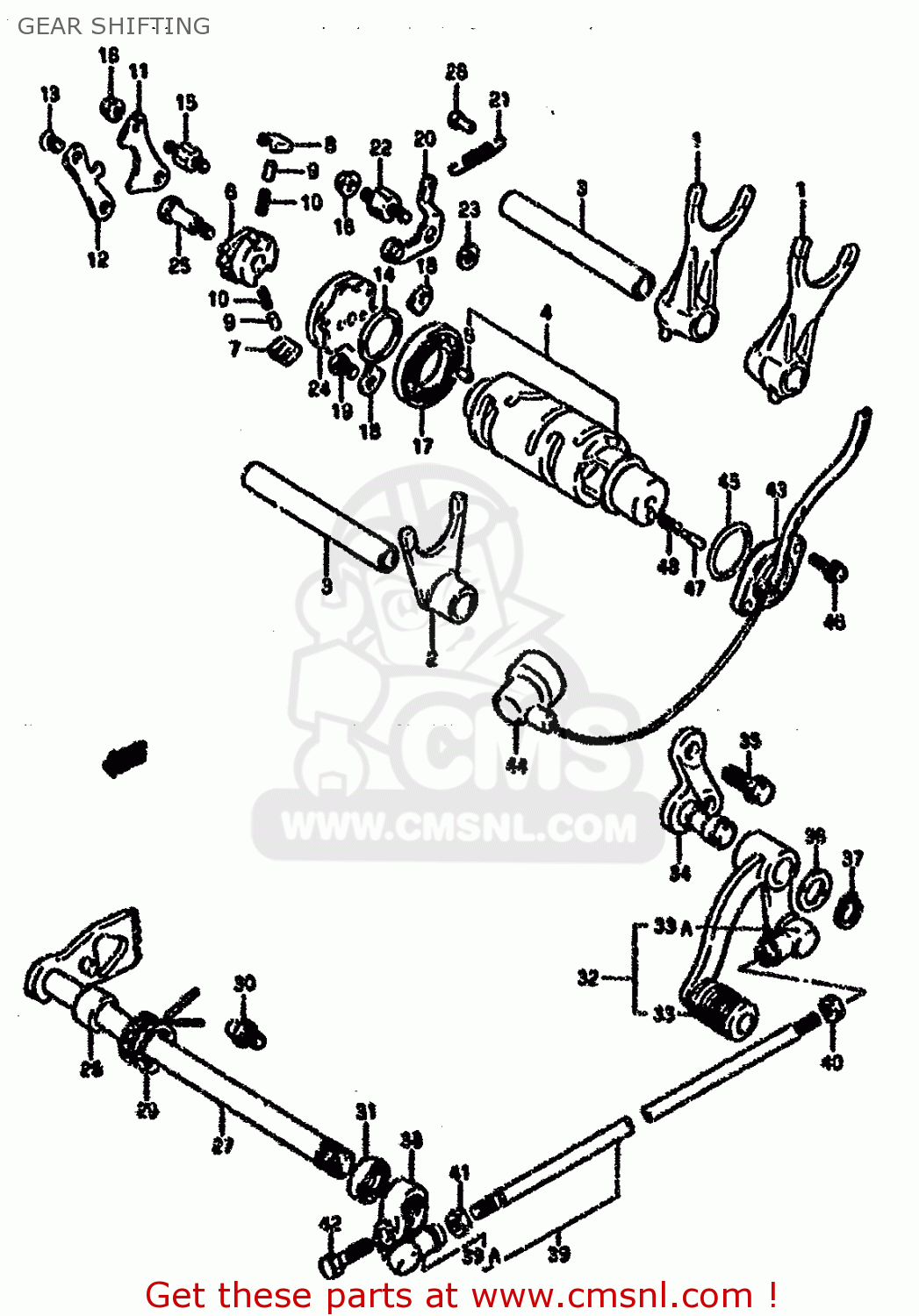

GEAR SHIFTING

ref

part #

description

quantity

1

2521138A02
ref: 1

FORK,GEAR SHIFT NO.1

€ 94.00

2

2522138A01
ref: 2

FORK,GEAR SHIFT NO.2

€ 79.00

3

2541138A00
ref: 3

SHAFT,GEAR SHIFT FORK(L:115)

€ 17.00

4

2531038A03
ref: 4

CAM,GEAR SHIFT

€ 146.00

5

0422104089
ref: 5

PIN

€ 1.50

6

2532231301
ref: 6

GEAR,GEARSHIFT CAM DRIVE

€ 14.50

7

2532334201
ref: 7

PAWL,GEAR SHIFT NO.1

€ 6.00

8

2532434201
ref: 8

PAWL,GEAR SHIFT NO.2

€ 6.00

9

0926105003
ref: 9

PIN(5X8)

€ 1.50

10

0944004003
ref: 10

SPRING

€ 1.50

11

2533138A00
ref: 11

LIFTER,GEAR SHIFT POLE

€ 4.50

12

2534138A00
ref: 12

GUIDE,GEAR SHIFT CAM

€ 6.00

13

0212206123
ref: 13

SCREW

€ 3.00

14

0916025059
ref: 14

WASHER(25X32X3)

€ 5.00

15

2533238A00
ref: 15

BOSS,SHIFT PAWL LIFTER

€ 3.50

16-1

0915906017
ref: 16-1
MODEL L/M/N/P

NUT

€ 2.50

16-2

0831610063
ref: 16-2
MODEL R/T

NUT

€ 2.50

17-1

0926225002
ref: 17-1
MODEL L/M/N/P

BEARING

€ 24.00

17-2

0926225006
ref: 17-2
MODEL R/T

BEARING(25X47X8)

€ 24.00

18

2474121A00
ref: 18
-24741-20A10

RETAINER

€ 2.00

19

0211206123
ref: 19

SCREW

€ 1.50

20

2535038A00
ref: 20

STOPPER,GEAR SHIFT CAM

€ 9.00

21

0944308051
ref: 21

SPRING,SHIFT CAM STOPPER

€ 2.50

22

2535538A00
ref: 22

SUPPORT,CAM STOPPER ARM

€ 5.50

23

0821106141
ref: 23

WASHER

€ 2.50

24

2538038A02
ref: 24

PLATE,GEAR SHIFT CAM

€ 15.00

25

2531238A00
ref: 25

PIN,SHIFT CAM DRIVEN GEAR

€ 4.00

26

0922304001
ref: 26

RIVET

€ 1.50

27

2551038A00
ref: 27

SHAFT,GEAR SHIFT

€ 66.50

28

0918012068
ref: 28

SPACER(12X20X15.3)

€ 3.00

29

0944426013
ref: 29
-09444-26012

SPRING

€ 3.50

30

2567101000
ref: 30

STOPPER,GEAR SHIFT CAM

€ 3.00

31

0928512002
ref: 31

OIL SEAL

€ 7.00

32

2560045C03
ref: 32
-25600-45C02

LEVER ASSY,GEAR SHIFT

€ 124.50

33

2565220C00
ref: 33

RUBBER,GEAR SHIFT PEDAL

€ 8.00

33A

2552647000
ref: 33A

COVER,DUST

€ 3.50

34

2568045C01
ref: 34

BRACKET,GEAR SHIFT LEVER

€ 62.50

35-1

0155008203
ref: 35-1
MODEL L/M/N

BOLT

€ 3.00

35-2

0180708185
ref: 35-2
MODEL P

BOLT

€ 3.00

35-3

0181008203
ref: 35-3
MODEL R

BOLT

€ 3.00

35-4

0155008203
ref: 35-4
MODEL T

BOLT

€ 3.00

36

0916012011
ref: 36

WASHER(12.5X20X1)

€ 1.50

37

0833131126
ref: 37

CIRCLIP,12 MM

€ 2.00

38

2552045C00
ref: 38

ARM,GEAR SHIFT LINK

€ 52.50

39-1

2552545C00
ref: 39-1
MODEL L/M/N/P/R

ROD,GEAR SHIFT LINK

€ 25.50

39-2

2552545C10
ref: 39-2
MODEL T

ROD,GEAR SHIFT LINK

€ 25.50

39A

2552647000
ref: 39A

COVER,DUST

€ 3.50

40

0914006011
ref: 40

NUT

€ 1.50

41

0831000067
ref: 41

NUT

€ 2.50

42

0150006203
ref: 42

BOLT

€ 2.00

43-1

3772045C00
ref: 43-1
MODEL L/M/N/P/R

BASE ASSY,NEUTRAL SW

€ 49.00

43-2

3772045C10
ref: 43-2
MODEL T

BODY,SWITCH

€ 58.00

43-3

3772045C00
ref: 43-3
MODEL T E18

BASE ASSY,NEUTRAL SW

€ 49.00

44

3661843410
ref: 44

CAP,OIL PRESSURE SWITCH

€ 2.50

45

0928026005
ref: 45

O RING(D:2.4,ID:26.2)

€ 2.50

46-1

0211275163
ref: 46-1

SCREW

€ 2.50

46-2

0211275203
ref: 46-2
MODEL T E4,E21,E22,E

SCREW

€ 3.00

47

0920905011
ref: 47

PIN(5X15.5)

€ 2.00

48

0944004010
ref: 48

SPRING

€ 1.50
