HEADLAMP (MODEL T)
VX800U 1990 (L) (E22)

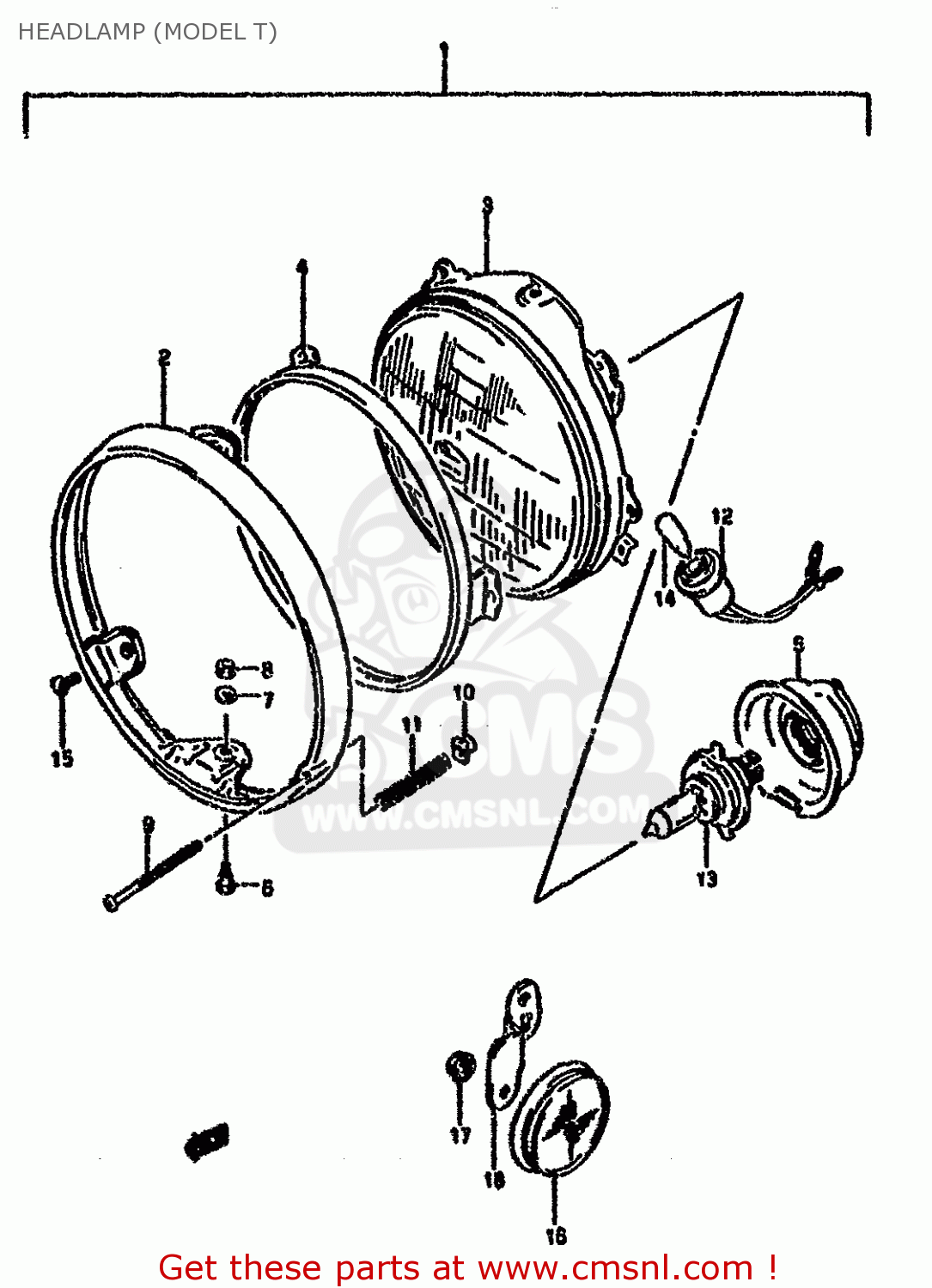

Headlamp (model t) diagram VX800U 1990 (L) (E22)
HEADLAMP (MODEL T) VX800U 1990 (L) (E22)
×
prices are in EUR
ref
part #
description
quantity
1
3510026D50999
ref: 1
HEADLAMP ASSY
€ 272.00
2
3511101D20
ref: 2
RIM,HEADLAMP
€ 55.50
3
3512110D40
ref: 3
LAMP UNIT
€ 147.00
4
3512710D20
ref: 4
RING
€ 22.00
5
3517320A01
ref: 5
COVER,SOCKET
€ 14.50
6
3518115611
ref: 6
H/LAMP LENS UNIT FITING SCRE
€ 3.00
7
0832101057
ref: 7
WASHER,LOCK
€ 2.00
8
0831000053
ref: 8
NUT
€ 2.50
9
3515145900
ref: 9
SCREW
€ 4.00
10
3515215611
ref: 10
NUT
€ 3.50
11
3515431900
ref: 11
SPRING,ADJUSTING
€ 3.50
12
3611826D50
ref: 12
SOCKET,PARKING LAMP
€ 19.00
13
0947112060
ref: 13
BULB(12V60/55W,H4)
€ 8.00
14
0947112063
ref: 14
BULB(12V4W)
€ 6.00
15
0212205127
ref: 15
SCREW
€ 2.50
16
3595014A00
ref: 16
E18
REFLECTOR,REFLEX FR
€ 15.00
17
0831000053
ref: 17
E18
NUT
€ 2.50
18-1
3595645C01
ref: 18-1
E18
BRACKET,SIDE REFLECTOR
€ 0.00
18-2
3595745C01
ref: 18-2
E18
BRACKET,SIDE REFLECTOR
€ 0.00
17-2
0831000053
ref: 17-2
MODEL R E18
NUT
€ 2.50
18-1
3595645C01
ref: 18-1
E18
BRACKET,SIDE REFLECTOR
€ 0.00
18-2
3595745C01
ref: 18-2
E18
BRACKET,SIDE REFLECTOR
€ 0.00
22
0212205127
ref: 22
SCREW
€ 2.50
23
3595014A00
ref: 23
E39
REFLECTOR,REFLEX FR
€ 15.00
24
0831620053
ref: 24
E39
NUT
€ 2.00
25-1
3595645C00
ref: 25-1
E39
BRACKET,FRONT SIDE,REAR
€ 0.00
25-2
3595745C00
ref: 25-2
E39
BRACKET,FRONT SIDE,REAR
€ 0.00
