BATTERY

VZ800 MARAUDER 1999 (X) USA (E03)

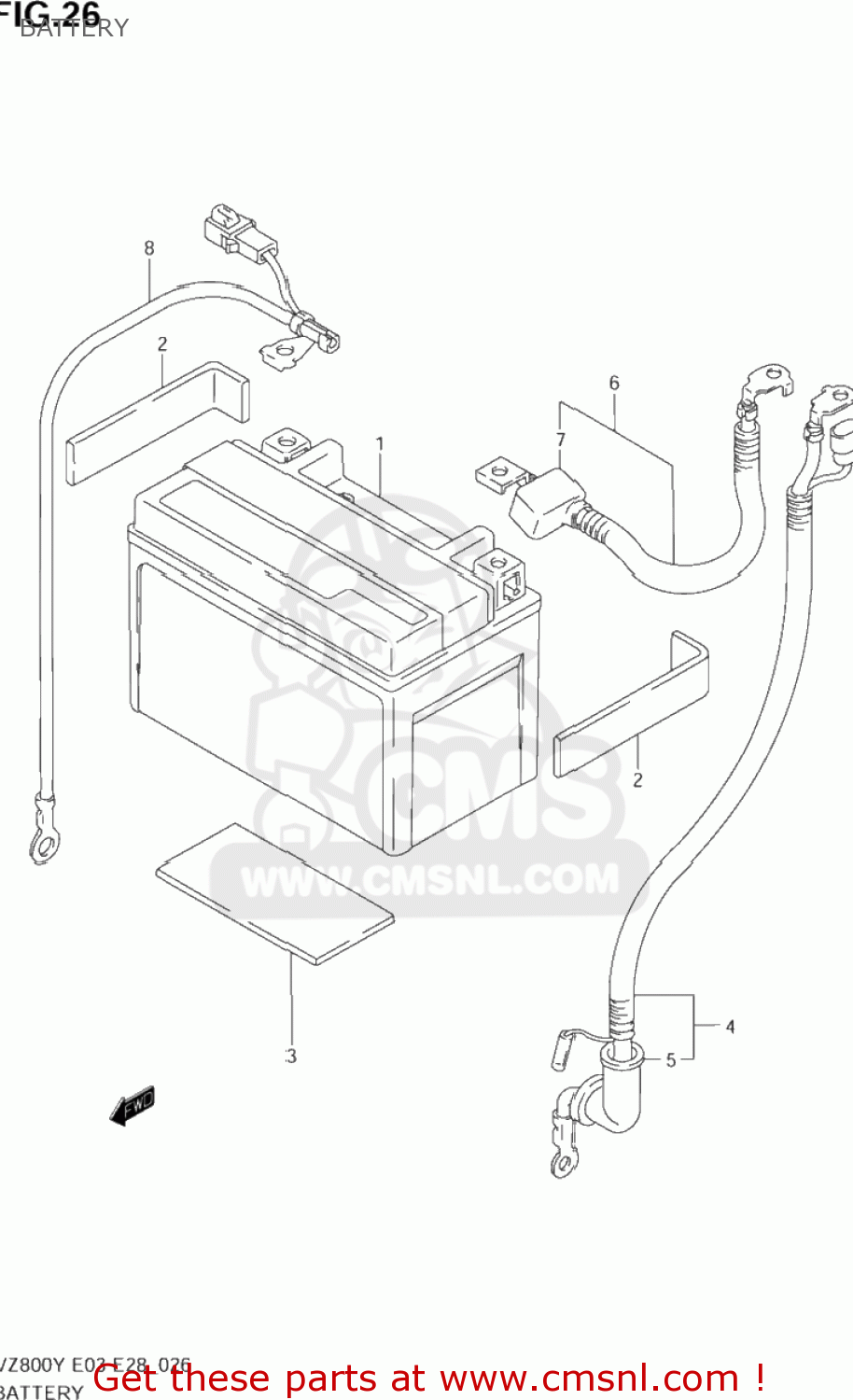

Battery diagram VZ800 MARAUDER 1999 (X) USA (E03)

BATTERY VZ800 MARAUDER 1999 (X) USA (E03)

BATTERY VZ800 MARAUDER 1999 (X) USA (E03)

prices are in EUR

ref

part #

description

quantity

1-1

3361048E10
ref: 1-1
33610-48E20

BATTERY ASSEMBLY

€ 97.50

1-2

3361048E20
ref: 1-2

BATTERY ASSEMBLY (12V) FTX

€ 97.50

1-3

3361048E20
ref: 1-3

BATTERY ASSEMBLY (12V) FTX

€ 97.50

1-3

3361048E20
ref: 1-3

BATTERY ASSEMBLY (12V) FTX

€ 97.50

2

3365137000
ref: 2

PROTECTOR(170X95X3.0)

€ 5.00

2

3365137000
ref: 2

PROTECTOR(170X95X3.0)

€ 5.00

3

3365137000
ref: 3

PROTECTOR(170X95X3.0)

€ 5.00

3

3365137000
ref: 3

PROTECTOR(170X95X3.0)

€ 5.00

4

3381048E00
ref: 4

WIRE,STARTER MOTOR LEAD

€ 40.50

5

3186148B10
ref: 5

CAP,STARTER MOTOR LEAD

€ 4.50

6

3382048E00
ref: 6

WIRE,BATTERY PLUS LEAD

€ 13.00

7

3362416E00
ref: 7

CAP,BATTERY PLUS

€ 4.00

8

3386048E00
ref: 8

WIRE,BATTERY MINUS

€ 19.00
