FRONT DAMPER

VZ800 MARAUDER 1999 (X) USA (E03)

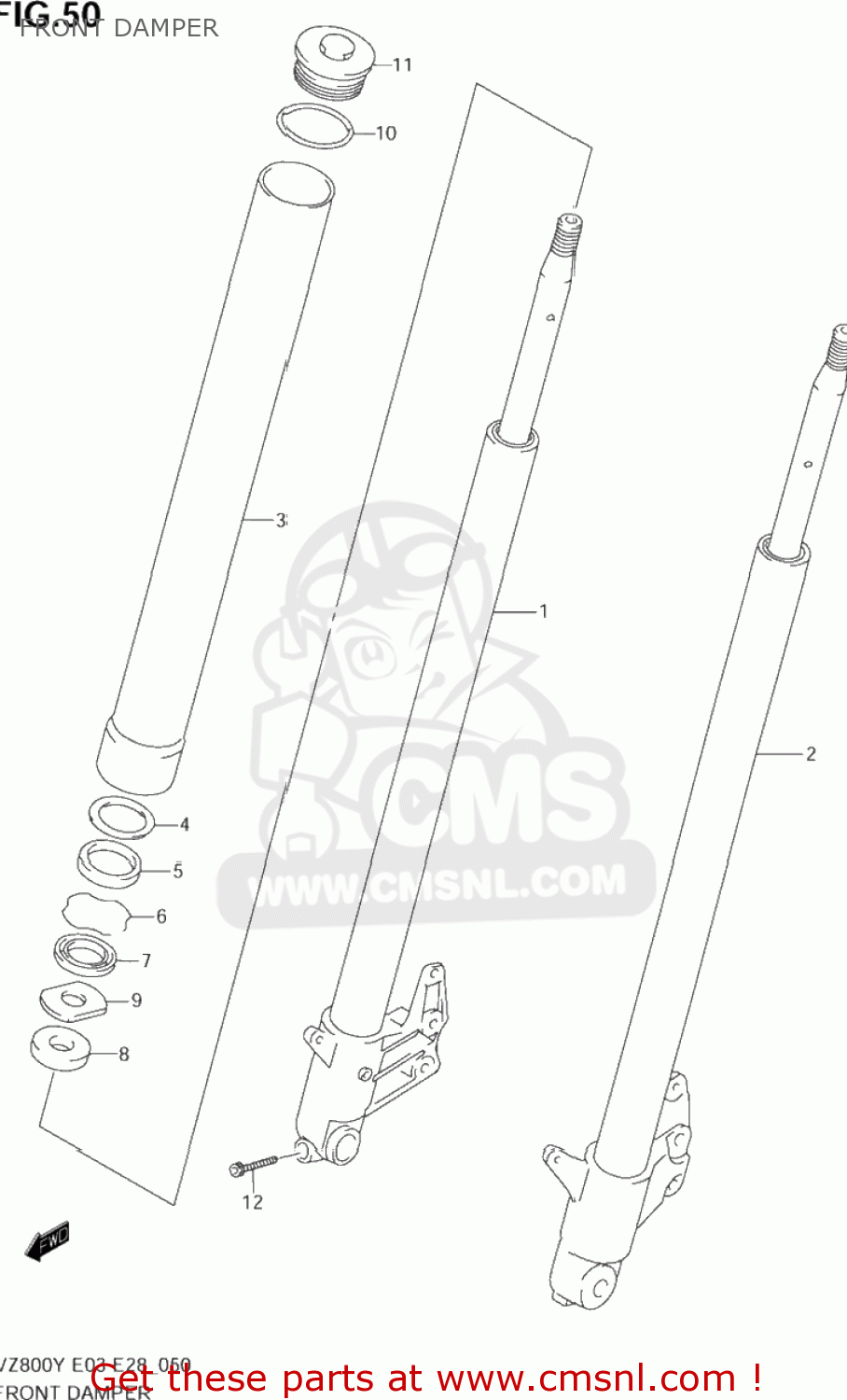

Front damper diagram VZ800 MARAUDER 1999 (X) USA (E03)

FRONT DAMPER VZ800 MARAUDER 1999 (X) USA (E03)

FRONT DAMPER VZ800 MARAUDER 1999 (X) USA (E03)

prices are in EUR

ref

part #

description

quantity



5110348E10
ref:

DAMPER ASSY,FR FORK,R

€ 660.50



5110448E10
ref:

DAMPER ASSY,FR FORK,L

€ 654.50

1

5111048E10
ref: 1

DAMPER,FR FORK,R

€ 496.00

2

5112048E10
ref: 2

DAMPER,FR FORK,L

€ 678.00

3

5113048E00
ref: 3

TUBE,OUTER

€ 487.00

4

5115805A00
ref: 4

WASHER,FORK OIL SEAL

€ 5.00

5

5115327C20
ref: 5

SEAL,OIL

€ 22.00

6

5115649440
ref: 6

RING,OIL SEAL STOPPER

€ 5.50

7

5117346E00
ref: 7

SEAL,DUST

€ 20.00

8

5119348E00
ref: 8

RUBBER,CUSHION

€ 7.50

9

5135348E00
ref: 9

NUT

€ 31.00

10

5111748E00
ref: 10

O RING

€ 4.50

11

5135148E00
ref: 11

CAP

€ 85.50

12

5138148E10
ref: 12

BOLT,LWR

€ 6.00
