ELECTRICAL

VZR1800 BOULEVARD M109R 2008 (K8) CALIFORNIA (E33)

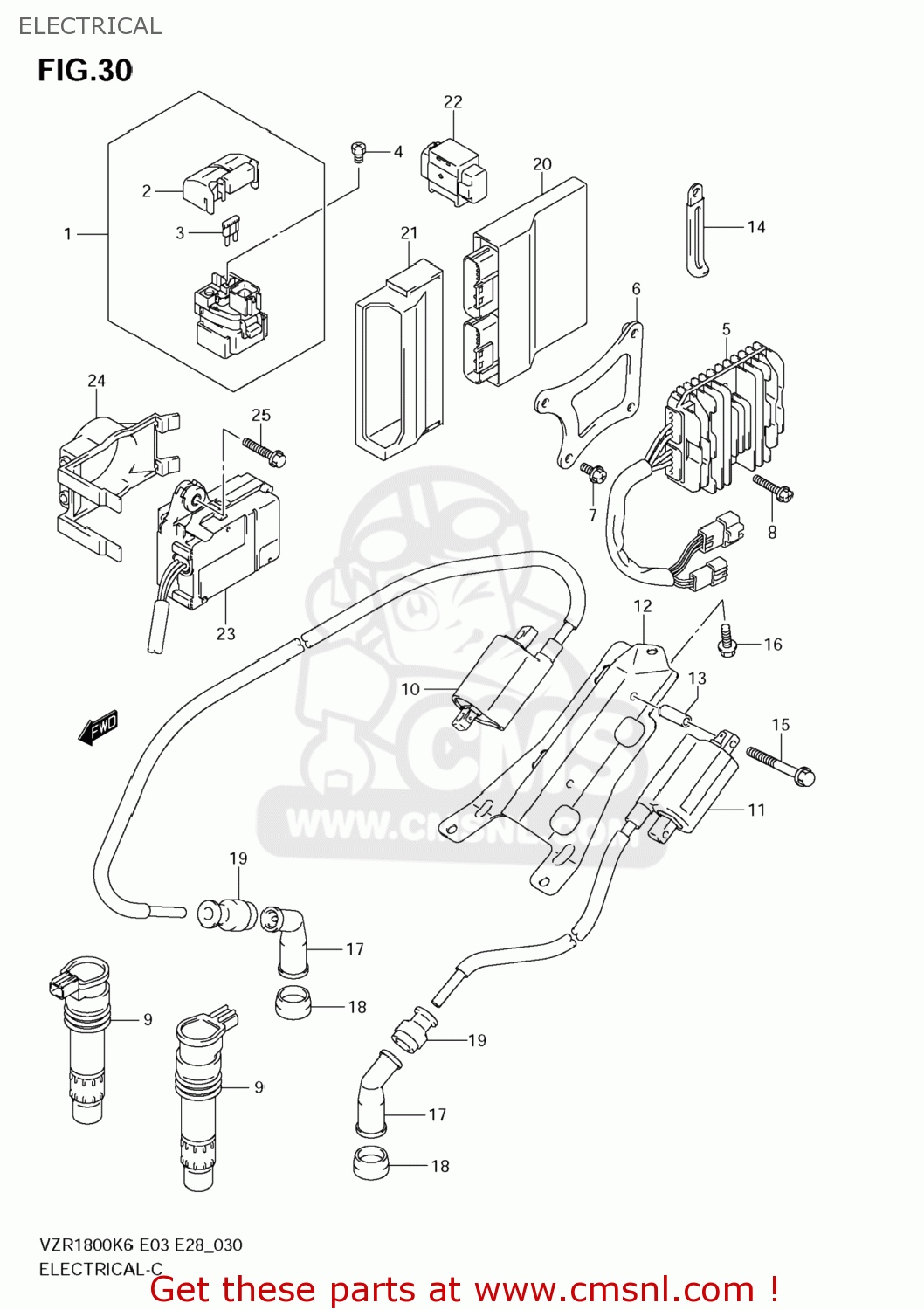

Electrical diagram VZR1800 BOULEVARD M109R 2008 (K8) CALIFORNIA (E33)

ELECTRICAL VZR1800 BOULEVARD M109R 2008 (K8) CALIFORNIA (E33)

ELECTRICAL VZR1800 BOULEVARD M109R 2008 (K8) CALIFORNIA (E33)

prices are in EUR

ref

part #

description

quantity

1

3180038G10
ref: 1

RELAY ASSY,STARTING MOTOR

€ 77.50

2

3186138G00
ref: 2

COVER

€ 3.50

3

0948130501
ref: 3

FUSE(30A)

€ 0.50

4

0912806013
ref: 4

SCREW(6X8)

€ 1.50

5-1

3280010G00
ref: 5-1
32800-10G20

RECTIFIER ASSY

€ 336.50

5-2

3280010G10
ref: 5-2

RECTIFIER ASSY

€ 336.50

6

3283048G00
ref: 6

BRACKET,RECT FIG

€ 10.00

7

021620620C
ref: 7

SCREW

€ 2.00

8

021620625A
ref: 8

SCREW

€ 1.50

9

3341035F10
ref: 9

COIL ASSY,IGNITION

€ 122.50

10

3341038A20
ref: 10

COIL ASSY,IGNITION RR

€ 100.50

11

3341048G00
ref: 11

COIL ASSY,IGNITION RR

€ 101.50

12

3341448G00
ref: 12

BRACKET,IGNITION COIL

€ 17.50

13

0918006195
ref: 13

SPACER(6.4X10X18)

€ 3.50

14

0940406433
ref: 14

CLAMP(L:80)

€ 3.00

15

015470535A
ref: 15

BOLT

€ 2.00

16

015500616A
ref: 16

BOLT

€ 2.50

17

3351020E00
ref: 17

CAP ASSY,SPARK PLUG

€ 22.50

18

3354147D00
ref: 18

SEAL,SPARK PLUG

€ 7.00

19

3354238B00
ref: 19

SEAL,HIGH TENSION CORD

€ 4.50

20-1

3292048G10
ref: 20-1

CONTROL UNIT,FI

€ 0.00

20-2

3292048G50
ref: 20-2

CONTROL UNIT,FI

€ 1,085.00

21

3298048G00
ref: 21

HOLDER,FI CONTROL UNIT

€ 8.50

22

3396006G10
ref: 22

SENSOR ASSY,FUEL CUT

€ 75.00

23

3397048G00
ref: 23

ACTUATOR ASSY,EXHAUST CONTROL

€ 252.50

24

3397348G00
ref: 24

COVER,ACTUATOR

€ 11.50

25

015600625A
ref: 25

BOLT

€ 2.00
