REAR WHEEL (MODEL K6/K7)

VZR1800 BOULEVARD M109R 2008 (K8) CALIFORNIA (E33)

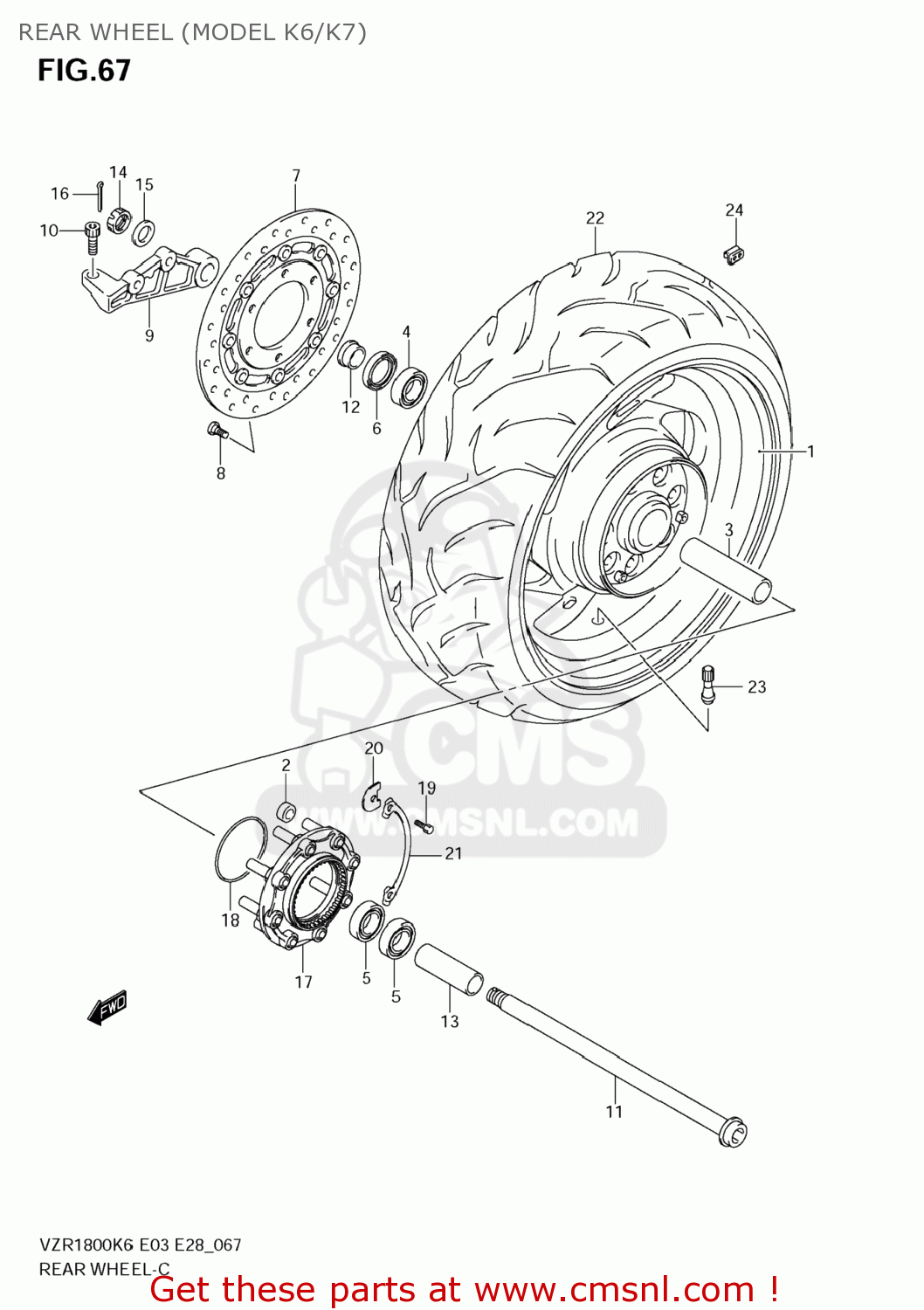

Rear wheel (model k6/k7) diagram VZR1800 BOULEVARD M109R 2008 (K8) CALIFORNIA (E33)

REAR WHEEL (MODEL K6/K7) VZR1800 BOULEVARD M109R 2008 (K8) CALIFORNIA (E33)

REAR WHEEL (MODEL K6/K7) VZR1800 BOULEVARD M109R 2008 (K8) CALIFORNIA (E33)

prices are in EUR

ref

part #

description

quantity

1

6410048810YD8
ref: 1

WHEEL SET,RR(18M/CXMT8.50)

€ 1,728.00

1

6410048810YD8
ref: 1

WHEEL SET,RR(18M/CXMT8.50)

€ 1,728.00

2

0931912019
ref: 2

BUSH

€ 10.50

3

6473148G00
ref: 3

SPACER,RR WHEEL BEARING

€ 45.50

4

0926225061
ref: 4

BEARING(25X52X15)

€ 27.50

5

0814362057
ref: 5

BEARING

€ 24.50

6

0928532004
ref: 6

SEAL,OIL(32X52X7)

€ 8.00

7

6921010F50
ref: 7

DISC,RR BRAKE

€ 445.00

8

0910608160
ref: 8

BOLT(8X21)

€ 3.50

9

6972148G00
ref: 9

BRACKET,RR CALIPER

€ 156.50

10

0910612003
ref: 10

BOLT(12X35)

€ 3.50

11

6471148G10
ref: 11

AXLE,RR

€ 0.00

12

6474148G00
ref: 12

SPACER,RR AXLE,R

€ 10.50

13

6477248G00
ref: 13

SPACER,RR AXLE,L

€ 25.50

14

0914122001
ref: 14

NUT

€ 11.50

15

0916022081
ref: 15

WASHER(22X35X2)

€ 2.00

16

041114035A
ref: 16

PIN

€ 1.50

17

6468048G00
ref: 17

JOINT ASSY,RR HUB DRIVEN

€ 283.50

18

0928080001
ref: 18

O RING(D:2.4,ID:79.8)

€ 3.50

19

0911906049
ref: 19

BOLT(6X16)

€ 1.50

20

6467948G00
ref: 20

WASHER,RR HUB DRIVEN JOINT

€ 4.00

21

6467748G00
ref: 21

WASHER,THRUST

€ 9.50

22

6511048G00
ref: 22
65110-48G01

TIRE,RR,240/40

€ 350.50

22

6511048G00
ref: 22
65110-48G01

TIRE,RR,240/40

€ 350.50

23

4313024A00
ref: 23

VALVE ASSY,WHEEL RIM(TR412)

€ 7.00

24-1

4322273H10
ref: 24-1

WEIGHT,WHEEL BALANCE 10G

€ 4.00

24-2

4322473H10
ref: 24-2

WEIGHT,WHEEL BALANCE 20G

€ 5.00

24-3

4322673H10
ref: 24-3

WEIGHT,WHEEL BALANCE 30G

€ 6.00
