REAR FENDER (VZR1800K9/NK9)

VZR1800N BOULEVARD M109R 2007 (K7) CALIFORNIA (E33)

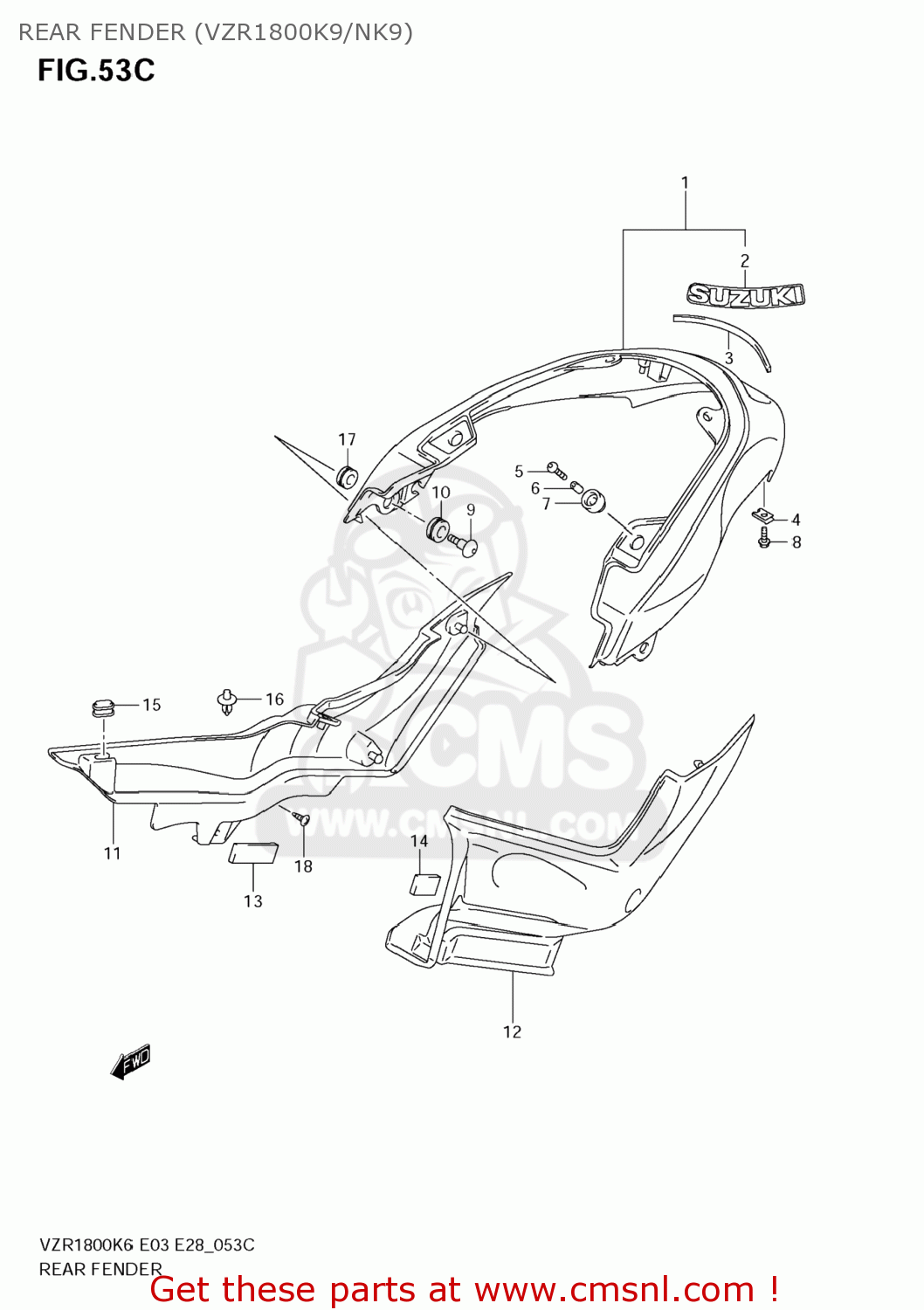

Rear fender (vzr1800k9/nk9) diagram VZR1800N BOULEVARD M109R 2007 (K7) CALIFORNIA (E33)

REAR FENDER (VZR1800K9/NK9) VZR1800N BOULEVARD M109R 2007 (K7) CALIFORNIA (E33)

REAR FENDER (VZR1800K9/NK9) VZR1800N BOULEVARD M109R 2007 (K7) CALIFORNIA (E33)

prices are in EUR

ref

part #

description

quantity

1-1

6311048G00YAY
ref: 1-1

FENDER,RR

€ 927.50

1-2

6311048G00YMD
ref: 1-2

FENDER,RR

€ 281.00

1-3

6311048G00YMK
ref: 1-3

FENDER,RR

€ 324.00

2-1

6864119F00YD8
ref: 2-1

EMBLEM,SUZUKI

€ 10.00

2-2

6864119F0017U
ref: 2-2

EMBLEM(GRAY)

€ 8.00

3

6311739G00
ref: 3

CUSHION,RR FENDER RR COVER

€ 2.50

4

9448424F00
ref: 4

NUT,COWL

€ 4.00

5

0913906030
ref: 5

SCREW(6X16)

€ 3.50

6

0918006286
ref: 6

SPACER(6.5X10X9.4)

€ 2.50

7

0932010045
ref: 7

CUSHION

€ 3.50

8

0913906120
ref: 8

SCREW(6X16)

€ 3.00

9

0913906126
ref: 9

SCREW(6X20)

€ 4.00

10

0932009016
ref: 10

CUSHION

€ 2.50

11-1

6317148G00YAY
ref: 11-1
63171-48G01-YAY

COVER,REAR FEN

€ 227.00

11-2

6317148G00YMD
ref: 11-2

COVER,RR FENDER,R

€ 90.00

11-3

6317148G00YMK
ref: 11-3

COVER,REAR FEN

€ 84.00

12-1

6318148G00YAY
ref: 12-1
63181-48G01-YAY

COVER,REAR FEN

€ 268.50

12-2

6318148G00YMD
ref: 12-2

COVER,RR FENDER,L

€ 92.00

12-3

6318148G00YMK
ref: 12-3

COVER,RR FENDER,L

€ 72.00

13

1543970G10
ref: 13

CUSHION,FUEL PIPE

€ 2.50

14

4716119C00
ref: 14

CUSHION,FRAME COVER

€ 1.50

15

4427629G00
ref: 15

CUSHION,FUEL TANK COVER

€ 3.50

16

09409063145PK
ref: 16

CLIP(BLACK)

€ 3.50

17

0932008028
ref: 17

CUSHION

€ 2.50

18

035410516A
ref: 18

SCREW

€ 1.50
