CRANKSHAFT

VZR1800Z BOULEVARD M109R 2008 (K8) CALIFORNIA (E33)

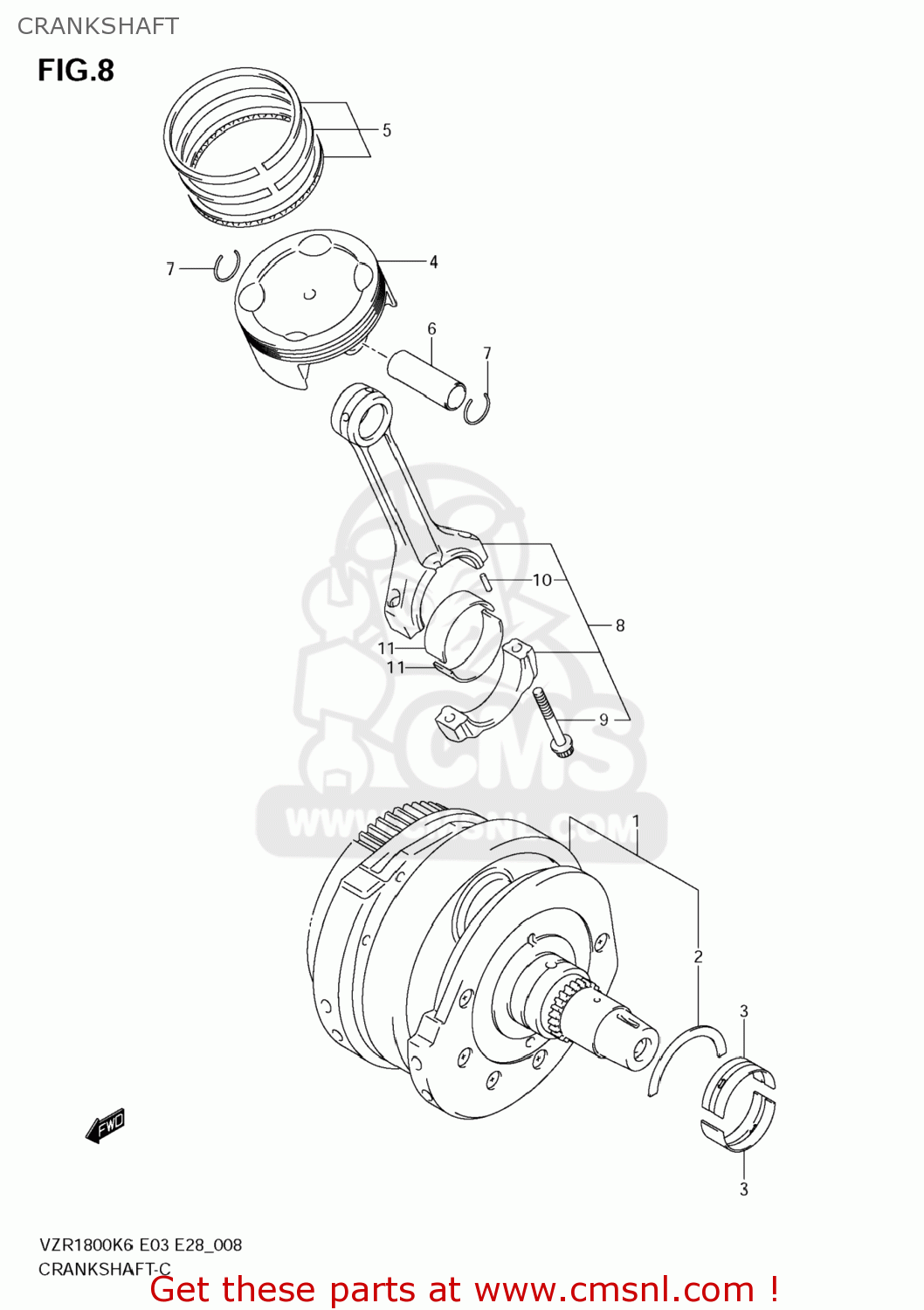

Crankshaft diagram VZR1800Z BOULEVARD M109R 2008 (K8) CALIFORNIA (E33)

CRANKSHAFT VZR1800Z BOULEVARD M109R 2008 (K8) CALIFORNIA (E33)

CRANKSHAFT VZR1800Z BOULEVARD M109R 2008 (K8) CALIFORNIA (E33)

prices are in EUR

ref

part #

description

quantity

1

1200048831
ref: 1

CRANKSHAFT SET

€ 1,637.00

2-1

1222848G000A0
ref: 2-1

WASHER,CRANK THRUST

€ 8.50

2-2

1222848G000B0
ref: 2-2

WASHER,CRANK THRUST

€ 8.50

2-3

1222848G000C0
ref: 2-3

WASHER,CRANK THRUST

€ 8.50

2-4

1222848G000D0
ref: 2-4

WASHER,CRANK THRUST

€ 8.50

2-5

1222848G000E0
ref: 2-5

WASHER,CRANK THRUST

€ 8.50

2-6

1222848G000F0
ref: 2-6

WASHER,CRANK THRUST

€ 8.50

3-1

1222948G000A0
ref: 3-1

BEARING,CRANKSHAFT

€ 16.00

3-2

1222948G000B0
ref: 3-2

BEARING,CRANKSHAFT

€ 18.50

3-3

1222948G000C0
ref: 3-3

BEARING,CRANKSHAFT

€ 18.50

3-4

1222948G000D0
ref: 3-4

BEARING,CRANKSHAFT

€ 18.50

3-5

1222948G000E0
ref: 3-5

BEARING,CRANKSHAFT

€ 15.00

4

1211148G000F0
ref: 4

PISTON

€ 181.00

5

1214048G00
ref: 5

RING SET,PISTON

€ 72.50

6

1215148G00
ref: 6

PIN,PISTON

€ 19.00

7

0938123003
ref: 7

CIRCLIP

€ 1.50

8

1216048G00
ref: 8

CONNECTING ROD ASSY

€ 179.00

9

1216306G00
ref: 9

BOLT,CONNECTING ROD

€ 12.00

10

0422104089
ref: 10

PIN

€ 1.50

11-1

1216448G000A0
ref: 11-1

BEARING,CRANK PIN

€ 14.00

11-2

1216448G000B0
ref: 11-2

BEARING,CRANK PIN

€ 14.00

11-3

1216448G000C0
ref: 11-3

BEARING,CRANK PIN

€ 14.00

11-4

1216448G000D0
ref: 11-4

BEARING,CRANK PIN

€ 14.00
