REAR CALIPER

VZR1800Z BOULEVARD M109R 2008 (K8) CALIFORNIA (E33)

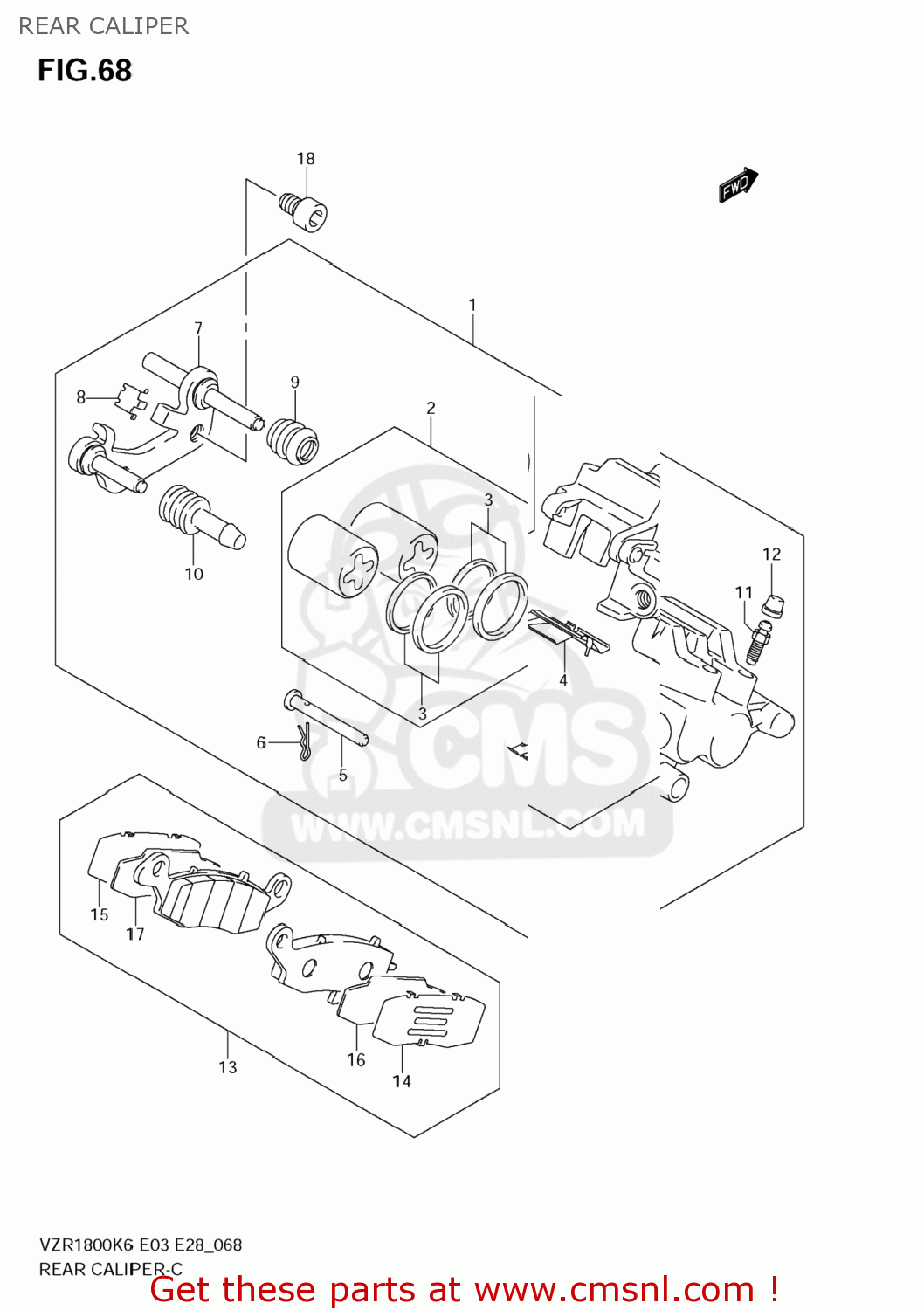

Rear caliper diagram VZR1800Z BOULEVARD M109R 2008 (K8) CALIFORNIA (E33)

REAR CALIPER VZR1800Z BOULEVARD M109R 2008 (K8) CALIFORNIA (E33)

REAR CALIPER VZR1800Z BOULEVARD M109R 2008 (K8) CALIFORNIA (E33)

prices are in EUR

ref

part #

description

quantity

1

6910001D40999
ref: 1

CALIPER ASSY,RR

€ 356.50

2

6910001840
ref: 2

PISTON SET

€ 96.00

3

5930033841
ref: 3

SEAL SET,PISTON

€ 26.50

4

6911501D40
ref: 4

SPRING,PAD

€ 11.50

5

6914101D40
ref: 5

PIN,PAD

€ 8.50

6

6914245000
ref: 6

CLIP,PAD PIN

€ 4.50

7

6915001D40
ref: 7

CARRIER,CALIPER

€ 98.50

8

5911633D00
ref: 8

GUIDE,PAD

€ 6.50

9

5911244B00
ref: 9

BOOT,AXLE

€ 8.00

10

5911301D00
ref: 10

INSULATOR,AXLE

€ 7.00

11

5912103B00
ref: 11

BLEEDER

€ 13.50

12

5515666310
ref: 12

CAP,BLEEDER PLUG

€ 6.00

13

6910001870
ref: 13

PAD & SHIM SET (NAS)

€ 65.00

14

5917133D00
ref: 14

SHIM,PAD

€ 10.00

15

5917233D00
ref: 15

SHIM,PAD NO.2

€ 10.50

16

6917101D40
ref: 16

INSULATOR NO.1

€ 16.50

17

6917201D40
ref: 17

INSULATOR NO.2

€ 16.50

18

071301016A
ref: 18

BOLT

€ 2.50
