FRAME HANDLE GRIP

VZR1800Z BOULEVARD M109R 2011 (L1) USA CALIF CANAD (E03 E33 E28)

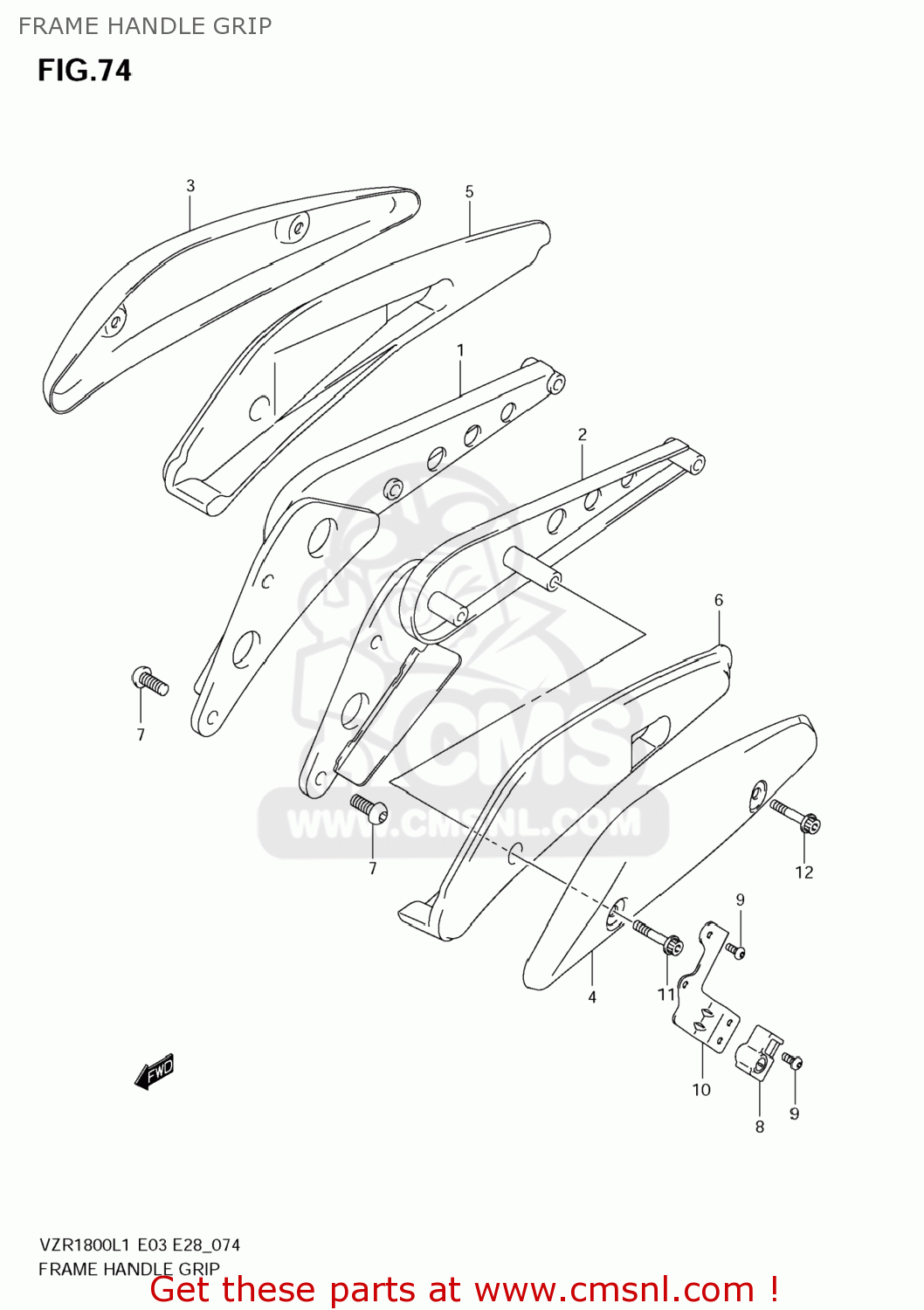

Frame handle grip diagram VZR1800Z BOULEVARD M109R 2011 (L1) USA CALIF CANAD (E03 E33 E28)

prices are in EUR

ref

part #

description

quantity

4161048G10
ref: 1

GRIP,FRAME HANDLE,R

€ 99.00

4162048G10
ref: 2

GRIP,FRAME HANDLE,L

€ 99.00

4161648G10
ref: 3

PLATE,FRAME HANDLE,R

€ 175.00

4162648G10
ref: 4

PLATE,FRAME HANDLE,L

€ 175.00

4161548G10
ref: 5

RUBBER,FRAME HANDLE GRIP,R

€ 51.50

4162548G10
ref: 6

RUBBER,FRAME HANDLE GRIP,L

€ 51.50

0913910003
ref: 7

BOLT(10X25)

€ 6.00

9570041821
ref: 8

LOCK SET,HELMET

€ 88.00

0913906089
ref: 9

SCREW(6X14)

€ 2.50

9571048G00
ref: 10

BRACKET,HELMET LOCK

€ 7.50

0910608182
ref: 11

BOLT(8X70)

€ 4.00

0910608183
ref: 12

BOLT(8X50)

€ 3.00
