FRONT WHEEL (VZR1800Z L1 E3)

VZR1800Z BOULEVARD M109R 2011 (L1) USA CALIF CANAD (E03 E33 E28)

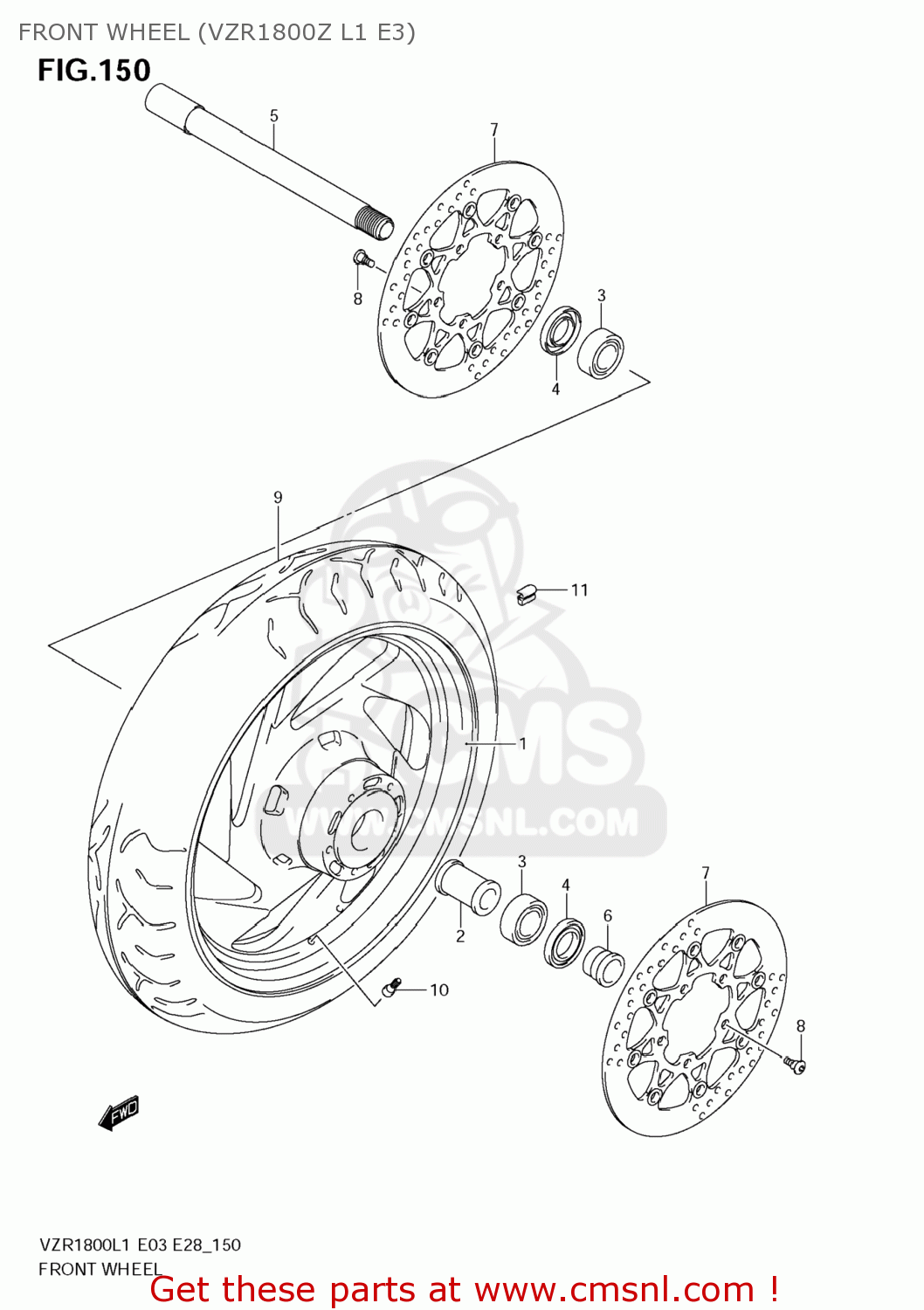

Front wheel (vzr1800z l1 e3) diagram VZR1800Z BOULEVARD M109R 2011 (L1) USA CALIF CANAD (E03 E33 E28)

FRONT WHEEL (VZR1800Z L1 E3) VZR1800Z BOULEVARD M109R 2011 (L1) USA CALIF CANAD (E03 E33 E28)

FRONT WHEEL (VZR1800Z L1 E3) VZR1800Z BOULEVARD M109R 2011 (L1) USA CALIF CANAD (E03 E33 E28)

prices are in EUR

ref

part #

description

quantity

1

5411148G20019
ref: 1

WHEEL,FR(18M/CXMT3.50)

€ 1,208.50

1

5411148G20019
ref: 1

WHEEL,FR(18M/CXMT3.50)

€ 1,208.50

2

5473148G00
ref: 2

SPACER,FR WHEEL BEARING

€ 27.00

3

0926225072
ref: 3

BEARING(25X52X15)

€ 14.00

4

0928532004
ref: 4

SEAL,OIL(32X52X7)

€ 8.00

5

5471148G00
ref: 5

AXLE,FR

€ 94.50

6

5474148G00
ref: 6

SPACER,FR AXLE,L

€ 20.50

7

5921041G10
ref: 7

DISC,FR BRAKE

€ 303.50

8

0910608160
ref: 8

BOLT(8X21)

€ 3.50

9

5511048G00
ref: 9
55110-48G01

TIRE,FR,130/70

€ 178.00

9

5511048G00
ref: 9
55110-48G01

TIRE,FR,130/70

€ 178.00

10

4313024A00
ref: 10

VALVE ASSY,WHEEL RIM(TR412)

€ 7.00

11-1

4322273H20
ref: 11-1

BALANCER,WHEEL NO.1

€ 3.50

11-2

4322473H20
ref: 11-2

BALANCER,WHEEL NO.2

€ 4.00

11-3

4322673H20
ref: 11-3

BALANCER,WHEEL NO.3

€ 4.50
