CYLINDER

DR-Z125 2003 (K3) USA (E03) DRZ125 DR Z125

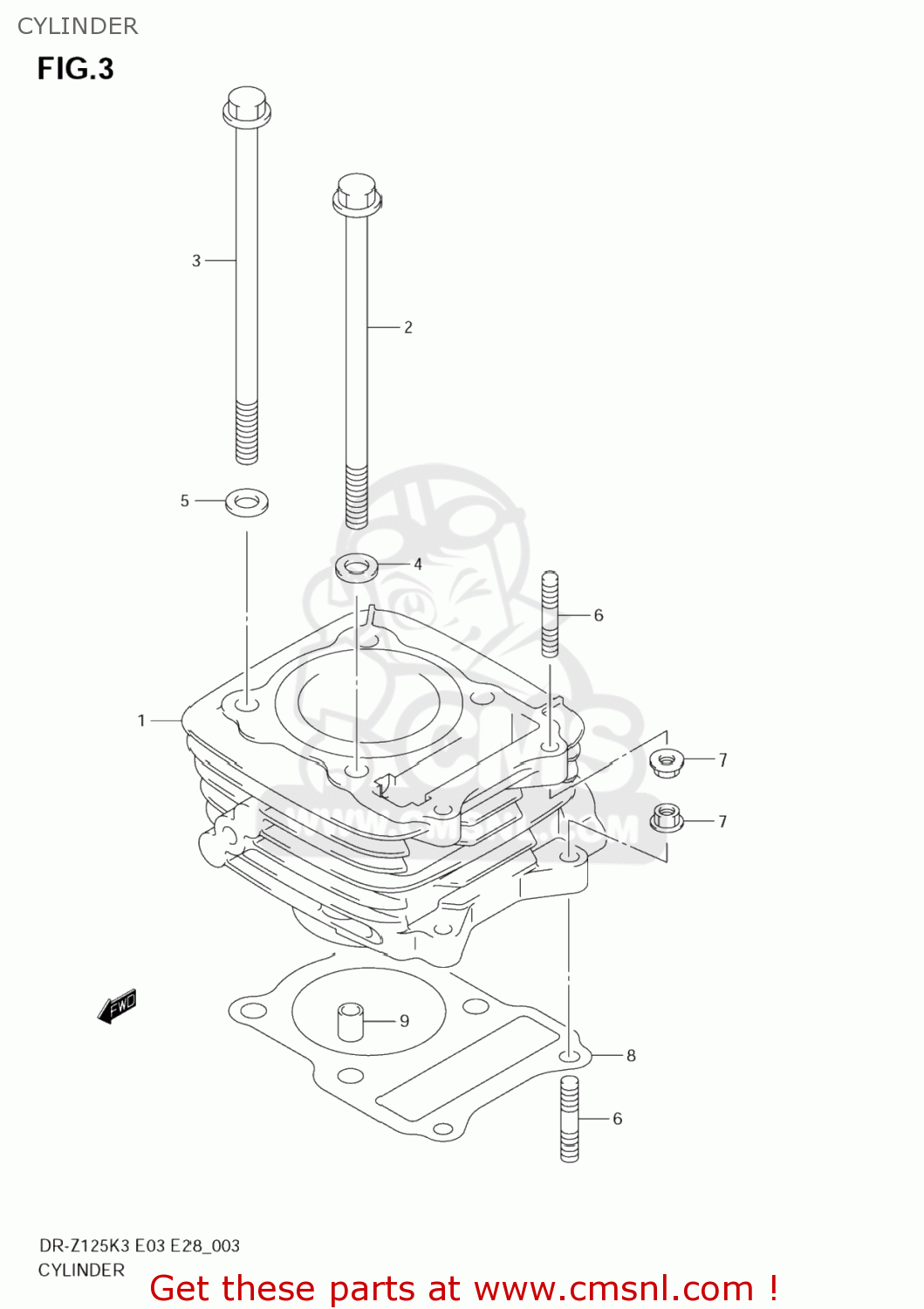

Cylinder diagram DR-Z125 2003 (K3) USA (E03) DRZ125 DR Z125

prices are in EUR

ref

part #

description

quantity

1-1

1121044A110F0
ref: 1-1

CYLINDER

€ 252.00

1-2

11210052030F0
ref: 1-2

CYLINDER

€ 255.50

0910308378
ref: 2

BOLT(8X155)

€ 4.50

0910308379
ref: 3

BOLT(8X165)

€ 4.50

0916008053
ref: 4
09160-08039

WASHER (8.5X19X2.3)

€ 2.00

0916808021
ref: 5

GASKET(8.5X17X2.3) (NAS)

€ 3.00

0142106253
ref: 6
01421-0625A

STUD BOLT

€ 2.00

0831610063
ref: 7
08316-1006B

NUT

€ 2.50

1124105311
ref: 8

GASKET,CYLINDER (NAS)

€ 4.50

0421111149
ref: 9

PIN

€ 2.00
