REAR BRAKE

DR-Z125 2003 (K3) USA (E03) DRZ125 DR Z125

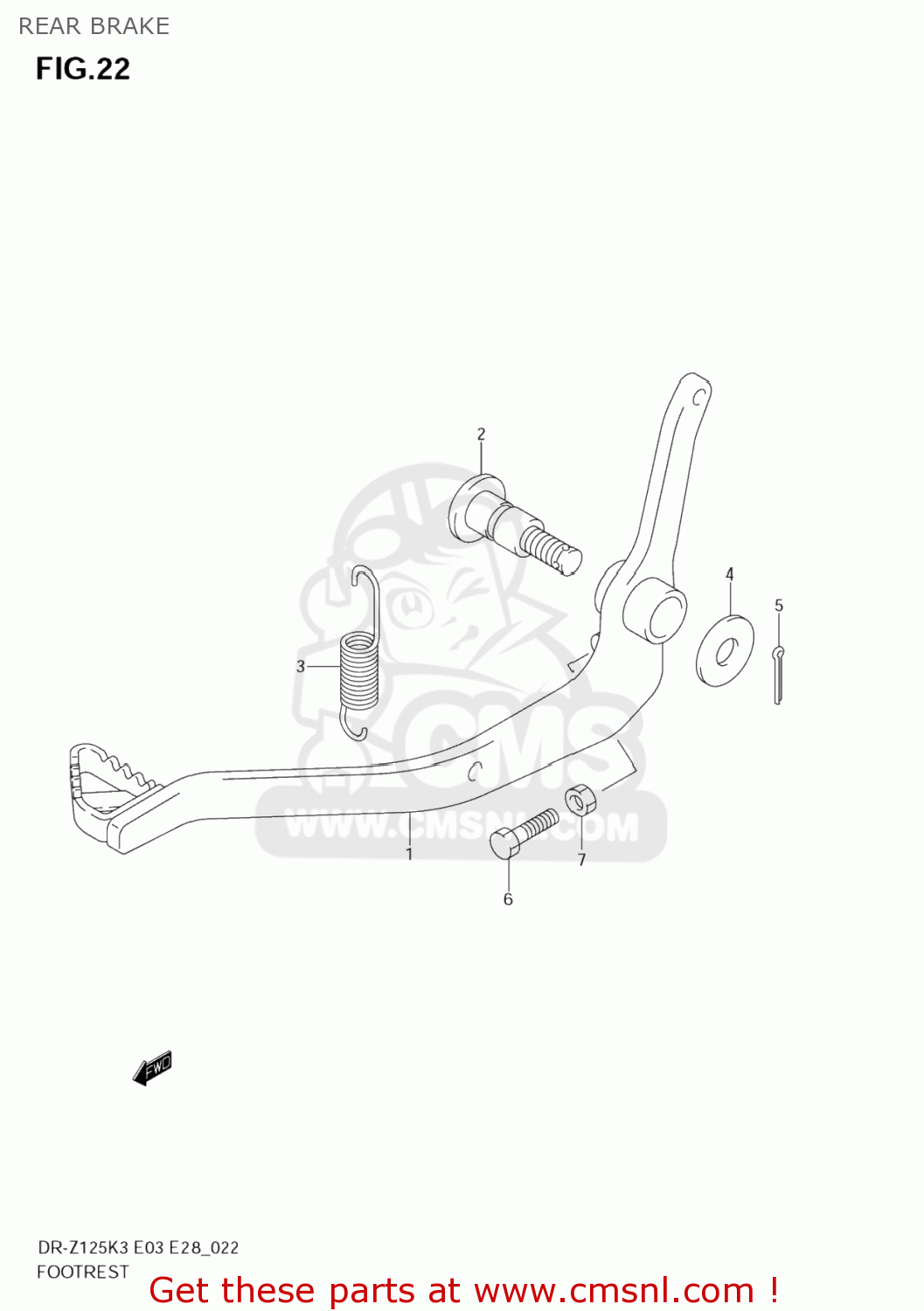

Rear brake diagram DR-Z125 2003 (K3) USA (E03) DRZ125 DR Z125

REAR BRAKE DR-Z125 2003 (K3) USA (E03) DRZ125 DR Z125

REAR BRAKE DR-Z125 2003 (K3) USA (E03) DRZ125 DR Z125

prices are in EUR

ref

part #

description

quantity

1

4311008G00
ref: 1

PEDAL,BRAKE

€ 48.00

2

4314227C00
ref: 2

SHAFT,BRAKE PEDAL

€ 15.00

3

0944313029
ref: 3

SPRING

€ 5.00

4

0821110261
ref: 4

WASHER

€ 2.50

5

0411120208
ref: 5
04111-2020A

PIN 20X20

€ 1.50

6

0910006064
ref: 6

BOLT(6X18)

€ 1.50

7

0831000063
ref: 7
08310-0006A

NUT 6MM

€ 2.00
