CRANKCASE

DR-Z125 2006 (K6) USA (E03) DRZ125 DR Z125

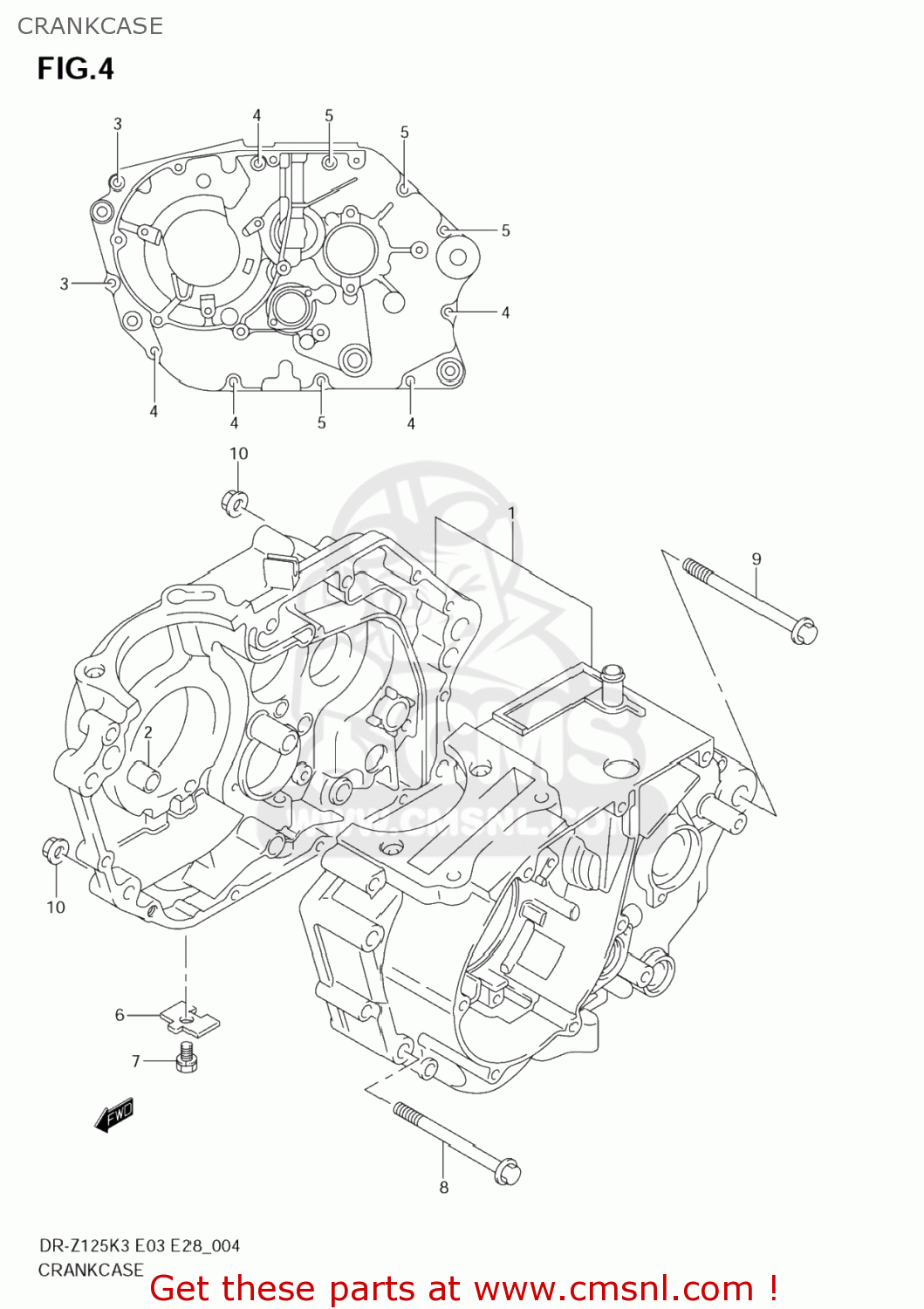

Crankcase diagram DR-Z125 2006 (K6) USA (E03) DRZ125 DR Z125

prices are in EUR

ref

part #

description

quantity

1-1

1130008G01
ref: 1-1

CRANKCASE ASSY

€ 510.00

1-2

1130008G10
ref: 1-2

CRANKCASE ASSY

€ 0.00

1-3

1130008G20
ref: 1-3

CRANKCASE ASSY

€ 461.50

0421113189
ref: 2

PIN

€ 2.50

3-1

0154706453
ref: 3-1
01547-0645B

BOLT

€ 3.00

3-2

015470645A
ref: 3-2

BOLT

€ 2.50

4-1

0154706603
ref: 4-1
01547-0660B

BOLT

€ 3.50

4-2

015470660A
ref: 4-2

BOLT

€ 2.50

5-1

0154706753
ref: 5-1
01547-0675B

BOLT

€ 2.00

5-2

015470675A
ref: 5-2

BOLT

€ 2.00

1131905200
ref: 6

PLATE,OIL GALLERY PLUG

€ 2.50

7-1

0150006103
ref: 7-1
01500-0610B

BOLT

€ 2.00

7-2

015000610A
ref: 7-2

BOLT

€ 2.00

0910308016
ref: 8

BOLT(8X80)

€ 8.00

0910308010
ref: 9

BOLT(8X88)

€ 55.50

0831931088
ref: 10
08319-3108A

NUT

€ 2.50
