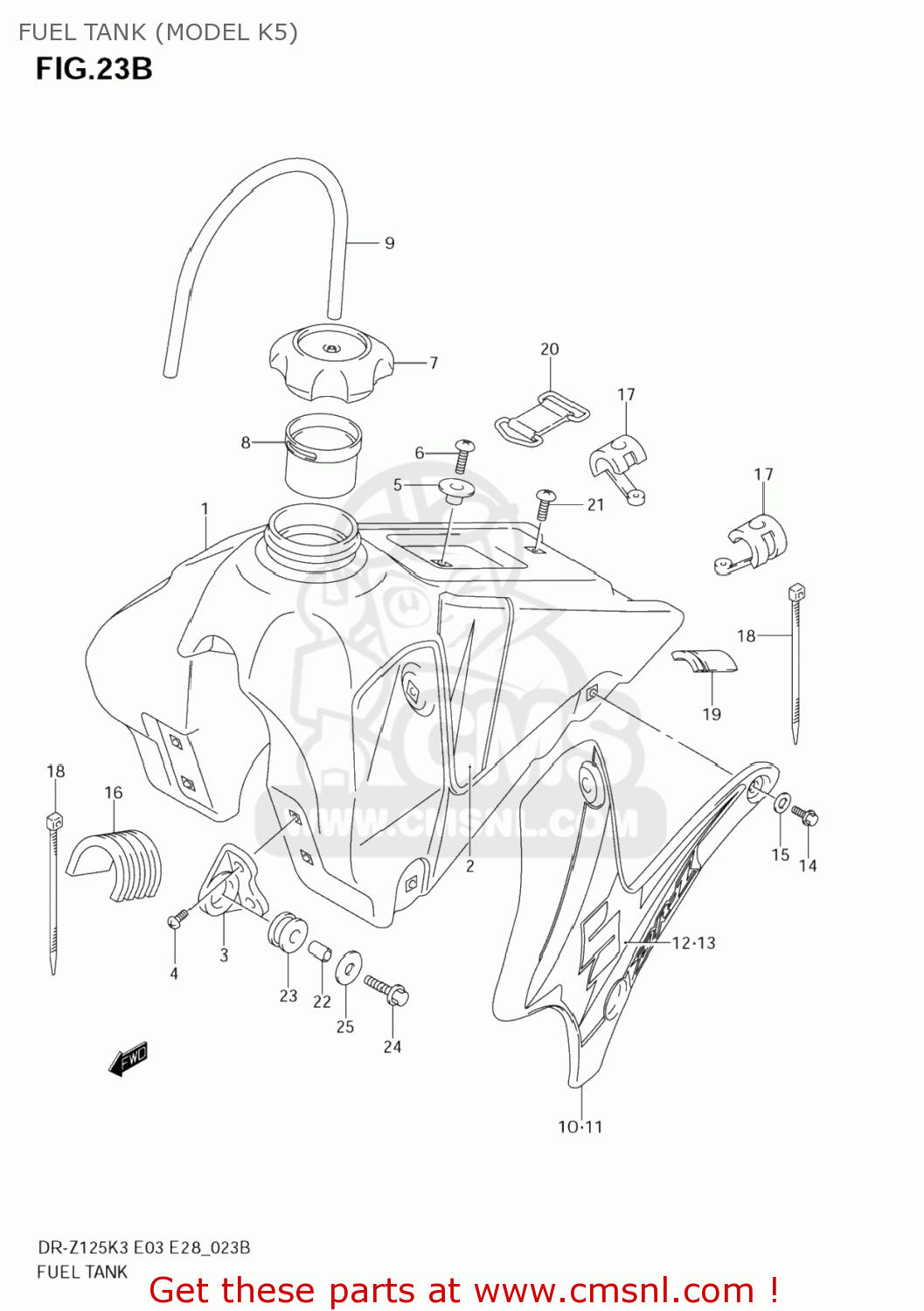

FUEL TANK (MODEL K5)

ref

part #

description

quantity

1-1

4410008G20YU1
ref: 1-1

TANK ASSY,FUEL(YELLOW)

€ 413.00

1-2

4410008G30YBH
ref: 1-2

TANK ASSY,FUEL(BLACK)

€ 0.00

2-1

6811008G30BEV
ref: 2-1

TAPE SET,FUEL TANK

€ 170.00

2-2

6811008G20AZR
ref: 2-2

TAPE SET,FUEL TANK

€ 0.00

3

4413127C01
ref: 3

BRACKET,FUEL TANK FR

€ 6.50

4

0154706123
ref: 4
01547-0612B

BOLT

€ 2.00

5

4413227C01
ref: 5

HOOK,SEAT FR

€ 39.00

6

0214206203
ref: 6
02142-0620A

SCREW

€ 2.00

7

4420029F00
ref: 7

CAP ASSY,FUEL TANK FILLER

€ 42.50

8

4419919A00
ref: 8

TUBE,FILLER INLET

€ 4.00

9

0935250823600
ref: 9
44420-44AR0

HOSE(5X8.2X600)

€ 13.00

10-1

4417108G00YU1
ref: 10-1
44171-08G10-YU1

COVER, TANK FRONT RH (YELLOW)

€ 25.50

10-2

4417108G00YJ4
ref: 10-2

COVER,FUEL TANK,R

€ 18.50

11-1

4418108G00YU1
ref: 11-1
44181-08G10-YU1

COVER, TANK FRONT LH (YELLOW)

€ 25.50

11-2

4418108G00YJ4
ref: 11-2

COVER,FUEL TANK,L

€ 18.50

12-1

6811508G20YHB
ref: 12-1

TAPE,FUEL TANK COVER,R

€ 80.00

12-2

6811508G20YHU
ref: 12-2

TAPE,FUEL TANK COVER,R

€ 0.00

13-1

6811608G20YHB
ref: 13-1

TAPE,FUEL TANK COVER,L

€ 81.00

13-2

6811608G20YHU
ref: 13-2

TAPE, FRONT COVER LH

€ 0.00

14

0154706123
ref: 14
01547-0612B

BOLT

€ 2.00

15

0916906060
ref: 15

WASHER

€ 2.00

16

4454113E10
ref: 16

CUSHION,FUEL TANK

€ 13.00

17

4454108G00
ref: 17

CUSHION,FUEL TANK SIDE

€ 6.00

18

0940730402
ref: 18

CLAMP(L:300)

€ 3.50

19

4454208G00
ref: 19

CUSHION,FUEL TANK RR

€ 6.00

20

4456044E00
ref: 20

BAND,FUEL TANK RR

€ 8.50

21

0214206163
ref: 21
02142-0616A

SCREW

€ 2.50

22

0918006268
ref: 22

SPACER(6.5X9X13.5)

€ 2.00

23

4451108G00
ref: 23

CUSHION,FUEL TANK FR

€ 17.50

24

0154706253
ref: 24
01547-0625B

SCREW

€ 2.50

25

0916006114
ref: 25

WASHER(6.5X24X1.2)

€ 2.00
