MAGNETO

DR-Z125 2007 (K7) USA (E03) DRZ125 DR Z125

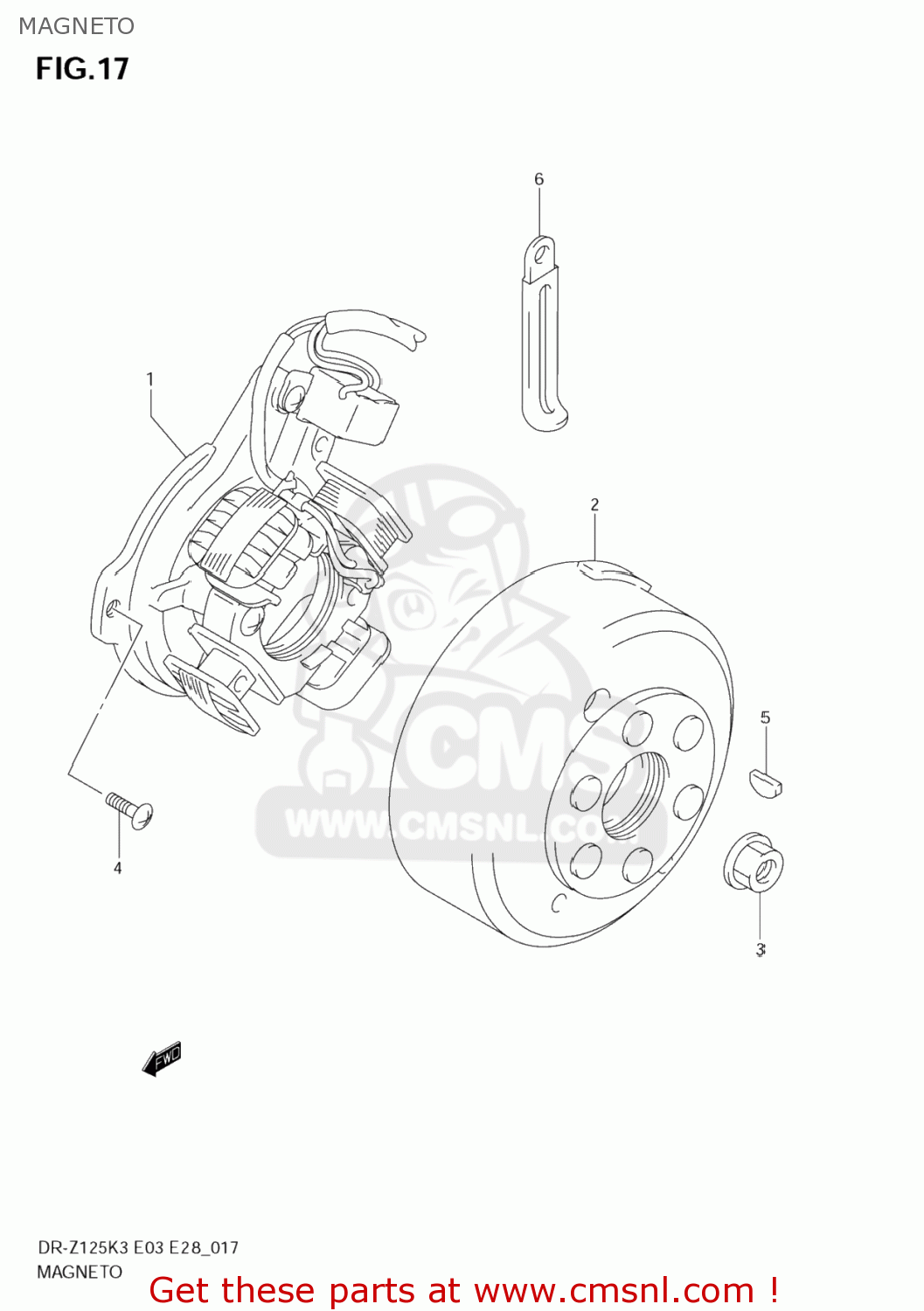

Magneto diagram DR-Z125 2007 (K7) USA (E03) DRZ125 DR Z125

MAGNETO DR-Z125 2007 (K7) USA (E03) DRZ125 DR Z125

MAGNETO DR-Z125 2007 (K7) USA (E03) DRZ125 DR Z125

prices are in EUR

ref

part #

description

quantity

1

3210108G00
ref: 1

STARTER ASSY

€ 217.00

2

3210208G00
ref: 2

ROTOR ASSY

€ 217.00

3

0915910110
ref: 3

NUT

€ 2.00

4

0214205123
ref: 4
02142-0512A

SCREW 5X12

€ 1.50

5

0834131039
ref: 5

KEY

€ 2.00

6

0940406433
ref: 6

CLAMP(L:80)

€ 3.00
