SEAT (MODEL K5/K6/K7)

DR-Z125 2007 (K7) USA (E03) DRZ125 DR Z125

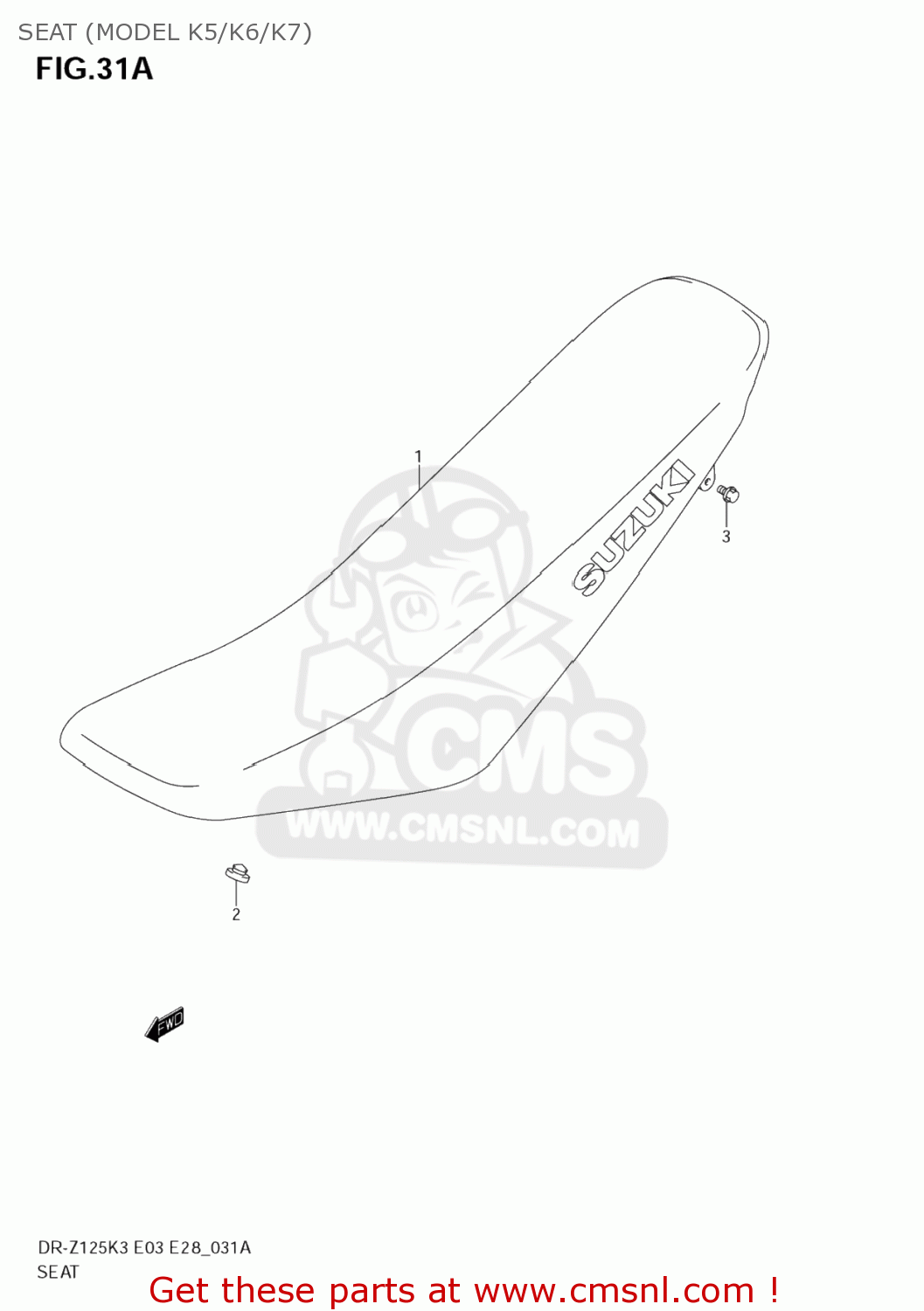

Seat (model k5/k6/k7) diagram DR-Z125 2007 (K7) USA (E03) DRZ125 DR Z125

SEAT (MODEL K5/K6/K7) DR-Z125 2007 (K7) USA (E03) DRZ125 DR Z125

SEAT (MODEL K5/K6/K7) DR-Z125 2007 (K7) USA (E03) DRZ125 DR Z125

prices are in EUR

ref

part #

description

quantity

1-1

4510008G20BAE
ref: 1-1

SEAT ASSY

€ 0.00

1-2

4510008G20BDL
ref: 1-2

SEAT ASSY

€ 223.00

1-3

4510008G20CEP
ref: 1-3

SEAT ASSY

€ 205.50

1-4

4510008G20DTU
ref: 1-4

SEAT ASSY

€ 257.50

1-5

4510008G20DUY
ref: 1-5

SEAT ASSY

€ 223.50

2

0932910001
ref: 2

CUSHION

€ 2.50

3

0155006103
ref: 3
01550-0610A

BOLT

€ 2.50
