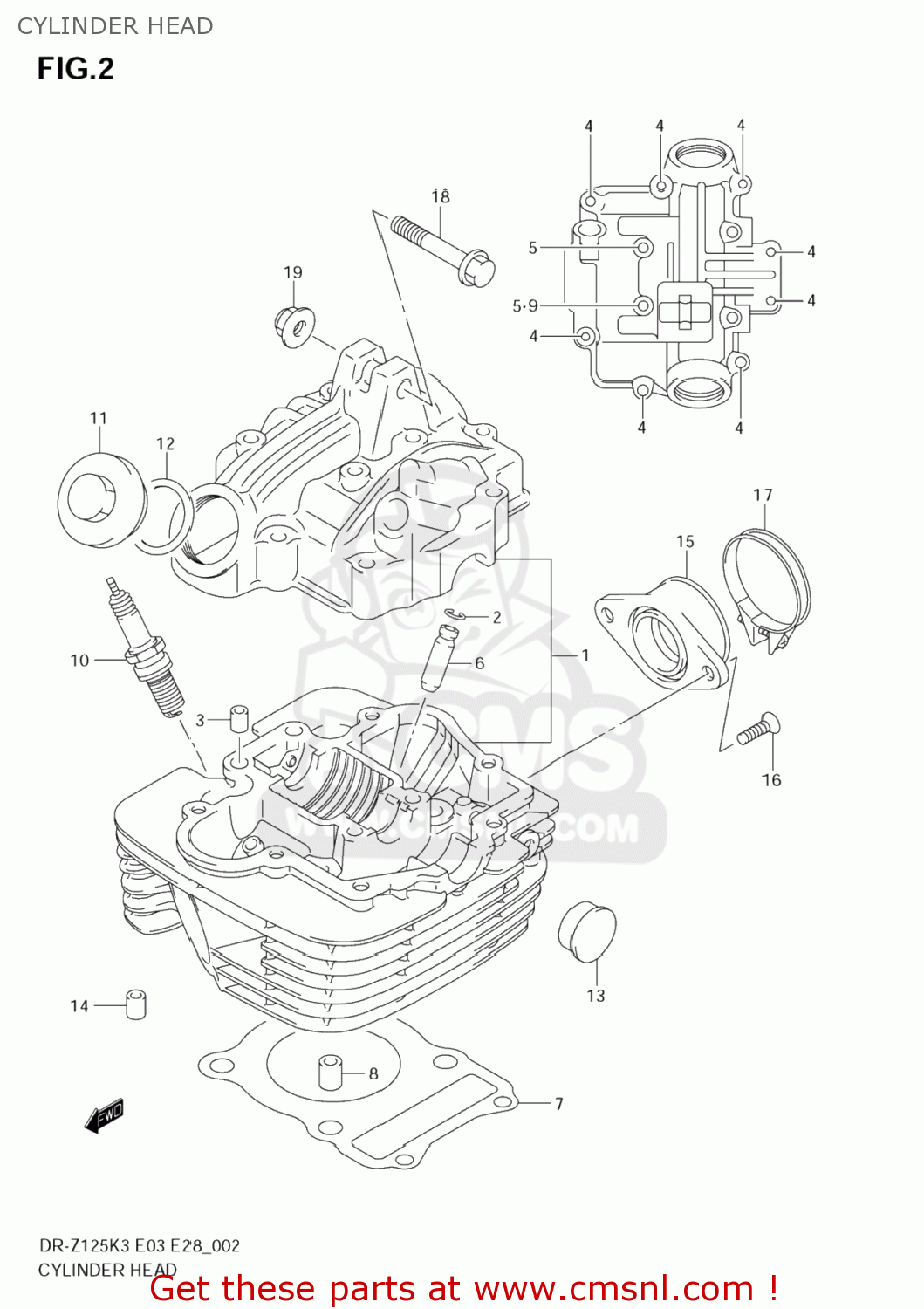

CYLINDER HEAD

ref

part #

description

quantity

1-1

1110008G00
ref: 1-1

HEAD ASSY,CYLINDER

€ 585.00

1-2

1110005330
ref: 1-2

HEAD ASSY,CYLINDER

€ 327.50

2

0938110004
ref: 2

RING,SNAP

€ 1.50

3

0920608001
ref: 3

PIN(6.2X8X11)

€ 2.00

4

0155006353
ref: 4
01550-0635A

BOLT

€ 2.50

5

0155006603
ref: 5
01550-0660A

BOLT

€ 2.50

6

1111505270
ref: 6

GUIDE,VALVE

€ 18.50

7

1114105202
ref: 7

GASKET.CYLINDER HEAD (NAS)

€ 7.50

8

0421111169
ref: 8

PIN

€ 2.00

9

0916806023
ref: 9

GASKET(5.8X13X1.2) (NAS)

€ 2.00

10-1

0948200223
ref: 10-1

PLUG,SPARK(X24ESR-U)

€ 3.50

10-2

0948200399
ref: 10-2

PLUG,SPARK(DR8EA)

€ 3.50

11

1117518900
ref: 11
11175-37111

CAP,INSPECTION

€ 14.00

12

0928030001
ref: 12

O RING(D:3,ID:29.5)

€ 2.00

13

0924122002
ref: 13

PLUG(OD:22.5)

€ 5.50

14

1115145000
ref: 14

PAD,CYLINDER HEAD

€ 3.00

15

1310108G00
ref: 15

PIPE ASSY,INTAKE

€ 19.00

16

0211206163
ref: 16
02112-0616A

SCREW 6X16

€ 2.00

17

0940246208
ref: 17

CLAMP

€ 4.50

18

0910308081
ref: 18

BOLT(8X50)

€ 3.50

19-1

0831931088
ref: 19-1
08319-3108A

NUT

€ 2.50

19-2

083193108A
ref: 19-2

NUT

€ 2.50
