FRAME

DR-Z125L 2004 (K4) USA (E03) DRZ125L DR Z125L

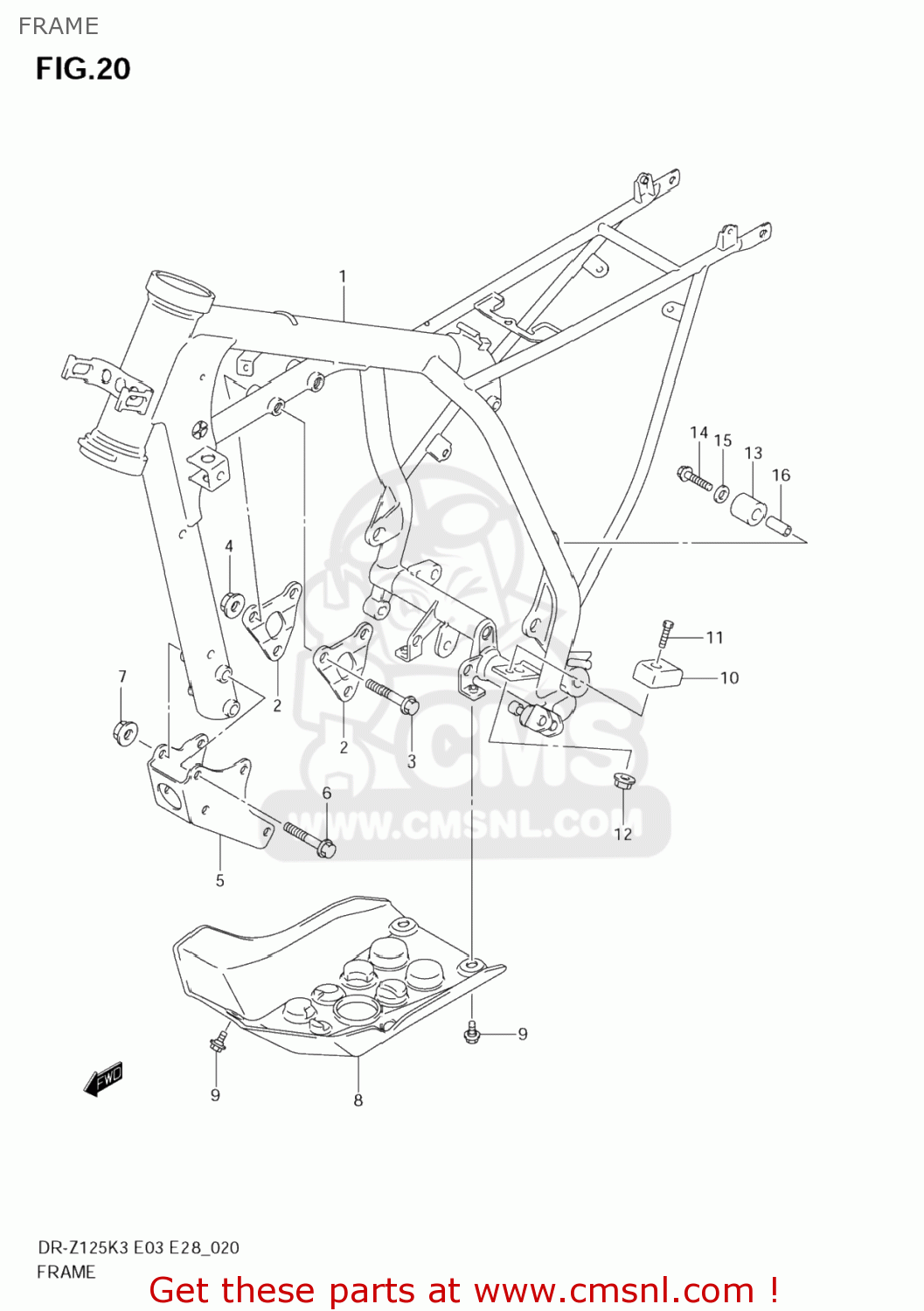

Frame diagram DR-Z125L 2004 (K4) USA (E03) DRZ125L DR Z125L

prices are in EUR

ref

part #

description

quantity

4110008G00YU8
ref: 1

FRAME(SILVER)

€ 866.00

4199108G00
ref: 2

PLATE,ENG MTG UPR

€ 6.00

0910308332
ref: 3

BOLT(8X53)

€ 3.50

0831931088
ref: 4
08319-3108A

NUT

€ 2.50

4199208G00YU8
ref: 5

PLATE,ENG MTG LWR

€ 22.50

0910308354
ref: 6

BOLT(8X65)

€ 4.00

0831931088
ref: 7
08319-3108A

NUT

€ 2.50

4251108G00
ref: 8

PROTECTOR,ENGINE

€ 30.50

6316143E00
ref: 9

BOLT

€ 3.00

4391242A00
ref: 10

GUIDE,CH LENGTH CONTROL LWR

€ 13.50

0912806049
ref: 11

BOLT(6X16)

€ 2.00

0831931063
ref: 12
08319-3106A

NUT

€ 2.50

4391113E10
ref: 13

ROLLER,CHAIN CONTROL UPR

€ 17.00

0910308178
ref: 14

BOLT(8X38)

€ 5.00

0821108201
ref: 15

WASHER

€ 2.00

0918008215
ref: 16

SPACER(8.6X12.2X26.5)

€ 4.00

FRAME

all assemblies
