HANDLEBAR

DR-Z125L 2005 (K5) USA (E03) DRZ125L DR Z125L

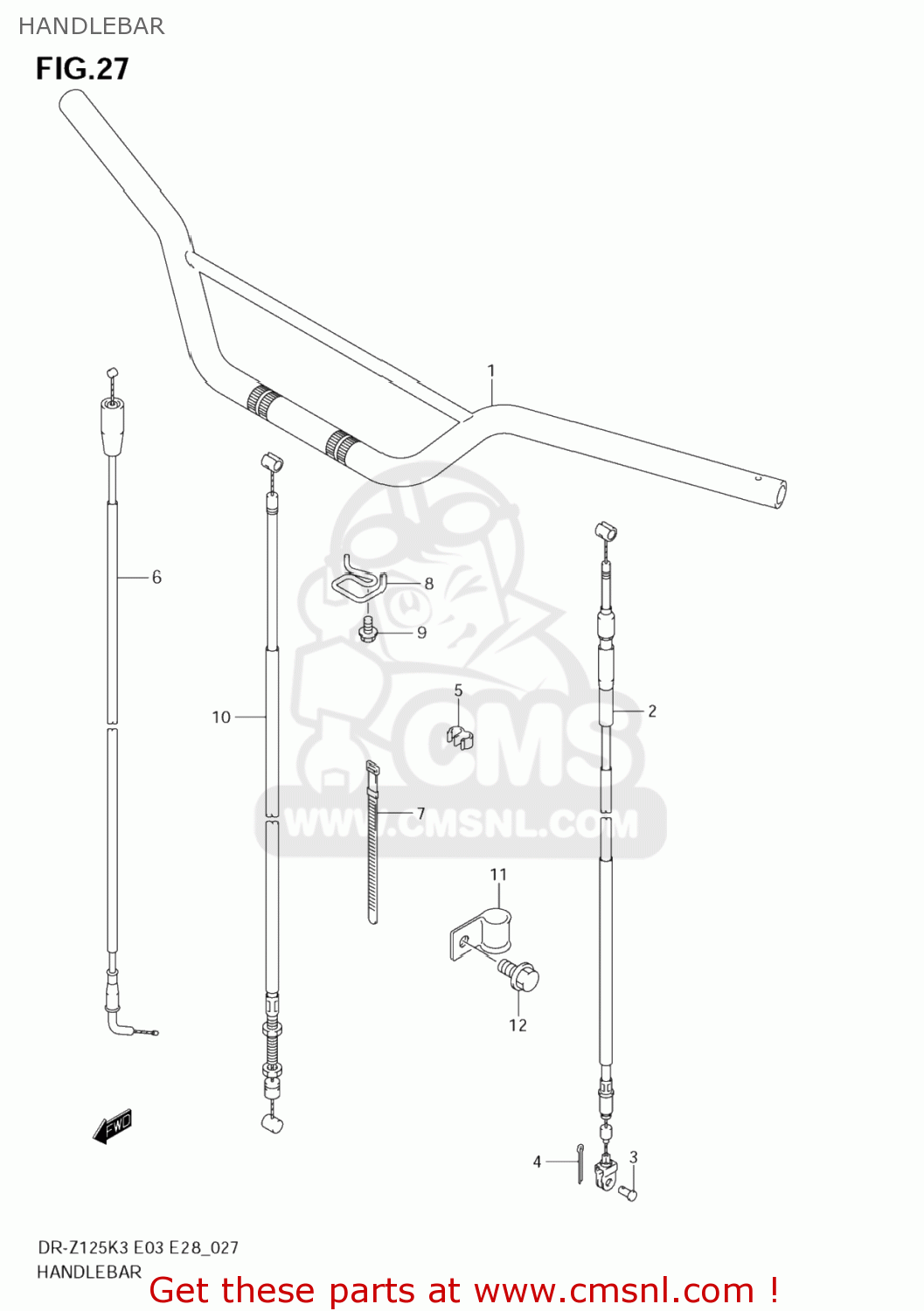

Handlebar diagram DR-Z125L 2005 (K5) USA (E03) DRZ125L DR Z125L

HANDLEBAR DR-Z125L 2005 (K5) USA (E03) DRZ125L DR Z125L

HANDLEBAR DR-Z125L 2005 (K5) USA (E03) DRZ125L DR Z125L

prices are in EUR

ref

part #

description

quantity

1

5611008G0013L
ref: 1

HANDLEBAR(SILVER)

€ 75.50

2

5820008G00
ref: 2

CABLE ASSY,CLUTCH

€ 25.00

3

0920006004
ref: 3

PIN(L:13)

€ 1.50

4

0411120158
ref: 4
04111-2015A

PIN

€ 1.50

5

0940317402
ref: 5

CLAMP

€ 2.50

6

5830008G00
ref: 6

CABLE ASSY,THROTTLE

€ 22.50

7

0940711402
ref: 7

CLAMP(L:90)

€ 2.50

8

5862108G00
ref: 8

GUIDE,CABLE

€ 8.50

9

0155006123
ref: 9
01550-0612A

BOLT

€ 2.50

10

5811008G00
ref: 10

CABLE,FR BRAKE

€ 31.50

11

5862208G00
ref: 11

CLAMP,FR BRAKE CABLE

€ 7.00

12

0154706103
ref: 12
01547-0610B

BOLT

€ 3.00
