REAR WHEEL (DR-Z125K3)

DR-Z125L 2005 (K5) USA (E03) DRZ125L DR Z125L

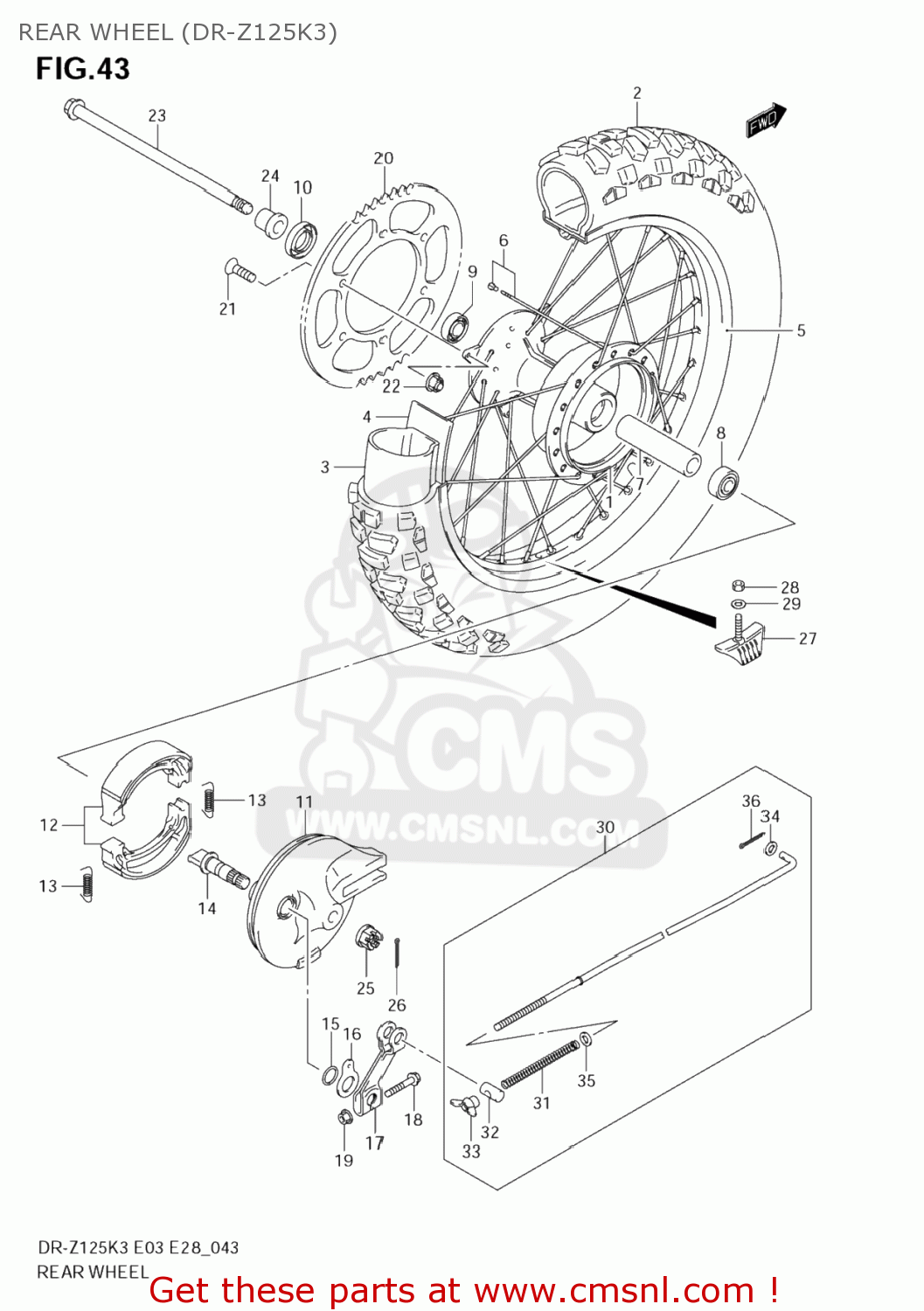

Rear wheel (dr-z125k3) diagram DR-Z125L 2005 (K5) USA (E03) DRZ125L DR Z125L

REAR WHEEL (DR-Z125K3) DR-Z125L 2005 (K5) USA (E03) DRZ125L DR Z125L
REAR WHEEL (DR-Z125K3) DR-Z125L 2005 (K5) USA (E03) DRZ125L DR Z125L
REAR WHEEL (DR-Z125K3) DR-Z125L 2005 (K5) USA (E03) DRZ125L DR Z125L
prices are in EUR
ref
part #
description
quantity
1
6411008G00
ref: 1
64110-08G01
HUB,RR WHEEL
€ 215.00
2
6511008G00
ref: 2
TIRE,RR
€ 72.50
3
6520008G00
ref: 3
TUBE ASSY,WHEEL INNER
€ 25.00
4
6526108G00
ref: 4
55261-09D00
PROTECTOR,WHL INR TUBE
€ 3.50
5
6531108G00
ref: 5
RIM,RR WHEEL(14X1.60)
6531108G00
€ 64.50
6
6532008G00
ref: 6
SPOKE SET,RR WHEEL
6532008G00
€ 56.00
7
0918012148
ref: 7
SPACER(12.5X19X105.5)
€ 7.00
8
0814362017
ref: 8
BEARING
0814362017
€ 11.50
9
0812363017
ref: 9
BEARING
0812363017
€ 13.50
10
0928320025
ref: 10
SEAL,OIL(20X37X7)
0928320025
€ 6.50
11
6421008G00
ref: 11
PANEL,RR BRAKE ANCHOR
€ 85.00
12
5440143840
ref: 12
SHOE SET,BRAKE (NAS)
5440143840
€ 24.00
13
0944307044
ref: 13
SPRING
0944307044
€ 3.00
14
6444113G00
ref: 14
CAM,RR BRAKE
€ 12.50
15
0928014011
ref: 15
O RING(D:2.5,ID:13.8)
0928014011
€ 3.50
16
5449213G00
ref: 16
PLATE,BRAKE LINING INDICATOR
€ 5.50
17
6445108G00
ref: 17
LEVER,RR BRAKE CAM
€ 13.50
18
0155006353
ref: 18
01550-0635A
BOLT
0155006353
€ 2.50
19
0831610063
ref: 19
08316-1006B
NUT
0831610063
€ 2.50
20
6451108G00
ref: 20
SPROCKET,RR(51T-428)
€ 43.50
21
0912008010
ref: 21
BOLT(8X30.5)
0912008010
€ 2.50
22
0831931087
ref: 22
NUT
0831931087
€ 2.50
23
6471108G10
ref: 23
AXLE,RR
€ 27.00
24
6475108G00
ref: 24
SPACER,RR AXLE
€ 10.00
25
0915912027
ref: 25
NUT
0915912027
€ 9.00
26
0411125308
ref: 26
04111-2530A
PIN, COTTER
0411125308
€ 1.50
27
6527008G00
ref: 27
STOPPER,BEAD
6527008G00
€ 34.00
28
0831000083
ref: 28
08310-0008A
NUT
0831000083
€ 1.50
29
0832201083
ref: 29
08322-0108A
WASHER
0832201083
€ 1.50
30
4330008G00
ref: 30
ROD ASSY,RR BRAKE
€ 13.00
31
0944009004
ref: 31
SPRING
0944009004
€ 2.00
32
0920911002
ref: 32
PIN(11X18)
0920911002
€ 2.00
33
0914406005
ref: 33
NUT
0914406005
€ 2.50
34
0832201053
ref: 34
08322-0105A
WASHER
0832201053
€ 2.50
35
0832201063
ref: 35
08322-0106B
WASHER
0832201063
€ 2.00
36
0411120208
ref: 36
04111-2020A
PIN 20X20
0411120208
€ 1.50
