Buy Suzuki unknown Parts Online


AIR CLEANER

DR-Z125L 2012 (L2) USA (E03) DRZ125L DR Z125L

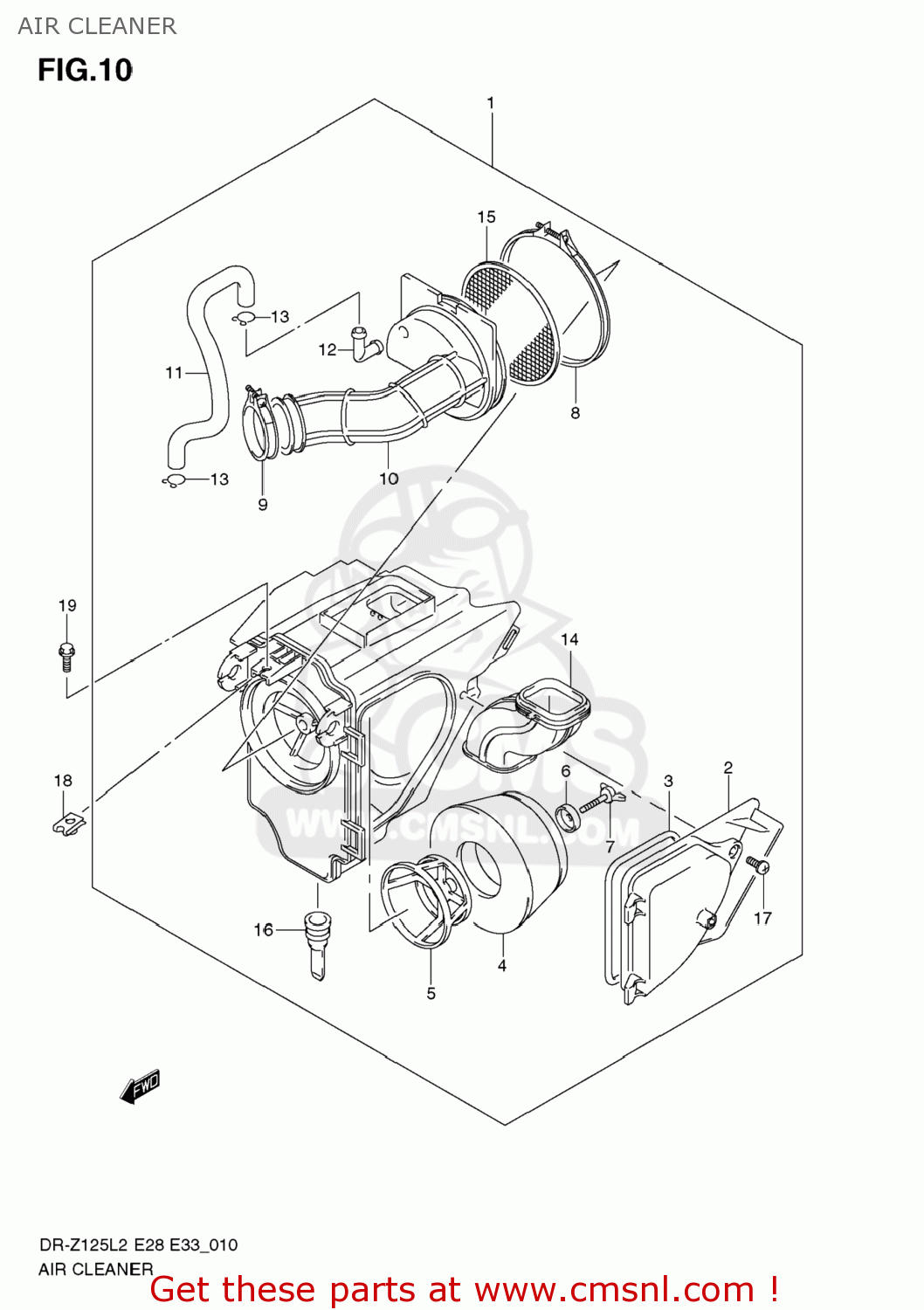

Air cleaner diagram DR-Z125L 2012 (L2) USA (E03) DRZ125L DR Z125L

AIR CLEANER DR-Z125L 2012 (L2) USA (E03) DRZ125L DR Z125L
AIR CLEANER DR-Z125L 2012 (L2) USA (E03) DRZ125L DR Z125L
AIR CLEANER DR-Z125L 2012 (L2) USA (E03) DRZ125L DR Z125L
prices are in EUR
ref
part #
description
quantity
1
1370008G01
ref: 1
CLEANER ASSY,AIR
€ 161.00
2
1374008G01
ref: 2
CAP,AIR CLEANER
€ 17.00
3
1374608G00
ref: 3
GASKET (NAS)
€ 5.50
4
1378008G00
ref: 4
FILTER
1378008G00
€ 28.50
5
1379108G00
ref: 5
HOLDER,FILTER
1379108G00
€ 8.50
6
1379213A01
ref: 6
WASHER,AIR CLEANER
1379213A01
€ 3.00
7
1383131G00
ref: 7
BOLT,WING
€ 5.00
8
1382614D01
ref: 8
CLAMP,OUTLET TUBE
1382614D01
€ 7.50
9
0940248208
ref: 9
CLAMP
0940248208
€ 4.50
10
1388108G00
ref: 10
TUBE,OUTLET
€ 35.50
11
1385308G00
ref: 11
TUBE,BREATHER
€ 14.50
12
1385814D20
ref: 12
JOINT
1385814D20
€ 6.00
13
0940114301
ref: 13
CLIP
0940114301
€ 2.00
14
1389108G00
ref: 14
TUBE,INLET
€ 17.00
15
1381003G00
ref: 15
TRAP,FLAME
€ 7.00
16
1368119B00
ref: 16
CAP,DRAIN
1368119B00
€ 3.00
17
021420516B
ref: 17
SCREW
021420516B
€ 2.50
18
0914806021
ref: 18
NUT
0914806021
€ 3.00
19
015500612B
ref: 19
BOLT
015500612B
€ 2.50
