SEAT

DR-Z125L 2012 (L2) USA (E03) DRZ125L DR Z125L

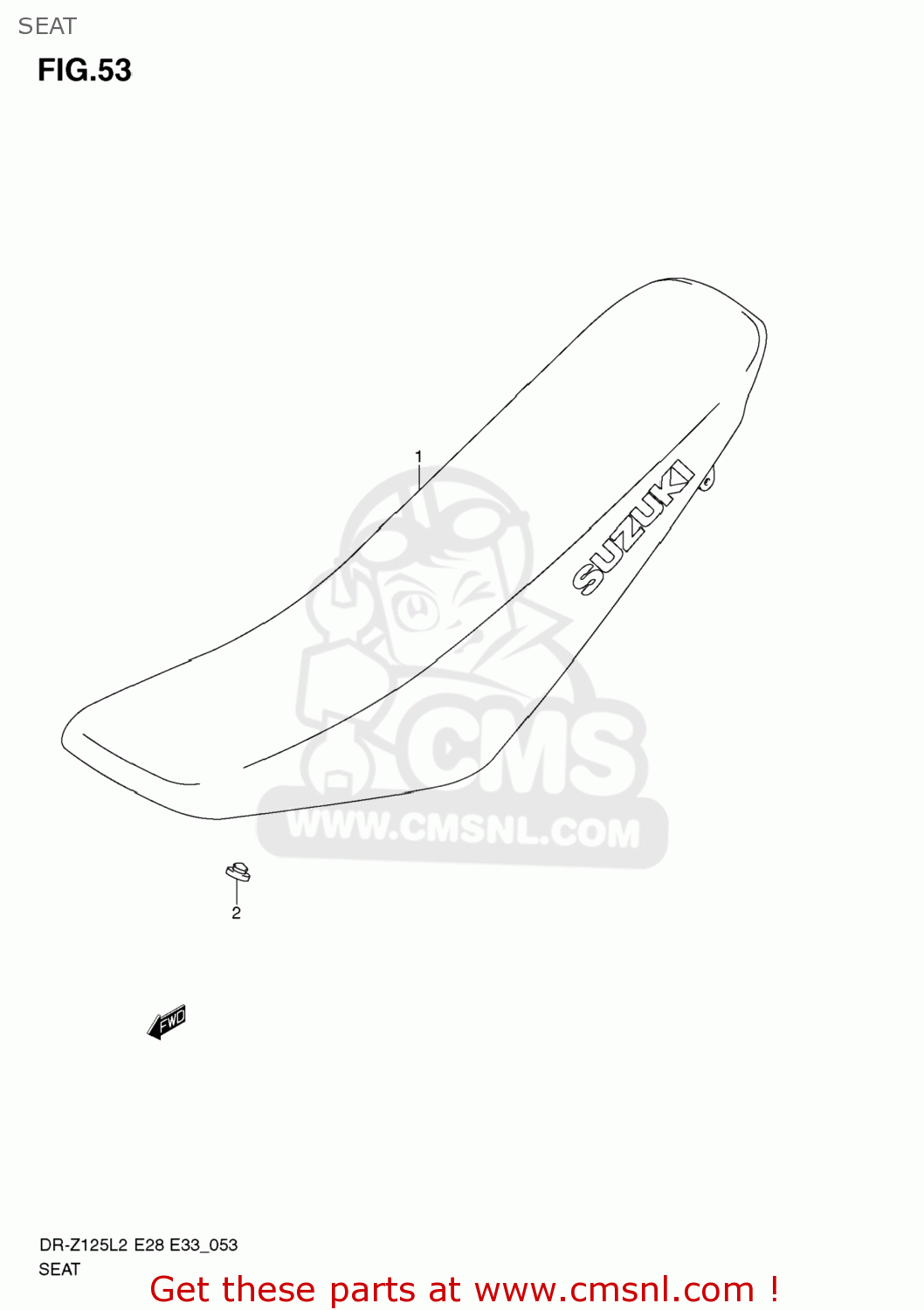

Seat diagram DR-Z125L 2012 (L2) USA (E03) DRZ125L DR Z125L

SEAT DR-Z125L 2012 (L2) USA (E03) DRZ125L DR Z125L

SEAT DR-Z125L 2012 (L2) USA (E03) DRZ125L DR Z125L

prices are in EUR

ref

part #

description

quantity

1

4510008G20GHA
ref: 1

SEAT ASSY (GRAY)

€ 0.00

2

0932910001
ref: 2

CUSHION

€ 2.50
