CARBURETOR (E33)

DR-Z250 2007 (K7) USA (E03) DRZ250 DR Z250

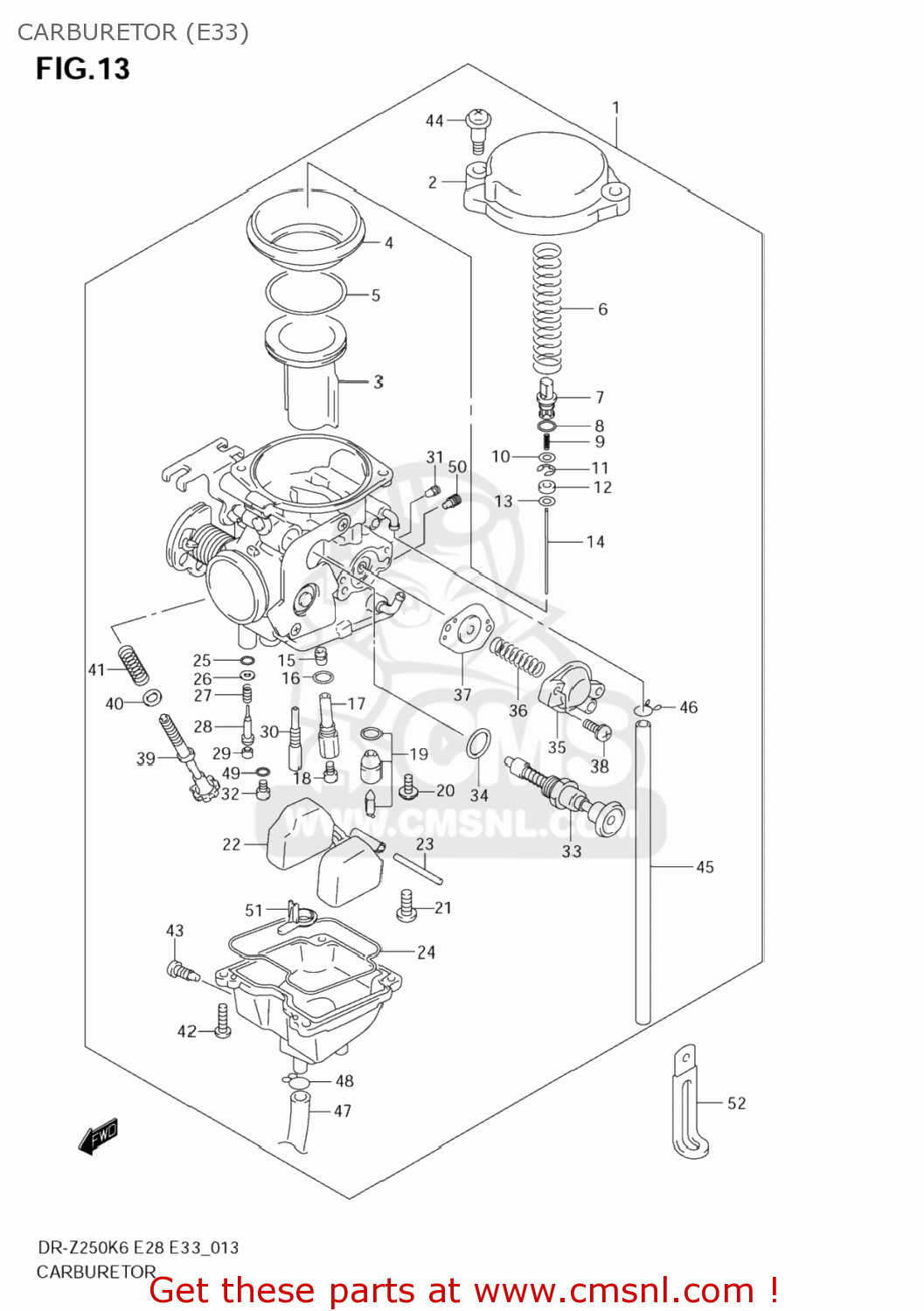

Carburetor (e33) diagram DR-Z250 2007 (K7) USA (E03) DRZ250 DR Z250

CARBURETOR (E33) DR-Z250 2007 (K7) USA (E03) DRZ250 DR Z250
CARBURETOR (E33) DR-Z250 2007 (K7) USA (E03) DRZ250 DR Z250
CARBURETOR (E33) DR-Z250 2007 (K7) USA (E03) DRZ250 DR Z250
prices are in EUR
ref
part #
description
quantity
1
1320013E41
ref: 1
CARBURETOR ASSY
€ 235.50
2
1350219E00
ref: 2
COVER,DIAPHRAGM
€ 47.00
3
1350113E20
ref: 3
VALVE,PISTON
1350113E20
€ 64.50
4
1350719E00
ref: 4
DIAPHRAGM
1350719E00
€ 33.50
5
1350416E00
ref: 5
RING
1350416E00
€ 4.00
6
1357313E20
ref: 6
SPRING
1357313E20
€ 10.00
7
1341833E00
ref: 7
HOLDER
1341833E00
€ 4.50
8
0928005004
ref: 8
O RING(D:1.9,ID:4.8)
0928005004
€ 2.00
9
1348113F00
ref: 9
SPRING
1348113F00
€ 4.00
10
1338219E00
ref: 10
WASHER
1338219E00
€ 3.00
11
1339417E60
ref: 11
E RING,MULTIPLE JET NOZZLE
1339417E60
€ 1.50
12
1338713F00
ref: 12
RING
1338713F00
€ 6.00
13
1329129FA0
ref: 13
WASHER
1329129FA0
€ 2.50
14
1338313E40
ref: 14
NEEDLE JET
€ 0.00
15
0949400939
ref: 15
JET
0949400939
€ 26.00
16
1324643010
ref: 16
O RING
1324643010
€ 4.00
17
1338513E40
ref: 17
HOLDER,JET
€ 0.00
18
0949126013
ref: 18
09491-26019
JET,MAIN (132.5)
0949126013
€ 18.50
19
1337004F00
ref: 19
VALVE ASSY,NEEDLE
1337004F00
€ 67.50
20
1360205A10
ref: 20
SCREW
1360205A10
€ 4.00
21
0211204083
ref: 21
02112-0408A
SCREW
€ 2.00
22
1325004F00
ref: 22
FLOAT ASSY
1325004F00
€ 27.50
23
1325401010
ref: 23
PIN,FLOAT
1325401010
€ 3.00
24
1325804F00
ref: 24
GASKET (NAS)
1325804F00
€ 9.00
25
1329529900
ref: 25
O RING,PILOT AIR SCREW
1329529900
€ 4.00
26
1329129900
ref: 26
WASHER
1329129900
€ 2.00
27
1326848700
ref: 27
SPRING,THROTTLE SCREW
1326848700
€ 3.50
28
1327913E40
ref: 28
ADJUSTER
€ 0.00
29
1328105A00
ref: 29
PLUG
1328105A00
€ 3.50
30
0949212008
ref: 30
JET,PILOT(12.5)
0949212008
€ 14.00
31
0949280007
ref: 31
JET(80)
€ 5.00
32
0949155004
ref: 32
JET,MAIN(55)
0949155004
€ 11.50
33
1341113E40
ref: 33
PLUNGER ASSY
€ 0.00
34
1327847090
ref: 34
O RING
1327847090
€ 2.00
35
1350210F00
ref: 35
COVER ASSY
1350210F00
€ 26.00
36
1327113F00
ref: 36
SPRING
1327113F00
€ 4.00
37
1348013F00
ref: 37
DIAPHRAGM ASSY
1348013F00
€ 21.50
38
1360104148
ref: 38
SCREW
1360104148
€ 2.50
39
1326713D01
ref: 39
ADJUSTER
1326713D01
€ 15.00
40
1328507F00
ref: 40
PACKING (NAS)
1328507F00
€ 3.50
41
1334282370
ref: 41
SPRING
€ 4.50
42
0211204107
ref: 42
SCREW
0211204107
€ 2.00
43
1324713A00
ref: 43
13247-02340
SCREW,DRAIN
1324713A00
€ 5.50
44
1324733E00
ref: 44
SCREW
1324733E00
€ 3.00
45
1368607F00
ref: 45
HOSE
€ 0.00
46
1367106A10
ref: 46
CLIP
€ 3.00
47
1368320B00
ref: 47
HOSE(4.5X8X650)
€ 8.00
48
0940108410
ref: 48
CLIP
€ 3.00
49
1338713E40
ref: 49
O RING
€ 0.00
50
0949230013
ref: 50
JET,POWER(150)
0949230013
€ 13.00
51
1338729FA1
ref: 51
RING
1338729FA1
€ 9.00
52
0940406429
ref: 52
CLAMP(L:45)
€ 2.50
