CYLINDER

DR-Z250 2007 (K7) USA (E03) DRZ250 DR Z250

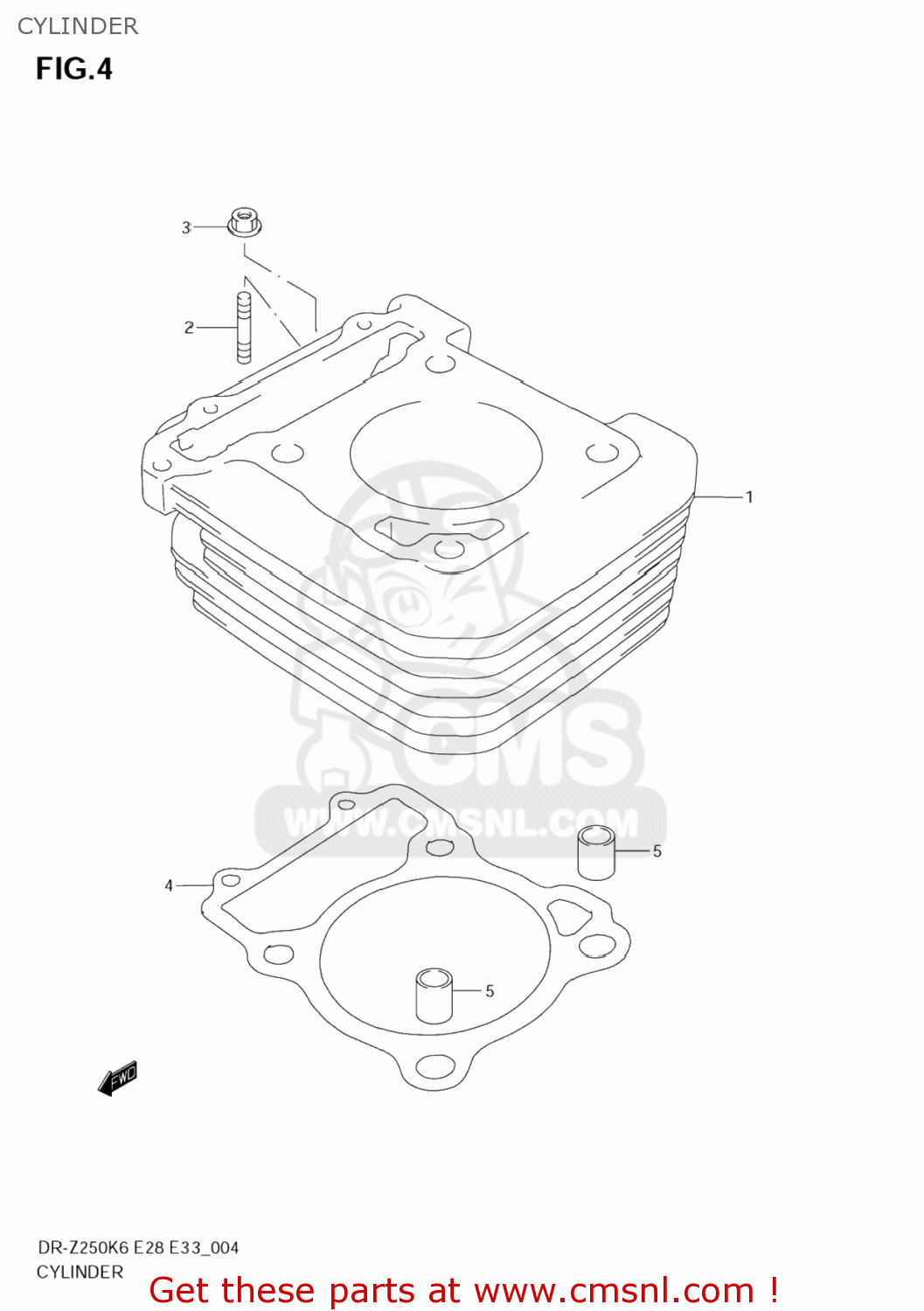

Cylinder diagram DR-Z250 2007 (K7) USA (E03) DRZ250 DR Z250

CYLINDER DR-Z250 2007 (K7) USA (E03) DRZ250 DR Z250

CYLINDER DR-Z250 2007 (K7) USA (E03) DRZ250 DR Z250

prices are in EUR

ref

part #

description

quantity

1

1121113E100F0
ref: 1

CYLINDER

€ 0.00

2-1

0142106203
ref: 2-1
01421-0620A

STUD,M6X1X32

€ 2.50

2-2

014210620B
ref: 2-2

BOLT,STUD

€ 2.00

3

0831610063
ref: 3
08316-1006B

NUT

€ 2.50

4

1124113E10
ref: 4

GASKET,CYLINDER

€ 17.00

5

0421113189
ref: 5

PIN

€ 2.50
