FRONT FENDER

DR-Z400E 2005 (K5) USA (E03) DRZ400E DR Z400E

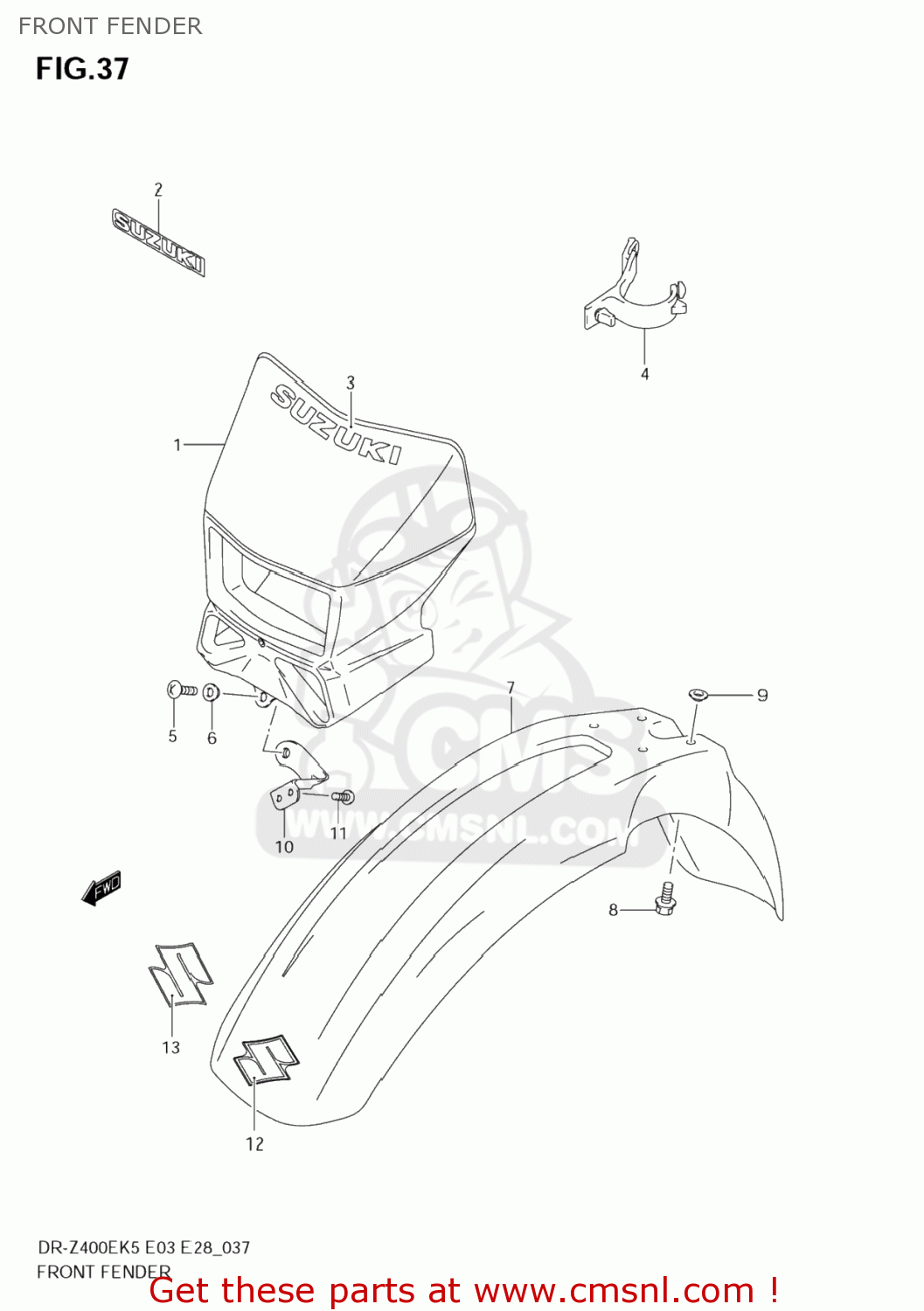

Front fender diagram DR-Z400E 2005 (K5) USA (E03) DRZ400E DR Z400E

prices are in EUR

ref

part #

description

quantity

1-1

5181029F1030H
ref: 1-1

COVER,HEADLAMP(WHITE)

€ 88.50

1-2

5181029F10YU1
ref: 1-2
51810-29F70-YU1

COVER, HEAD LAMP (YELLOW)

€ 97.00

1-3

5181029F70YU1
ref: 1-3

COVER,HEADLAMP

€ 97.00

6872129F008YM
ref: 2

EMBLEM,SUZUKI

€ 11.00

3-1

6872529F20CLM
ref: 3-1

TAPE,HEADLAMP HOUSING

€ 42.00

3-2

6872529F208YM
ref: 3-2

TAPE,HEADLAMP HOUSING

€ 0.00

5185029F00
ref: 4

BAND,HEADLAMP COVER

€ 13.50

0913605048
ref: 5

SCREW(5X12)

€ 3.00

0916905012
ref: 6

WASHER

€ 3.00

7-1

5311127C22YU1
ref: 7-1

FENDER,FR

€ 53.00

7-2

5311127CC0YU1
ref: 7-2
53111-27C22-YU1

FENDER,FR

€ 53.00

0911606170
ref: 8

BOLT(6X16)

€ 3.00

0916906073
ref: 9

WASHER

€ 4.00

5186029F10
ref: 10

BRACKET,HEADLAMP COVER

€ 8.50

0913906083
ref: 11

SCREW(6X16)

€ 2.50

6815137F00AZT
ref: 12

EMBLEM,S

€ 23.00

6815107G10YCF
ref: 13

EMBLEM,S

€ 10.50
