SEAT

DR-Z400E 2005 (K5) USA (E03) DRZ400E DR Z400E

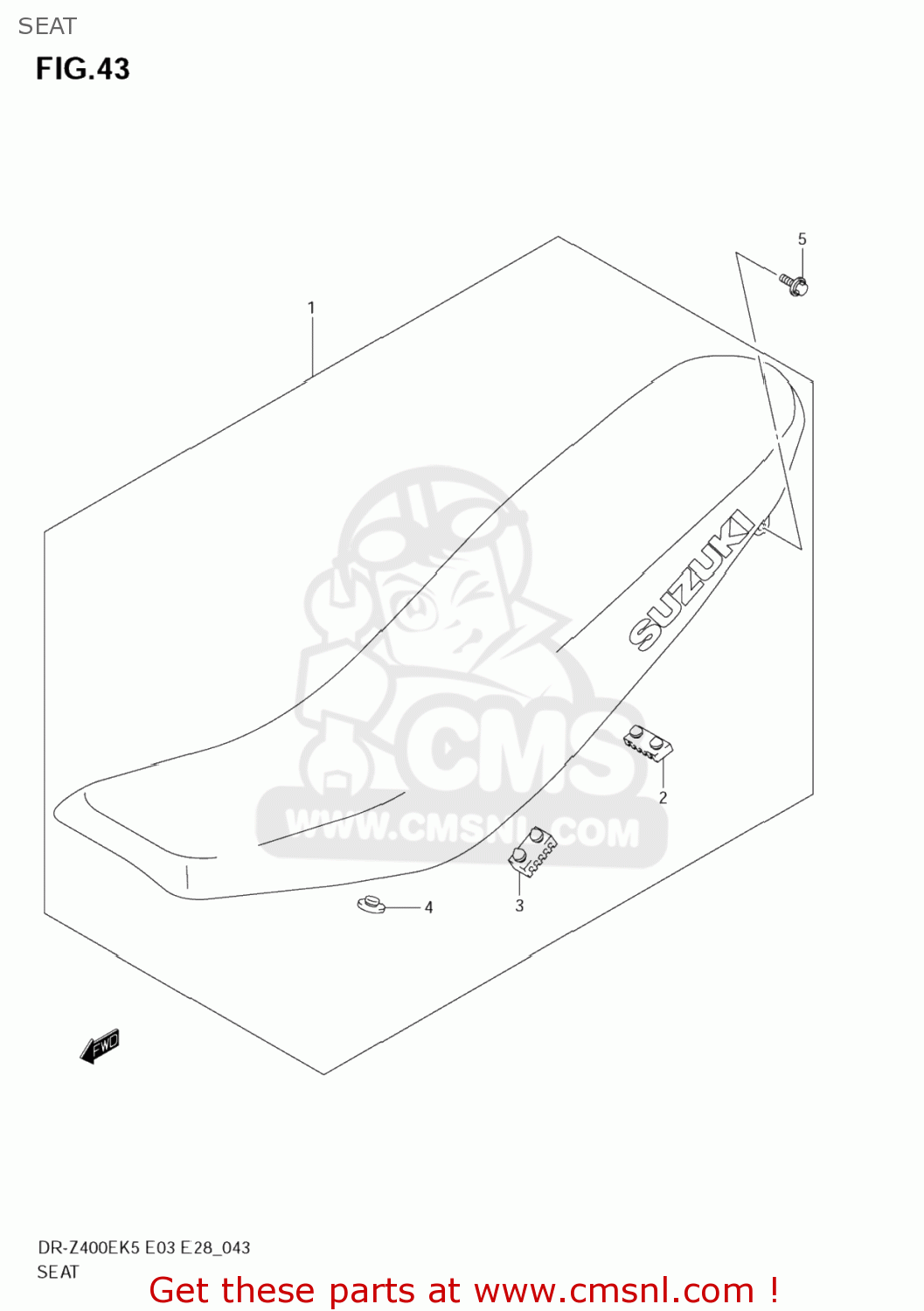

Seat diagram DR-Z400E 2005 (K5) USA (E03) DRZ400E DR Z400E

SEAT DR-Z400E 2005 (K5) USA (E03) DRZ400E DR Z400E

SEAT DR-Z400E 2005 (K5) USA (E03) DRZ400E DR Z400E

prices are in EUR

ref

part #

description

quantity

1-1

4510029F90BAE
ref: 1-1

SEAT ASSY

€ 330.00

1-2

4510029F90CEP
ref: 1-2

SEAT ASSY

€ 230.50

1-3

4510029F90DTU
ref: 1-3

SEAT ASSY

€ 307.00

2

4514912C00
ref: 2

CUSHION,SEAT(40X20X6)

€ 3.00

3

4514931300
ref: 3

CUSHION,SEAT(40X20X15)

€ 2.00

4

0932110022
ref: 4

CUSHION

€ 2.00

5-1

0911606182
ref: 5-1

BOLT(6X20)

€ 3.00

5-2

0911606188
ref: 5-2
09116-06182

BOLT

€ 3.00
