FRONT MASTER CYLINDER

DR-Z400E 2007 (K7) USA (E03) DRZ400E DR Z400E

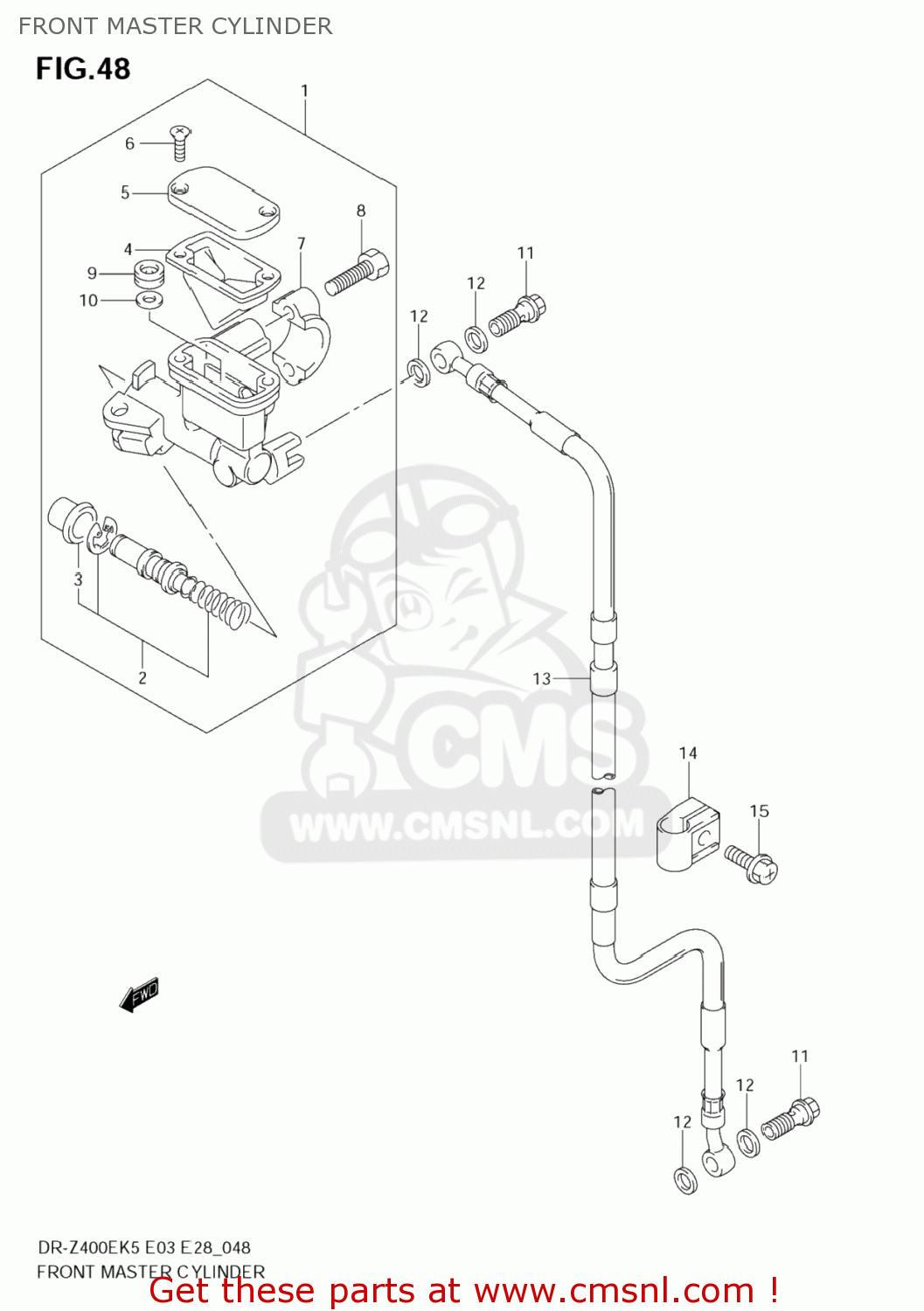

Front master cylinder diagram DR-Z400E 2007 (K7) USA (E03) DRZ400E DR Z400E

prices are in EUR

ref

part #

description

quantity

5960036E10
ref: 1

CYLINDER ASSY,FR MASTER

€ 252.50

5960036E10
ref: 1

CYLINDER ASSY,FR MASTER

€ 252.50

5960036830
ref: 2

PISTON & CUP SET

€ 44.00

5966636E00
ref: 3

BOOT

€ 43.00

5966736E00
ref: 4

DIAPHRAGM

€ 9.00

5966936E10
ref: 5

CAP

€ 15.00

6968949300
ref: 6

SCREW

€ 1.50

5967127C00
ref: 7

HOLDER

€ 9.50

5967527C00
ref: 8

BOLT

€ 2.50

5974836E00
ref: 9

SEPARATOR

€ 5.00

6974436E00
ref: 10

RING

€ 2.00

0936010042
ref: 11
09360-10062

BOLT UNION

€ 5.00

0916110009
ref: 12

WASHER(10X15X1.5)

€ 2.00

5948029F00
ref: 13
59480-29F01

HOSE COMP,FRONT BRAKE

€ 306.50

5924303B01
ref: 14

CLAMP,FR BRAKE

€ 3.50

0214206253
ref: 15
02142-0625A

SCREW

€ 1.50

FRONT MASTER CYLINDER

all assemblies
