FRONT MASTER CYLINDER

DR-Z400S 2005 (K5) USA (E03) DRZ400S DR Z400S

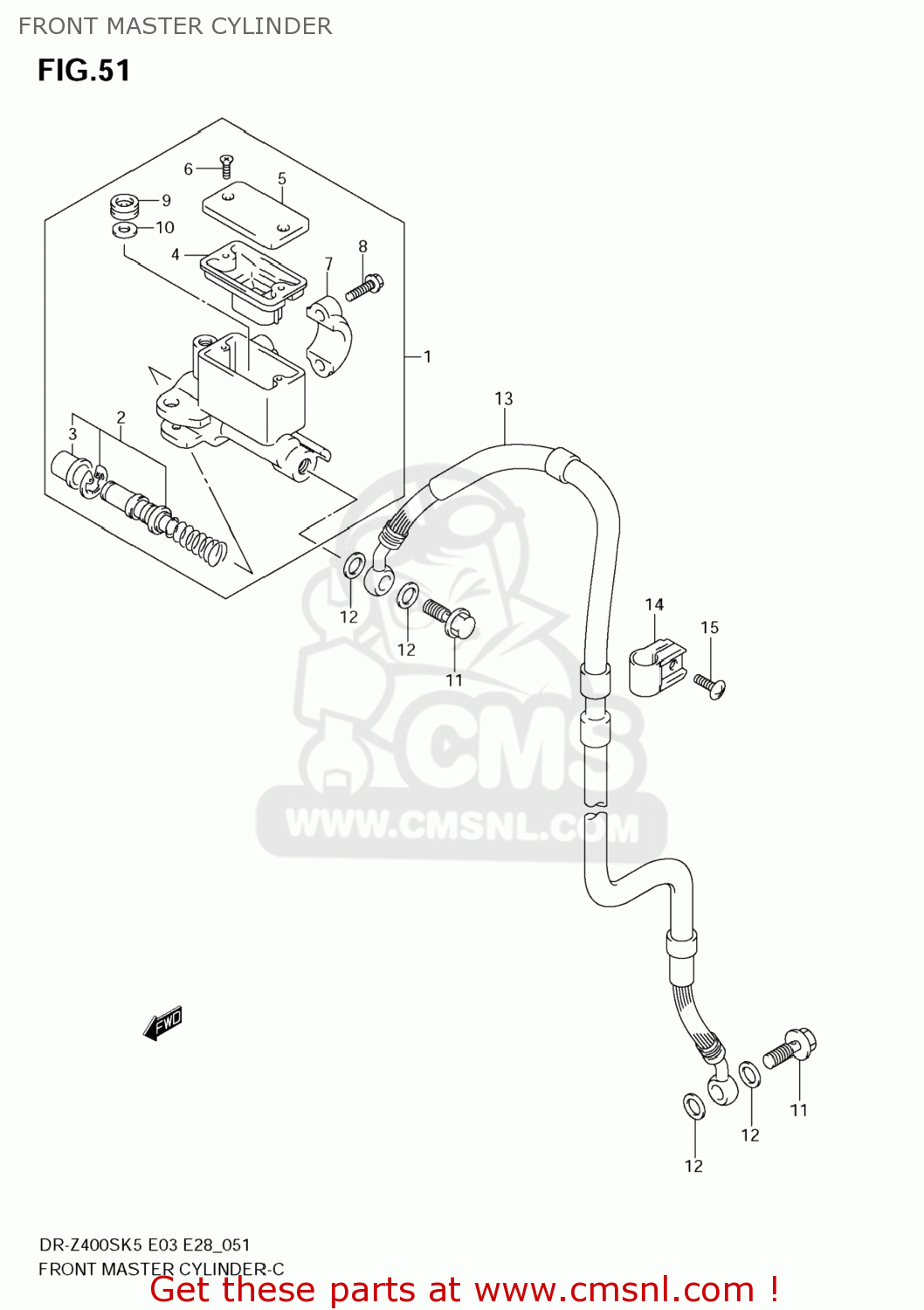

Front master cylinder diagram DR-Z400S 2005 (K5) USA (E03) DRZ400S DR Z400S

prices are in EUR

ref

part #

description

quantity

5960044E30
ref: 1

CYLINDER ASSY,FR MASTER

€ 206.00

5960044E30
ref: 1

CYLINDER ASSY,FR MASTER

€ 206.00

6960038810
ref: 2

PISTON/CUP SET

€ 42.50

5966644300
ref: 3

BOOT

€ 6.00

5966744B00
ref: 4

DIAPHRAGM

€ 8.00

5966903D00
ref: 5

CAP

€ 14.00

0212204127
ref: 6

SCREW

€ 2.00

5967103D00
ref: 7

HOLDER

€ 13.00

5967527C00
ref: 8

BOLT

€ 2.50

5974836E00
ref: 9

SEPARATOR

€ 5.00

6974436E00
ref: 10

RING

€ 2.00

0936010062
ref: 11

BOLT UNION

€ 5.00

0916110009
ref: 12

WASHER(10X15X1.5)

€ 2.00

5948029F11
ref: 13

HOSE,FR BRAKE

€ 128.50

5862107A10
ref: 14
58621-07A20

CLAMP,BRAKE HOSE

€ 3.50

021420625B
ref: 15

SCREW

€ 1.50

FRONT MASTER CYLINDER

all assemblies
