MAGNETO

DR-Z400S 2005 (K5) USA (E03) DRZ400S DR Z400S

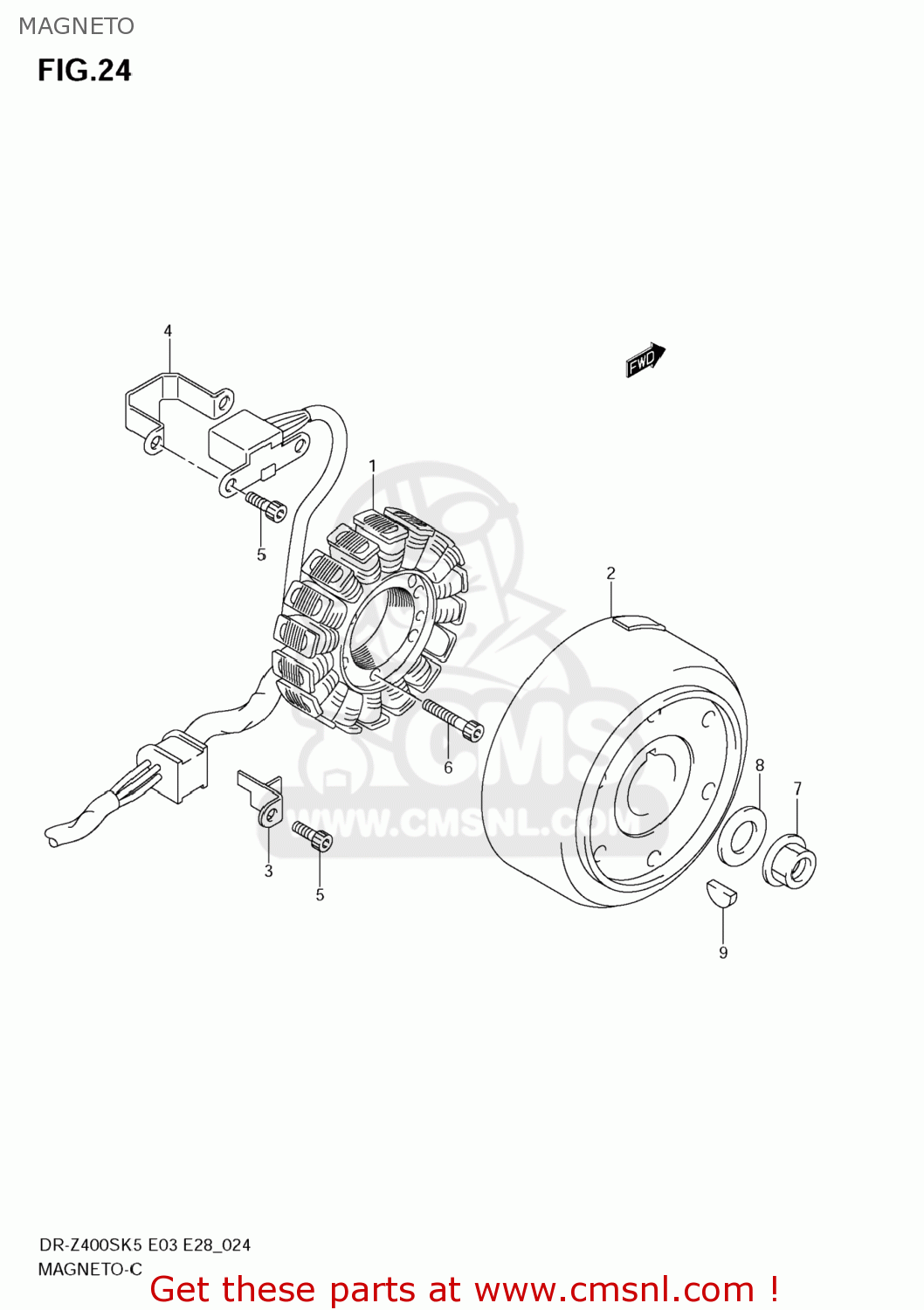

Magneto diagram DR-Z400S 2005 (K5) USA (E03) DRZ400S DR Z400S

MAGNETO DR-Z400S 2005 (K5) USA (E03) DRZ400S DR Z400S

MAGNETO DR-Z400S 2005 (K5) USA (E03) DRZ400S DR Z400S

prices are in EUR

ref

part #

description

quantity

1

3210129F00
ref: 1

STARTER ASSY

€ 523.00

2

3210229F00
ref: 2

ROTOR ASSY

€ 413.00

3

3237113E00
ref: 3

CLAMP,MAGNETO LEAD NO.1

€ 3.00

4

3237114D01
ref: 4

CLAMP,MAGNETO LEAD WIRE

€ 3.50

5

071300512B
ref: 5

BOLT

€ 2.50

6

071300525B
ref: 6

BOLT

€ 2.00

7

0915912055
ref: 7

NUT

€ 3.50

8

0916012051
ref: 8

WASHER(12X27X2)

€ 1.50

9

0942004008
ref: 9

KEY

€ 3.50
