FRAME COVER (DR-Z400SL4 E33)

DR-Z400S 2014 (L4) USA (E03) DRZ400S DR Z400S

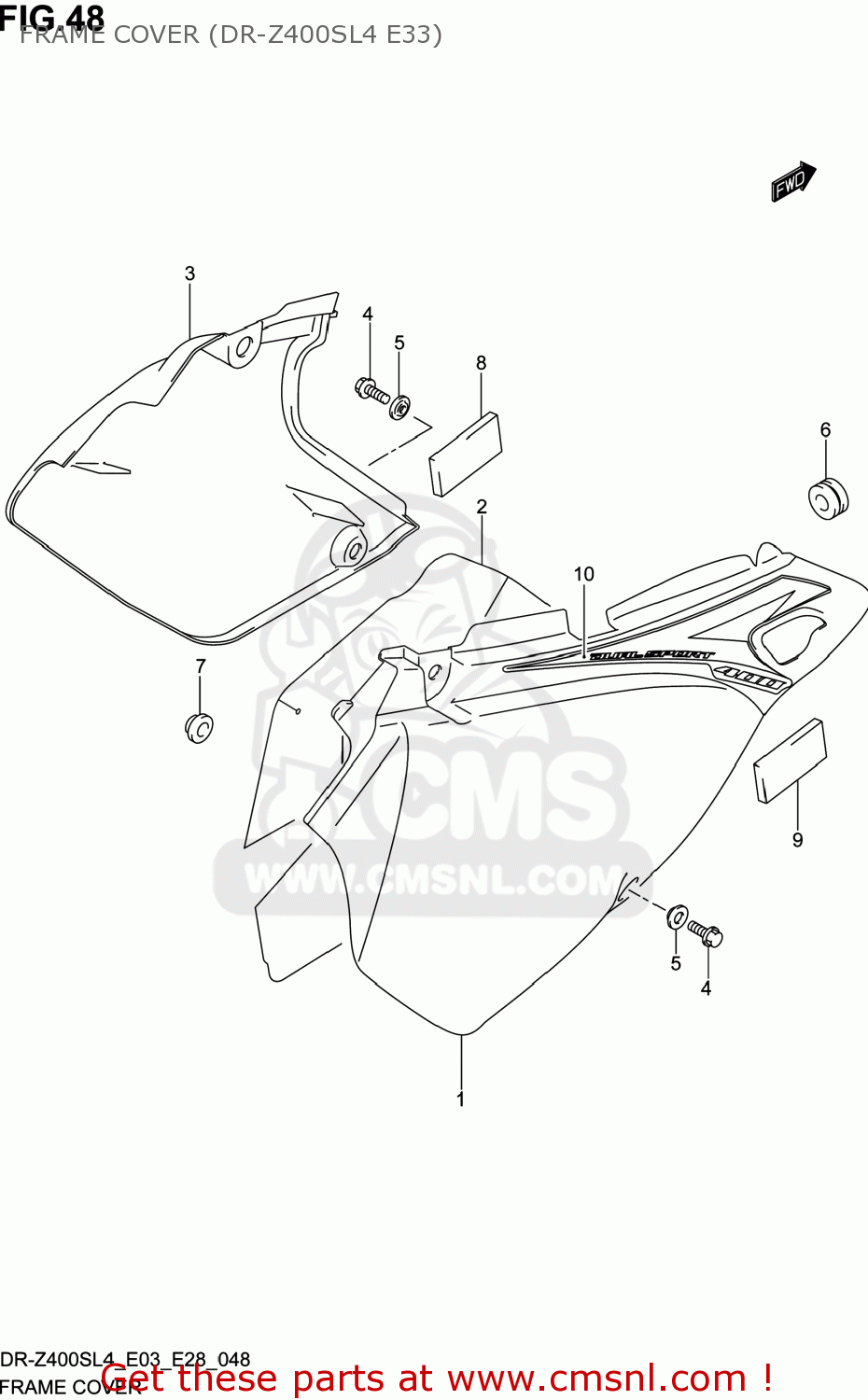

Frame cover (dr-z400sl4 e33) diagram DR-Z400S 2014 (L4) USA (E03) DRZ400S DR Z400S

prices are in EUR

ref

part #

description

quantity

1-1

4711129FC0019
ref: 1-1

COVER,FRAME,R(BLACK)

€ 54.00

1-2

4711129FC030H
ref: 1-2

COVER,FRAME,R(WHITE)

€ 48.00

4716629F00
ref: 2

SHIELD,FRAME COVER,R

€ 37.50

3-1

4721129FC0019
ref: 3-1

COVER,FRAME,L(BLACK)

€ 0.00

3-2

4721129FC030H
ref: 3-2

COVER,FRAME,L(WHITE)

€ 0.00

0910306273
ref: 4

BOLT(6X12)

€ 2.00

0916906031
ref: 5
09169-06041

WASHER

€ 2.00

0932006504
ref: 6

CUSHION

€ 4.00

0932110018
ref: 7

CUSHION

€ 5.00

4716129F00
ref: 8

CUSHION,FRAME COVER,L

€ 3.00

7176265G10
ref: 9

CUSHION

€ 4.50

10-1

6813529FD0HMC
ref: 10-1

TAPE,FRAME COVER,R

€ 15.00

10-1

6813529FD0HMC
ref: 10-1

TAPE,FRAME COVER,R

€ 15.00

10-2

6813529FD0HMD
ref: 10-2

TAPE,FRAME COVER,R

€ 15.00

10-2

6813529FD0HMD
ref: 10-2

TAPE,FRAME COVER,R

€ 15.00

FRAME COVER (DR-Z400SL4 E33)
