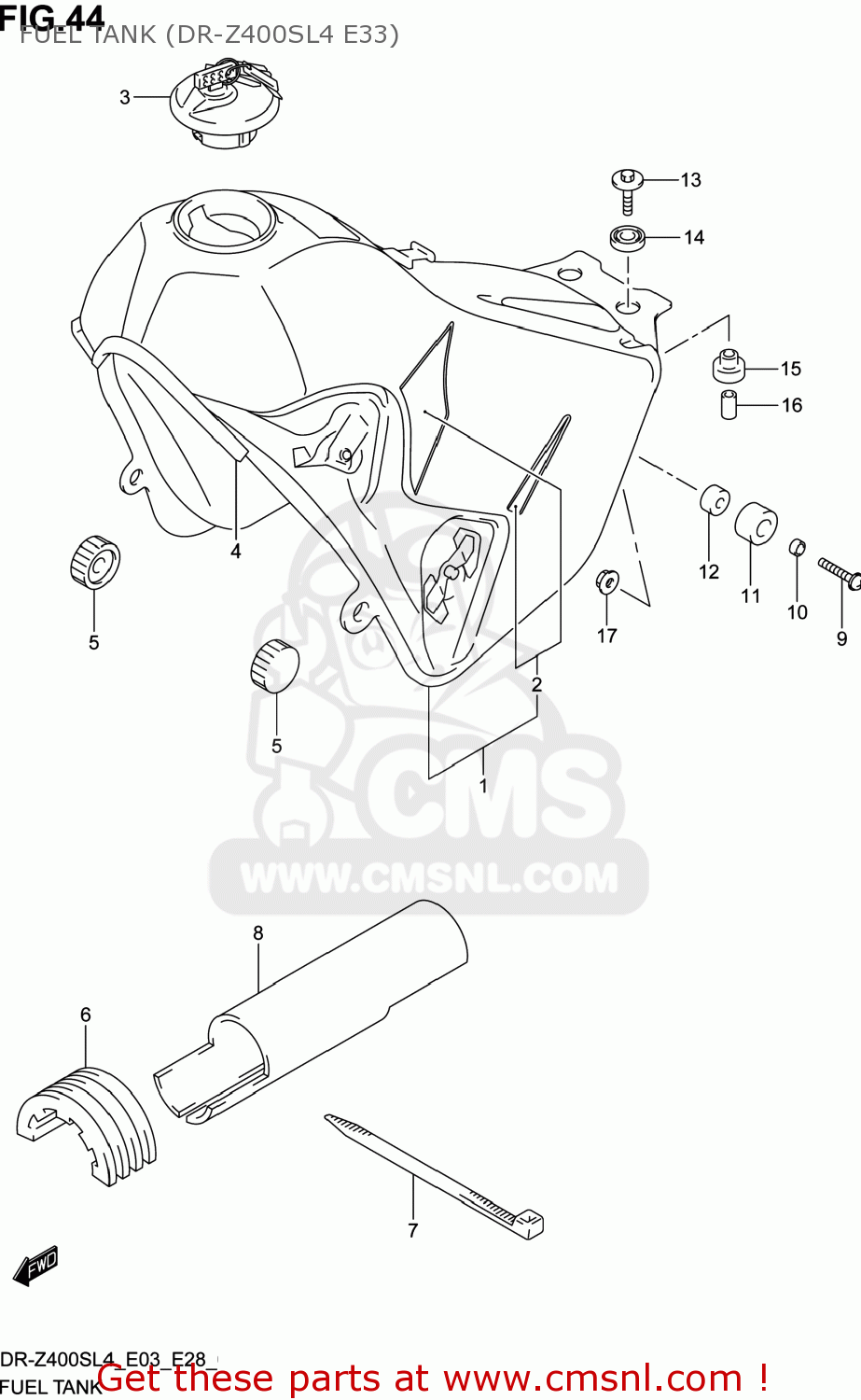

FUEL TANK (DR-Z400SL4 E33)

DR-Z400S 2014 (L4) USA (E03) DRZ400S DR Z400S

Fuel tank (dr-z400sl4 e33) diagram DR-Z400S 2014 (L4) USA (E03) DRZ400S DR Z400S

prices are in EUR

ref

part #

description

quantity

1-1

4920029F403WX
ref: 1-1

TANK ASSY,FUEL(BLACK)

€ 572.00

1-2

4920029F405UX
ref: 1-2

TANK ASSY,FUEL(WHITE)

€ 572.00

2-1

6812029F20HLY
ref: 2-1

TAPE SET,FUEL TANK

€ 19.00

2-2

6812029F20HLZ
ref: 2-2

TAPE SET,FUEL TANK

€ 19.00

4420005820
ref: 3

CAP SET,FUEL TANK

€ 103.50

6824104X50300
ref: 4

MOLDING

€ 6.00

0932910016
ref: 5

CUSHION

€ 3.00

4454129F00
ref: 6

CUSHION,FUEL TANK

€ 21.50

0940730402
ref: 7

CLAMP(L:300)

€ 3.50

4419429F00
ref: 8

SHIELD,FUEL TANK

€ 38.50

021121630B
ref: 9

SCREW

€ 2.00

0918006215
ref: 10

SPACER(6.5X20X9)

€ 5.00

4514914D00
ref: 11

CUSHION

€ 3.00

0918006306
ref: 12

SPACER(6.5X9X5)

€ 2.00

0911606214
ref: 13

BOLT(6X30)

€ 2.00

0932014022
ref: 14

CUSHION

€ 4.00

0932010020
ref: 15

CUSHION

€ 4.00

0918006271
ref: 16

SPACER(6.5X9X18)

€ 2.00

083193106B
ref: 17

NUT

€ 2.50
