Buy Suzuki unknown Parts Online


CRANKCASE

RM-Z250 2006 (K6) USA (E03) RMZ250 RM Z250

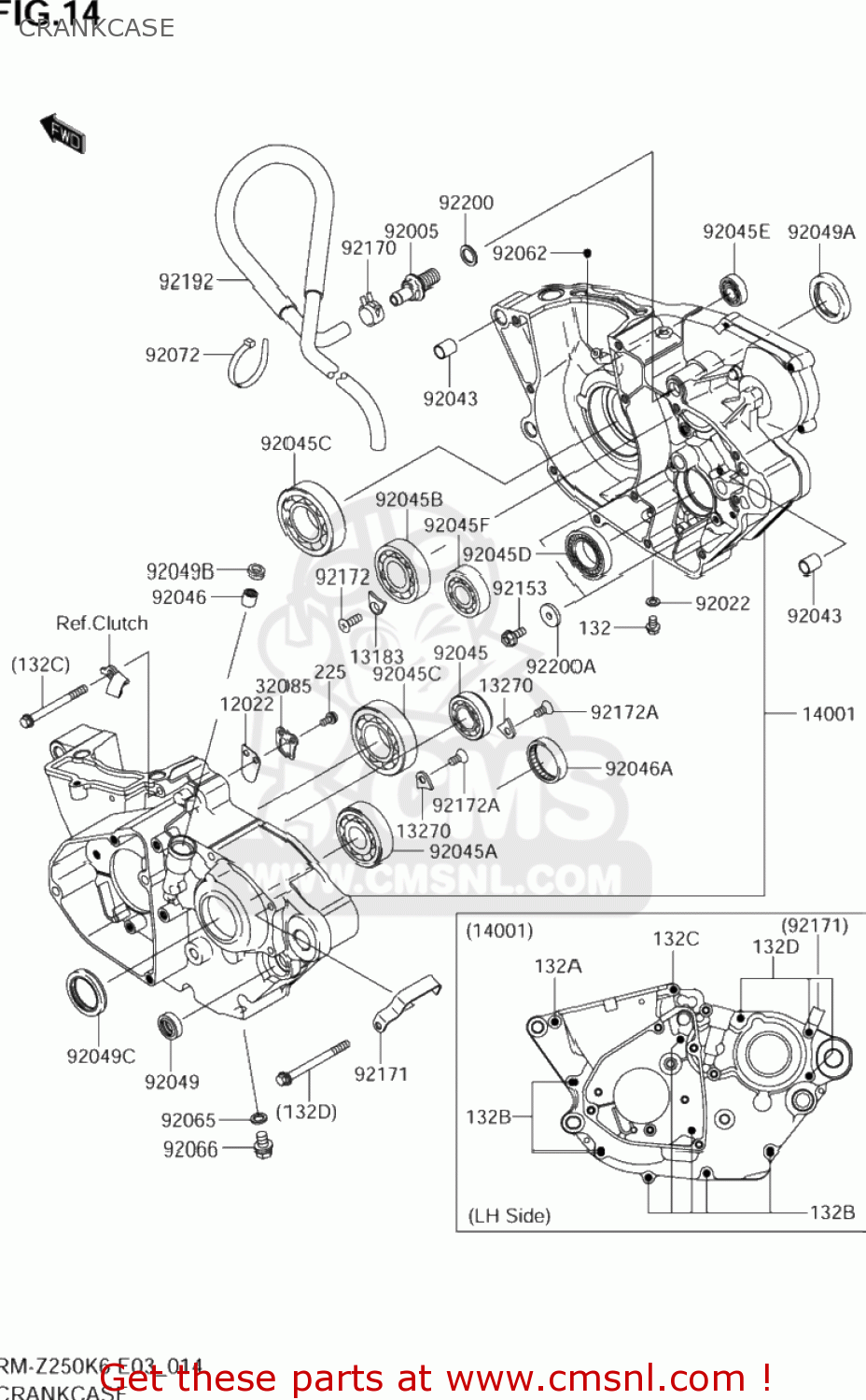

Crankcase diagram RM-Z250 2006 (K6) USA (E03) RMZ250 RM Z250

CRANKCASE RM-Z250 2006 (K6) USA (E03) RMZ250 RM Z250
CRANKCASE RM-Z250 2006 (K6) USA (E03) RMZ250 RM Z250
CRANKCASE RM-Z250 2006 (K6) USA (E03) RMZ250 RM Z250
prices are in EUR
ref
part #
description
quantity
132
KK132G0608
ref: 132
K132B-A0608
BOLT FLANGED,S
€ 1.00
132A
KK132G0640
ref: 132A
BOLT-FLANGED-SMALL,6X40
KK132G0640
€ 1.50
132B
KK132G0660
ref: 132B
K132B-A0660
BOLT FLANGED S
€ 1.50
132C
KK132G0665
ref: 132C
BOLT-FLANGED-SMALL,6X65
€ 2.00
132D
KK132G0670
ref: 132D
BOLT-FLANGED-SMALL,6X70
€ 2.00
225
KK225D0510
ref: 225
SCREW-PAN-WSP-CROS,5X10
€ 1.50
12022
K120220006
ref: 12022
VALVE-REED
€ 7.50
13183
K131831182
ref: 13183
PLATE
€ 3.00
13270
K132701638
ref: 13270
PLATE
€ 4.00
14001
K140010066
ref: 14001
K1400-10077
SET-CRANKCASE
€ 584.50
32085
K320850011
ref: 32085
STOPPER,VALVE-REED
K320850011
€ 4.00
92005
K920050014
ref: 92005
FITTING,BREATHER
K920050014
€ 17.00
92022
KK92022304
ref: 92022
WASHER,6.2X11X1
€ 5.50
92043
K920434009
ref: 92043
PIN,10.1X12X14
K920434009
€ 5.50
92045
K920450013
ref: 92045
BEARING,BALL
K920450013
€ 18.00
92045A
K920450020
ref: 92045A
BEARING-BALL
K920450020
€ 45.50
92045B
K920450051
ref: 92045B
BEARING-BALL
K920450051
€ 29.00
92045C
K920450052
ref: 92045C
BEARING-BALL,CRANKSHAFT MAIN
€ 65.00
92045D
K920451058
ref: 92045D
BEARING-BALL,6905Z
K920451058
€ 37.00
92045E
K920451123
ref: 92045E
BEARING-BALL,#628
€ 24.00
92045F
K920451291
ref: 92045F
BEARING-BALL,TMB203
K920451291
€ 20.50
92046
K920461010
ref: 92046
K9204-60034
BEARING-NEEDLE
K920461010
€ 10.00
92046A
K920461221
ref: 92046A
BEARING-NEEDLE,7E-HKS33X38X8
€ 33.00
92049
K920490015
ref: 92049
SEAL-OIL,SD2 14 22 6-1 NS
K920490015
€ 9.00
92049A
K920490030
ref: 92049A
SEAL,OIL
K920490030
€ 16.00
92049B
K920491262
ref: 92049B
SEAL-OIL
€ 5.50
92049C
K920491478
ref: 92049C
SEAL-OIL
K920491478
€ 7.00
92062
K920621086
ref: 92062
NOZZLE,5X6,SILVER
€ 2.50
92065
KK92065058
ref: 92065
GASKET,10.5X16X1 (NAS)
KK92065058
€ 3.50
92066
K920661437
ref: 92066
PLUG,DRAIN
K920661437
€ 5.50
92072
K920723874
ref: 92072
BAND
€ 2.50
92153
K921530878
ref: 92153
BOLT,6X14
K921530878
€ 1.00
92170
K921701938
ref: 92170
CLAMP
K921701938
€ 2.50
92171
K921710579
ref: 92171
CLAMP
K921710579
€ 3.50
92172
K921720087
ref: 92172
SCREW,6X14
€ 2.50
92172A
K921720109
ref: 92172A
SCREW,6X8
K921720109
€ 1.00
92192
K921920102
ref: 92192
TUBE
K921920102
€ 20.50
92200
K922000087
ref: 92200
WASHER,12.5X18X1.6
€ 1.50
92200A
K922000120
ref: 92200A
WASHER,6X20X3.2
K922000120
€ 1.00
