Buy Suzuki unknown Parts Online


HANDLEBAR

RM-Z250 2006 (K6) USA (E03) RMZ250 RM Z250

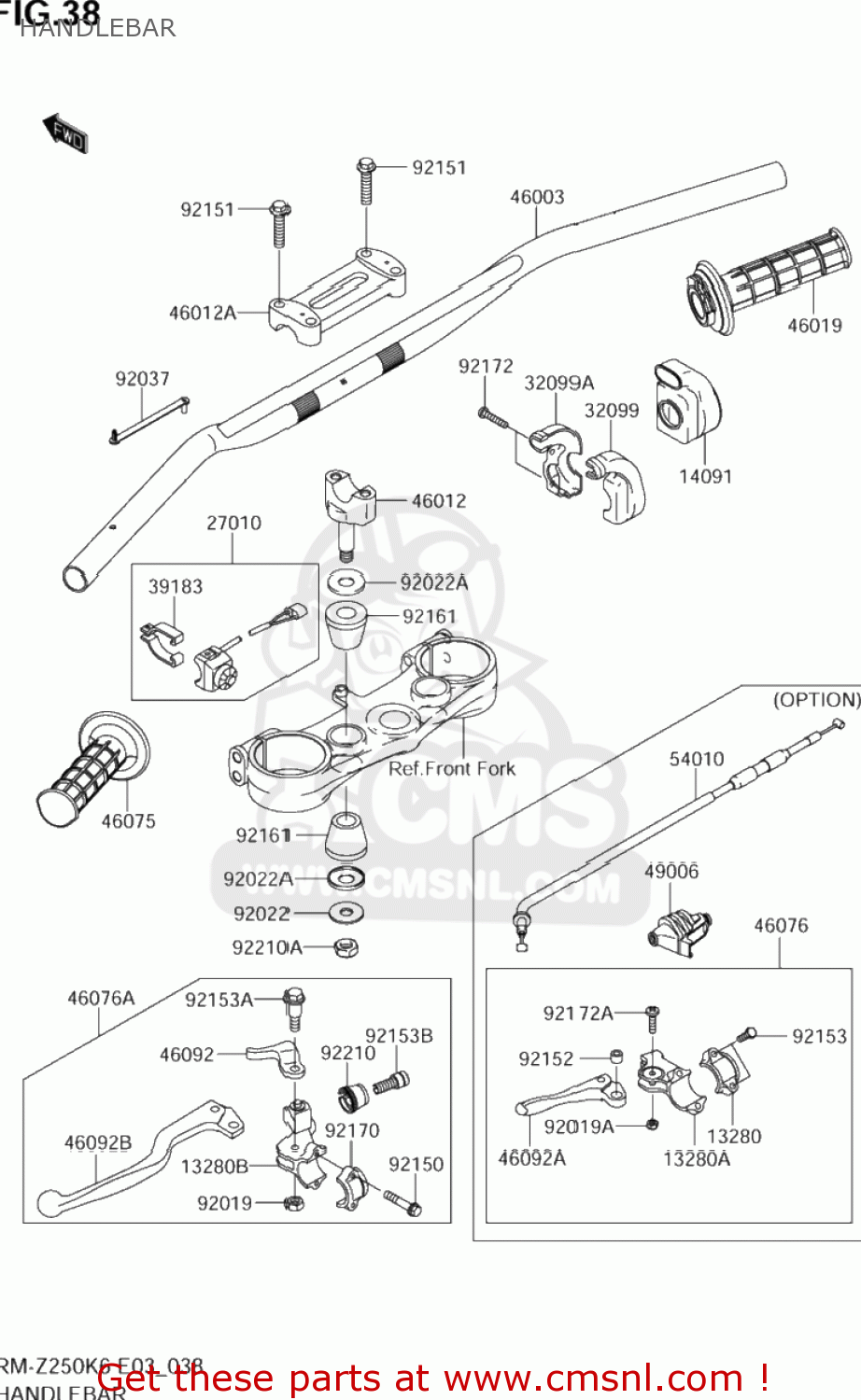

Handlebar diagram RM-Z250 2006 (K6) USA (E03) RMZ250 RM Z250

HANDLEBAR RM-Z250 2006 (K6) USA (E03) RMZ250 RM Z250
HANDLEBAR RM-Z250 2006 (K6) USA (E03) RMZ250 RM Z250
HANDLEBAR RM-Z250 2006 (K6) USA (E03) RMZ250 RM Z250
prices are in EUR
ref
part #
description
quantity
13280
K132800055
ref: 13280
HOLDER
€ 14.00
13280A
K132800056
ref: 13280A
HOLDER
K132800056
€ 38.50
13280B
K132800097
ref: 13280B
K1328-05001
HOLDER,CLUTCH
€ 40.50
14091
K140910182
ref: 14091
COVER,THROTTLE CASE
K140910182
€ 8.50
27010
K270100022
ref: 27010
SWITCH,ENGINE STOP
K270100022
€ 42.50
32099
K320990002
ref: 32099
CASE,THROTTLE,LWR
K320990002
€ 24.00
32099A
K320990003
ref: 32099A
CASE,THROTTLE,UPP
K320990003
€ 24.00
39183
K391831059
ref: 39183
BAND-ASSY,ENGINE STOP SWITCH
K391831059
€ 11.50
46003
KK460030065CE
ref: 46003
HANDLE,SILVER
KK460030065CE
€ 46.50
46012
KK460120013X3
ref: 46012
HOLDER-HANDLE,LWR
KK460120013X3
€ 27.00
46012A
KK460120017X3
ref: 46012A
HOLDER HANDLE,UPP,SILVER
KK460120017X3
€ 50.50
46019
K460190008
ref: 46019
K4601-90005
GRIP-ASSY,THRO
€ 29.00
46075
K460751213
ref: 46075
GRIP,LH
K460751213
€ 17.00
46076
K460760009
ref: 46076
LEVER ASSY GRIP,MANUAL DECOMP
K460760009
€ 30.00
46076A
K460760016
ref: 46076A
K4607-60034
LEVER-ASSY-GRI
€ 65.00
46092
K460920001
ref: 46092
LEVER-GRIP,STARTER
K460920001
€ 7.00
46092A
K460920004
ref: 46092A
LEVER GRIP
K460920004
€ 8.50
46092B
K460920007
ref: 46092B
LEVER-GRIP,CLUTCH
K460920007
€ 17.50
49006
K490060011
ref: 49006
BOOT
K490060011
€ 8.00
54010
K540100019
ref: 54010
CABLE
K540100019
€ 31.00
92019
KK92019008
ref: 92019
NUT,LOCK,6MM
KK92019008
€ 3.50
92019A
KK92019014
ref: 92019A
NUT,LOCK,5MM
€ 2.50
92022
K920221088
ref: 92022
WASHER,10.2X28X2
K920221088
€ 3.00
92022A
K920221737
ref: 92022A
WASHER
K920221737
€ 3.50
92037
K920371290
ref: 92037
CLAMP,SPEED,L=43
€ 3.50
92150
K921501474
ref: 92150
BOLT
K921501474
€ 3.00
92151
K921511537
ref: 92151
BOLT,FLANGED,8X35
€ 3.00
92152
K921520135
ref: 92152
COLLAR
€ 1.50
92153
K921530617
ref: 92153
BOLT
€ 3.00
92153A
K921530772
ref: 92153A
BOLT,6MM
K921530772
€ 5.00
92153B
K921530773
ref: 92153B
BOLT,BOLT ADJUSTING
K921530773
€ 9.00
92161
K921610113
ref: 92161
DAMPER,HANDLE HOLDER
K921610113
€ 4.50
92170
K921701226
ref: 92170
CLAMP,LEVER HOLDER
€ 22.50
92172
K921720069
ref: 92172
SCREW,5X20
K921720069
€ 2.50
92172A
K921720125
ref: 92172A
SCREW
€ 3.50
92210
K922100167
ref: 92210
NUT,BOLT WIRE ADJUSTING
K922100167
€ 25.50
92210A
K922101184
ref: 92210A
NUT,LOCK,10MM
K922101184
€ 5.00
